Toyota Corolla (asia/india) ZZE122 WIRING & CLAMP

ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(0103- )

Click highlighted areas on diagram

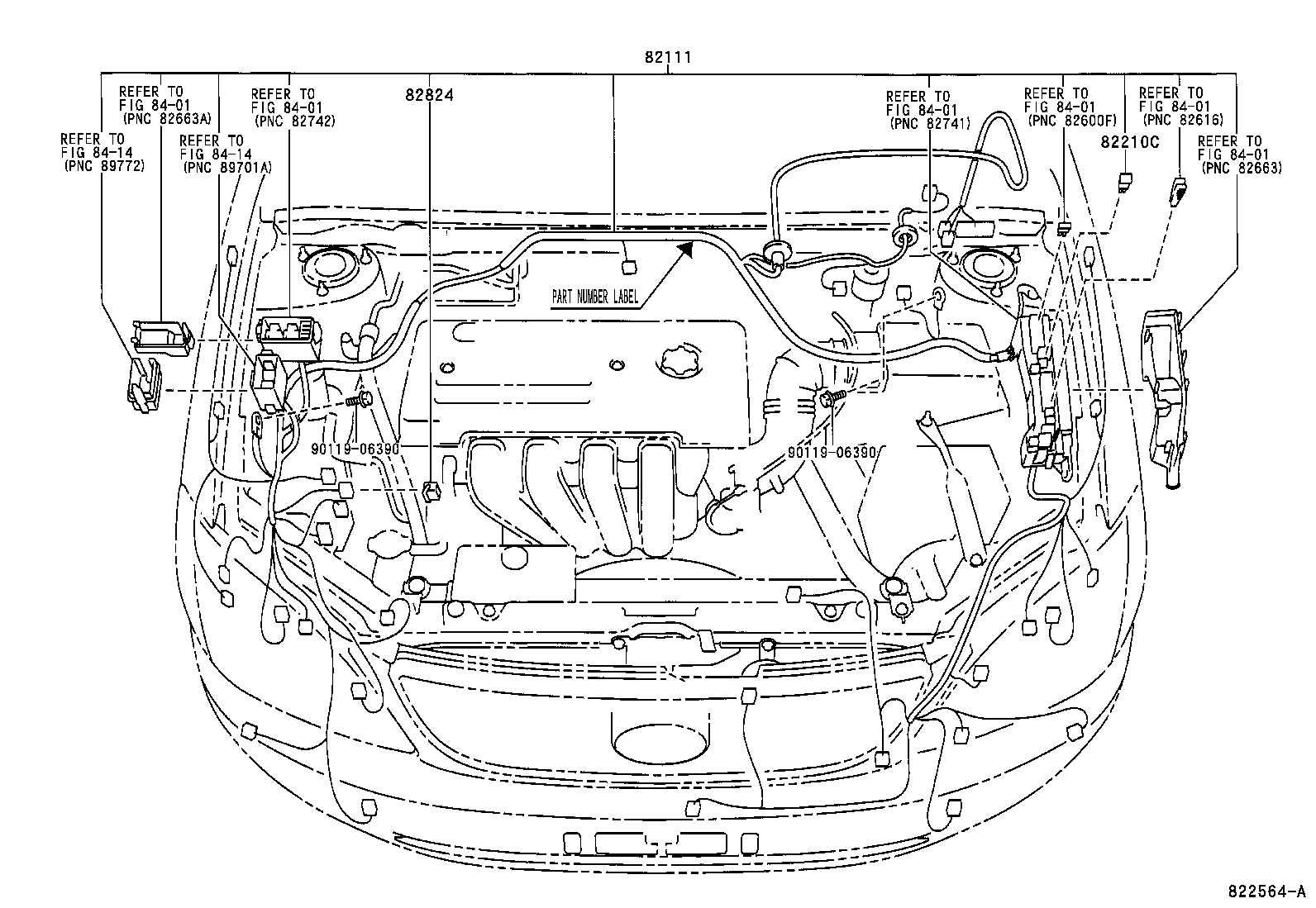

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0Z101	ZZE122..(18E,18G)..IND PART NUMBER LABEL=82111-0Z101	04/2004 - 08/2005	1
82111-0Z100	ZZE122..(18E,18G)..IND PART NUMBER LABEL=82111-0Z100	01/2003 - 04/2004	1
82115-02E60	ZZE122..(18E,18G)..IND PART NUMBER LABEL=82115-02E60	08/2005 - 05/2006	1
82111-02S60	ZZE122..IND PART NUMBER LABEL=82111-02S60	08/2005 - 05/2006	1
82115-02E61	ZZE122..IND PART NUMBER LABEL=82115-02E61	05/2006 - 12/2999	1
82210C - FUSIBLE LINK
90982-08280	ZZE122..IND 30A,TERM.:FEMALE,PNK,YAZAKI	03/2001 - 08/2005	4
90982-08284	ZZE122..IND 40A,TERM.:FEMALE,GRN,TAIHEIYO	03/2001 - 08/2005	1
90982-08281	ZZE122..IND 40A,TERM.:FEMALE,GRN,YAZAKI	03/2001 - 08/2005	2
90982-08283	ZZE122..IND 30A,TERM.:FEMALE,PNK,TAIHEIYO	03/2001 - 08/2005	2
90982-08246	ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL;ZZE122..IDN,IND,PHL,TAIW,TH,VN 100A,TERM.:MALE,BLUE	10/2003 - 12/2999	1
90982-08246	ZZE122..IND 100A,TERM.:MALE,BLUE	03/2001 - 08/2005	1
90982-08280	ZZE122..IND 30A,TERM.:FEMALE,PNK,YAZAKI	08/2005 - 12/2999	1
90982-08283	ZZE122..IND 30A,TERM.:FEMALE,PNK,TAIHEIYOU	08/2005 - 12/2999	1
90982-08281	ZZE122..IND 40A,TERM.:FEMALE,GRN,YAZAKI	08/2005 - 12/2999	1
90982-08284	ZZE122..IND 40A,TERM.:FEMALE,GRN,TAIHEIYOU	08/2005 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-12300	ZZE122..IND,VN;ZZE121..ATM..MA	10/2003 - 12/2999	1
82824-12300	ZZE122..IND	03/2001 - 08/2005	1
Common parts
90119-06390
Linked diagrams
8401
8414

ILLUST NO. 2 OF 8(0103- )ZZE12#

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0Z020	ZZE122..18G..IND	01/2003 - 04/2004	1
82121-0Z021	ZZE122..18G..IND	04/2004 - 08/2005	1
82121-0Z021	ZZE122..18G..IND	08/2005 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-02160	ZZE122..18G..(IND,MA)	10/2003 - 12/2999	1
82123-02160	ZZE122..18G..IND	03/2001 - 08/2005	1
82124 - WIRE, ENGINE, NO.4
82124-32050	ZZE122..IND	03/2001 - 08/2005	1
82124-32050	ZZE121..ATM..MA;ZZE122..IND,MA,VN	10/2003 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-12090	ZZE122..IND;ZZE121..16E..TAIW;ZZE121..MTM..(16E,16J)..TH	03/2001 - 08/2005	2
82823-12090	ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL)	10/2003 - 08/2008	2
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL)	10/2003 - 08/2008	1
82823-22050	ZZE12#..IDN,IND,MA,PHL,TAIW,TH	03/2001 - 08/2005	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070	ZZE122..IND	03/2001 - 08/2005	1
82991-12070	ZZE121..ATM..MA;ZZE122..IND,MA,VN	10/2003 - 12/2999	1
Common parts
90105-08096
90105-10122
90116-06127
90119-06390
90119-T0003
91635-G0616
91643-80614
94150-80640

ILLUST NO. 3 OF 8(0103- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-0Z171	ZZE122..18G..IND PART NUMBER LABEL=82141-0Z171	04/2004 - 08/2005	1
82141-0Z170	ZZE122..18G..IND PART NUMBER LABEL=82141-0Z170	01/2003 - 04/2004	1
82146-02D90	ZZE122..18G..IND PART NUMBER LABEL=82146-02D90	08/2005 - 05/2006	1
82146-02D91	ZZE122..18G..IND PART NUMBER LABEL=82146-02D91	05/2006 - 12/2999	1
82146-02S40	ZZE122..18G..IND PART NUMBER LABEL=82146-02S40	08/2005 - 12/2999	1
82144 - WIRE, INSTRUMENT PANEL, NO.4
82144-02010	ZZE122..(18E,18G)..IND	10/2003 - 12/2999	1
82210C - FUSIBLE LINK
90982-08280	ZZE122..IND 30A,TERM.:FEMALE,PNK,YAZAKI	03/2001 - 08/2005	4
90982-08284	ZZE122..IND 40A,TERM.:FEMALE,GRN,TAIHEIYO	03/2001 - 08/2005	1
90982-08281	ZZE122..IND 40A,TERM.:FEMALE,GRN,YAZAKI	03/2001 - 08/2005	2
90982-08283	ZZE122..IND 30A,TERM.:FEMALE,PNK,TAIHEIYO	03/2001 - 08/2005	2
90982-08246	ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL;ZZE122..IDN,IND,PHL,TAIW,TH,VN 100A,TERM.:MALE,BLUE	10/2003 - 12/2999	1
90982-08246	ZZE122..IND 100A,TERM.:MALE,BLUE	03/2001 - 08/2005	1
90982-08280	ZZE122..IND 30A,TERM.:FEMALE,PNK,YAZAKI	08/2005 - 12/2999	1
90982-08283	ZZE122..IND 30A,TERM.:FEMALE,PNK,TAIHEIYOU	08/2005 - 12/2999	1
90982-08281	ZZE122..IND 40A,TERM.:FEMALE,GRN,YAZAKI	08/2005 - 12/2999	1
90982-08284	ZZE122..IND 40A,TERM.:FEMALE,GRN,TAIHEIYOU	08/2005 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-12240	ZZE122..IND,MA;ZZE121..ATM..MA	11/2003 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-12250	ZZE122..IND	01/2003 - 08/2005	2
82666-12250	ZZE122..IND,MA;ZZE121..ATM..MA	11/2003 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-02070	ZZE121..ATM..MA;ZZE122..IND,MA,VN	10/2003 - 12/2999	2
82666C - HOLDER, CONNECTOR NO.4
82666-02070	ZZE121..ATM..MA;ZZE122..IND,MA,VN	10/2003 - 12/2999	2
82666D - HOLDER, CONNECTOR NO.5
82666-12290	ZZE122..IND,MA;ZZE121..ATM..MA	11/2003 - 12/2999	1
82666-12290	ZZE122..IND	01/2003 - 08/2005	1
82666E - HOLDER, CONNECTOR NO.6
82666-02110	ZZE122..IND,MA;ZZE121..ATM..MA	11/2003 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-02210	ZZE122..IND (L)	03/2001 - 08/2005	2
82817-1A761	ZZE121..ATM..MA;ZZE122..IND,MA,VN (J),RH	10/2003 - 12/2999	1
82817-02210	ZZE121..ATM..MA;ZZE122..IND,MA,VN (L)	10/2003 - 12/2999	2
82817-1A830	ZZE121..ATM..MA;ZZE122..IND,MA,VN (J),LH	10/2003 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-02210	ZZE122..IND (L)	03/2001 - 08/2005	2
82817-1A761	ZZE121..ATM..MA;ZZE122..IND,MA,VN (J),RH	10/2003 - 12/2999	1
82817-02210	ZZE121..ATM..MA;ZZE122..IND,MA,VN (L)	10/2003 - 12/2999	2
82817-1A830	ZZE121..ATM..MA;ZZE122..IND,MA,VN (J),LH	10/2003 - 12/2999	1
Common parts
90119-06390
90159-50295
90159-70003
Linked diagrams
8121
8401

ILLUST NO. 4 OF 8(0103- )

Click highlighted areas on diagram

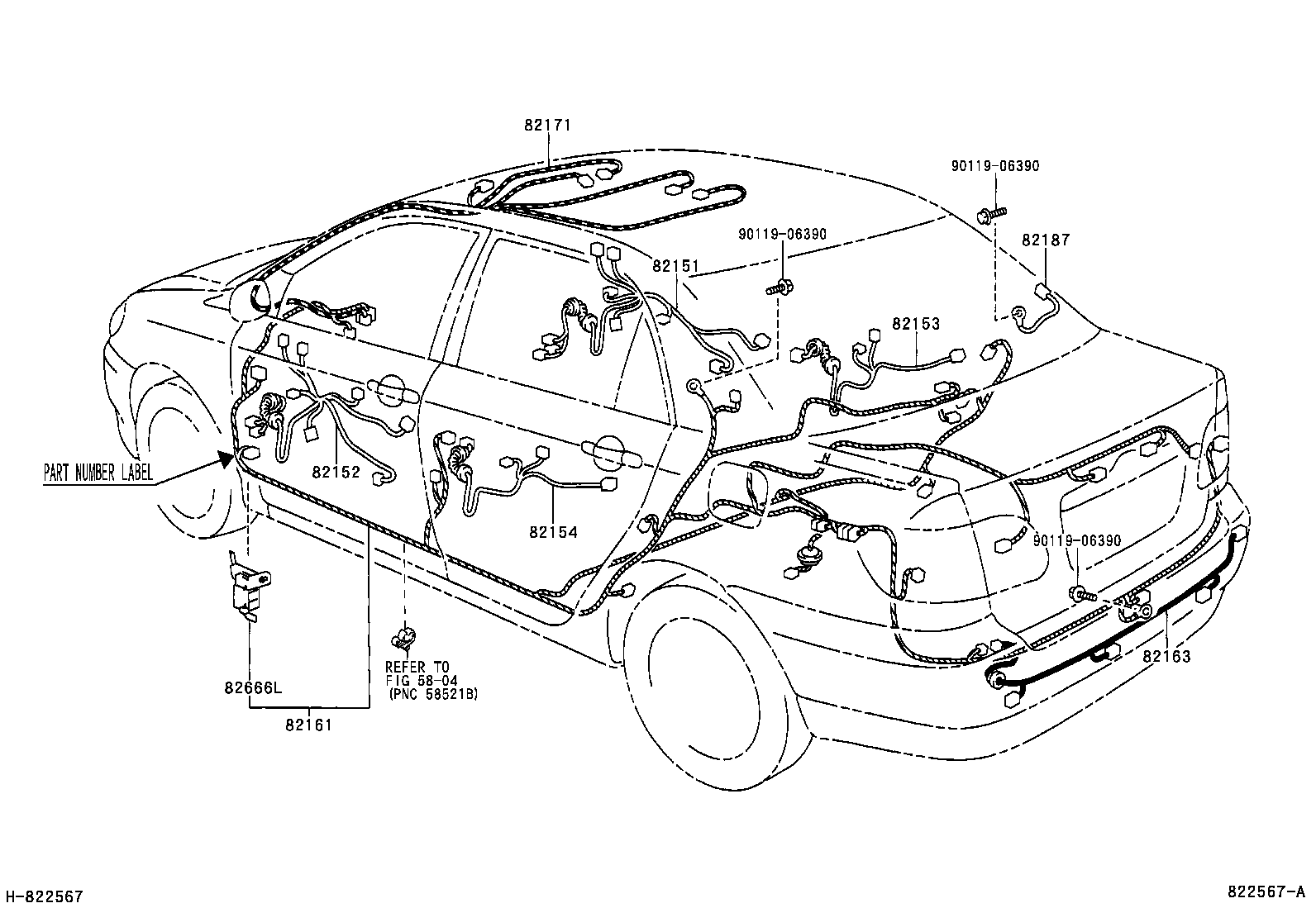

DOOR,ROOF & FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0Z100	ZZE122..(18E,18G)..IND	08/2005 - 12/2999	1
82151-0Z070	ZZE122..(18E,18G)..IND	01/2003 - 08/2005	1
82152 - WIRE, FRONT DOOR, LH
82152-0Z070	ZZE122..(18E,18G)..IND	01/2003 - 08/2005	1
82152-0Z100	ZZE122..(18E,18G)..IND	08/2005 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-02340	ZZE122..IND	01/2003 - 08/2005	1
82153-02340	ZZE122..IND	08/2005 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82153-02340	ZZE122..IND	01/2003 - 08/2005	1
82153-02340	ZZE122..IND	08/2005 - 12/2999	1
82161 - WIRE, FLOOR
82161-0Z121	ZZE122..IND PART NUMBER LABEL=82161-0Z121	04/2004 - 08/2005	1
82161-0Z120	ZZE122..IND PART NUMBER LABEL=82161-0Z120	01/2003 - 04/2004	1
82161-02N00	ZZE122..IND PART NUMBER LABEL=82161-02N00	08/2005 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-02560	ZZE122..(18E,18G)..IND	01/2003 - 08/2005	1
82171-02C00	ZZE122..(18E,18G)..IND	08/2005 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-02090	ZZE122..IND	03/2001 - 08/2005	1
82187-02090	ZZE121..ATM..MA;ZZE122..IND,MA,VN	10/2003 - 12/2999	1
82666L - HOLDER, CONNECTOR NO.9
82666-02120	ZZE121..ATM..MA;ZZE122..IND,MA,VN	10/2003 - 12/2999	1
Common parts
90119-06390
Linked diagrams
5804

ILLUST NO. 6 OF 8(0103- )

Click highlighted areas on diagram

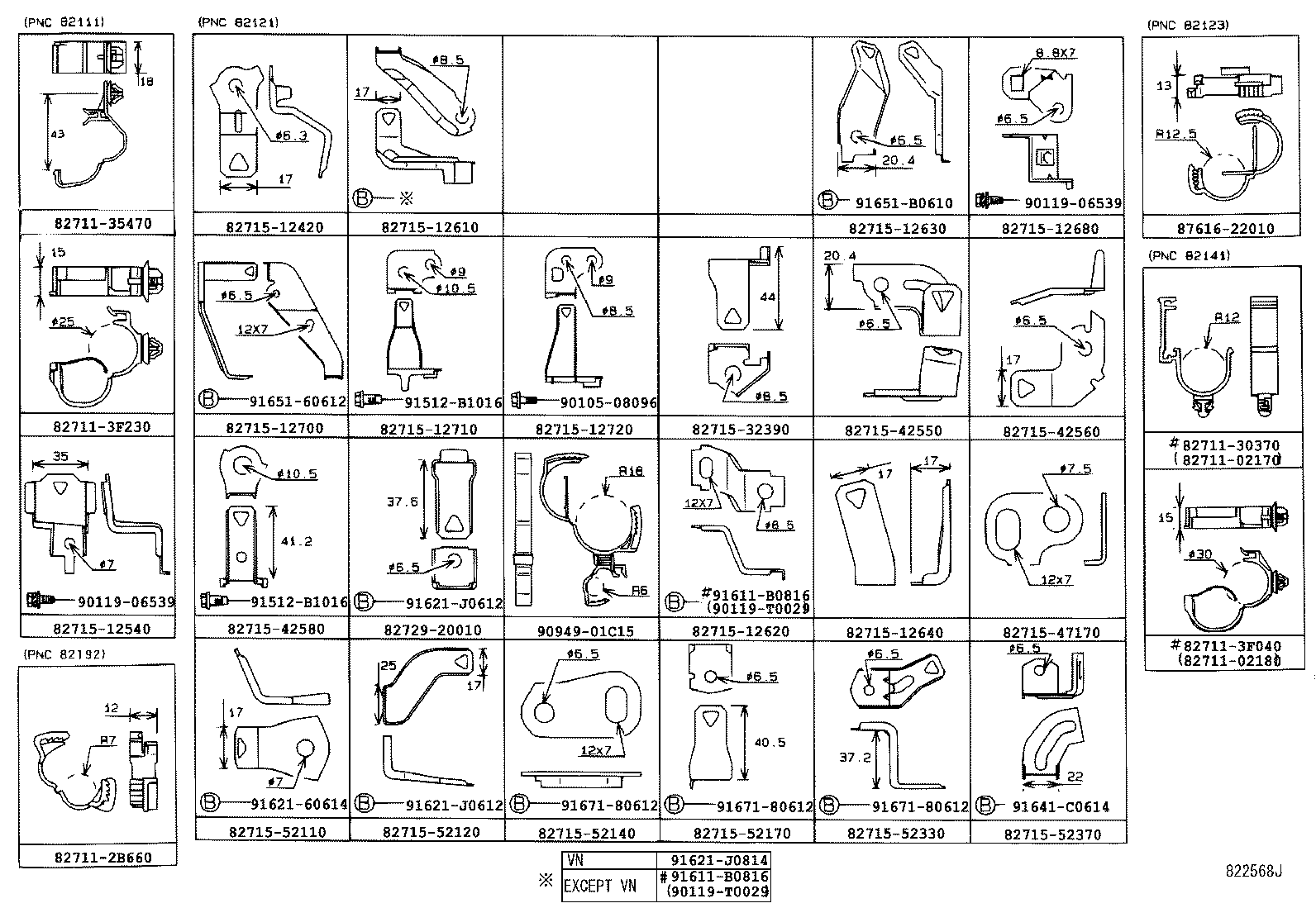

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-02170
82711-02180
82711-2B660
82711-30370
82711-35470
82711-3F040
82711-3F230
82715-12420
82715-12540
82715-12610
82715-12620
82715-12630
82715-12640
82715-12680
82715-12700
82715-12710
82715-12720
82715-32390
82715-42550
82715-42560
82715-42580
82715-47170
82715-52110
82715-52120
82715-52140
82715-52170
82715-52330
82715-52370
82729-20010
87616-22010
90105-08096
90119-06539
90119-T0029
90949-01C15
91512-B1016
91611-B0816
91621-60614
91621-J0612
91621-J0814
91641-C0614
91651-60612
91651-B0610
91671-80612

ILLUST NO. 7 OF 8(0103- )

Click highlighted areas on diagram

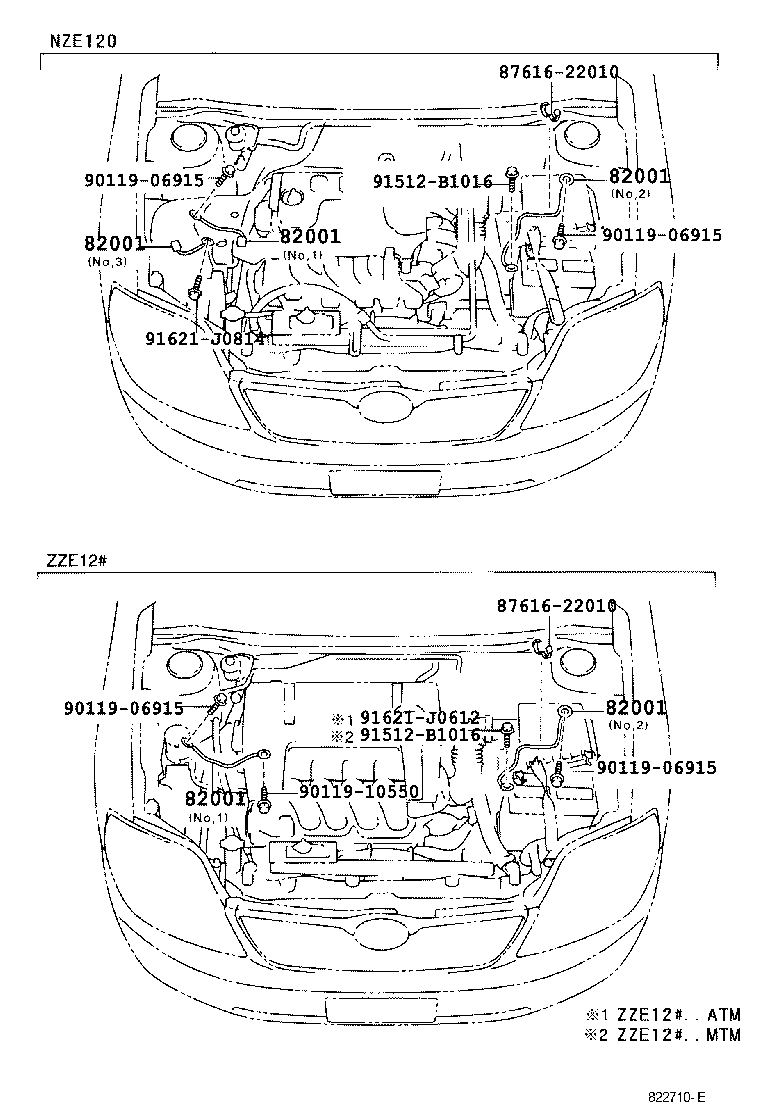

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07109	ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW NO.1	03/2001 - 08/2005	1
90980-07411	ZZE122..18G..IND NO.2	01/2003 - 08/2005	1
90980-07181	ZZE12#..ATM..(IND,MA) NO.2	10/2003 - 12/2999	1
90980-07109	ZZE121..ATM..MA;ZZE122..IND,MA,VN NO.1	10/2003 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07109	ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW NO.1	03/2001 - 08/2005	1
90980-07411	ZZE122..18G..IND NO.2	01/2003 - 08/2005	1
90980-07181	ZZE12#..ATM..(IND,MA) NO.2	10/2003 - 12/2999	1
90980-07109	ZZE121..ATM..MA;ZZE122..IND,MA,VN NO.1	10/2003 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07109	ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW NO.1	03/2001 - 08/2005	1
90980-07411	ZZE122..18G..IND NO.2	01/2003 - 08/2005	1
90980-07181	ZZE12#..ATM..(IND,MA) NO.2	10/2003 - 12/2999	1
90980-07109	ZZE121..ATM..MA;ZZE122..IND,MA,VN NO.1	10/2003 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07109	ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW NO.1	03/2001 - 08/2005	1
90980-07411	ZZE122..18G..IND NO.2	01/2003 - 08/2005	1
90980-07181	ZZE12#..ATM..(IND,MA) NO.2	10/2003 - 12/2999	1
90980-07109	ZZE121..ATM..MA;ZZE122..IND,MA,VN NO.1	10/2003 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07109	ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW NO.1	03/2001 - 08/2005	1
90980-07411	ZZE122..18G..IND NO.2	01/2003 - 08/2005	1
90980-07181	ZZE12#..ATM..(IND,MA) NO.2	10/2003 - 12/2999	1
90980-07109	ZZE121..ATM..MA;ZZE122..IND,MA,VN NO.1	10/2003 - 12/2999	1
Common parts
87616-22010
90119-06915
90119-10550
91512-B1016
91621-J0612
91621-J0814

ILLUST NO. 8 OF 8(0103- )

Click highlighted areas on diagram

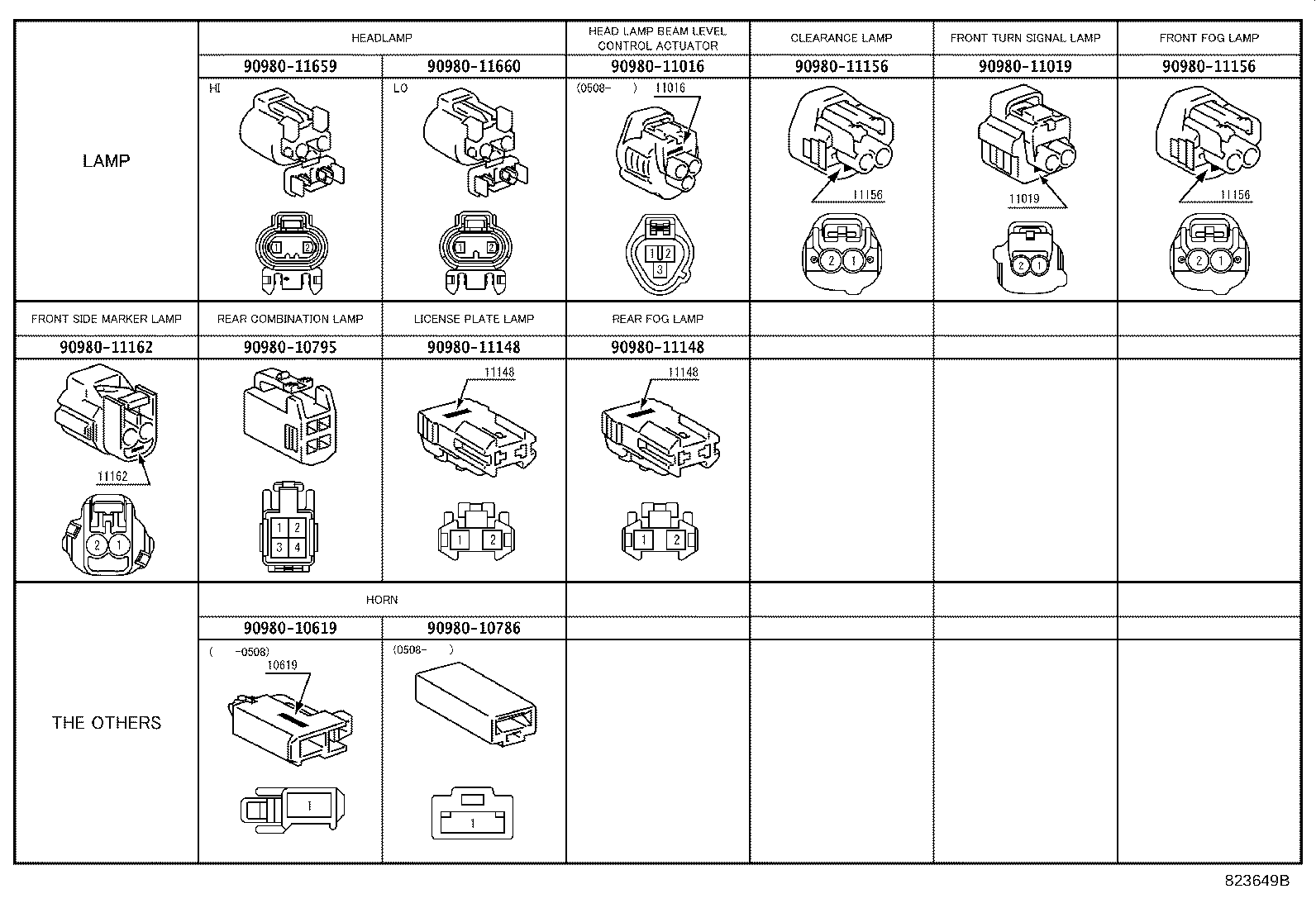

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10786
90980-10795
90980-11016
90980-11019
90980-11148
90980-11156
90980-11162
90980-11659
90980-11660

ZZE122R-GEPNKX (2003)

ILLUST NO. 1 OF 8(0103- )

ILLUST NO. 2 OF 8(0103- )ZZE12#

ILLUST NO. 3 OF 8(0103- )RHD

ILLUST NO. 4 OF 8(0103- )

ILLUST NO. 6 OF 8(0103- )

ILLUST NO. 7 OF 8(0103- )

ILLUST NO. 8 OF 8(0103- )

Part Price Details
