ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )

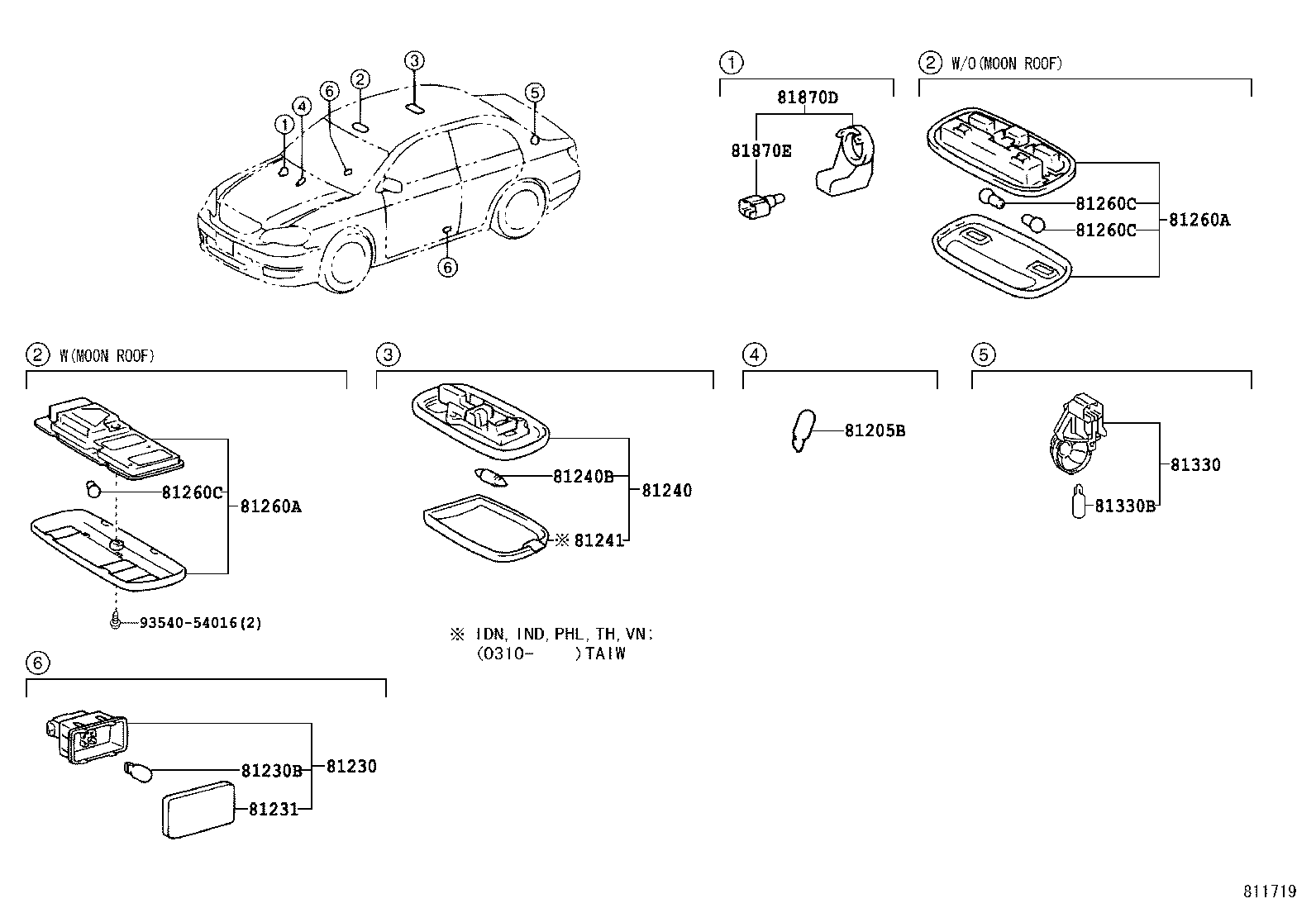

Click highlighted areas on diagram

diagram 81205B 81230 81230B 81231 81240 81240B 81241 81260A 81260A 81260C 81260C 81260C 81330 81330B 81870D 81870E 9354054016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

NZE120,ZZE12#

12V 1.2W W/O SOCKET

 1
90981-11018

ZZE121..ATM..MA;ZZE122..IND,MA,VN

12V 1.2W W/O SOCKET

 1
81230 - LAMP ASSY, COURTESY
81230-02030

ZZE122..IND

 2
81230B - BULB(FOR COURTESY LAMP)
90981-11020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

12V 3.8W

 2
81231 - LENS, COURTESY LAMP
81231-02030

ZZE122..IND

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-12070A0

ZZE122..IND

IVORY,TRIM0#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ZZE122..IND

12V 8W

 1
90981-14011

ZZE121..ATM..MA;ZZE122..IND,MA,VN

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12070

ZZE122..IND,VN

 1
81260A - LAMP ASSY, MAP
81260-02020A0

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

IVORY,TRIM0#

 1
81260A - LAMP ASSY, MAP
81260-02020A0

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

IVORY,TRIM0#

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

ZZE122..(18E,18G)..IND

12V 8W

 2
90981-12020

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA,VN)

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

ZZE122..(18E,18G)..IND

12V 8W

 2
90981-12020

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA,VN)

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

ZZE122..(18E,18G)..IND

12V 8W

 2
90981-12020

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA,VN)

12V 8W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-0A010

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90080-81058

ZZE121..ATM..MA;ZZE122..IND,MA,VN

12V 3W

 1
Common parts
93540-54016
