ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )IND ; (0310-0712)TAIW

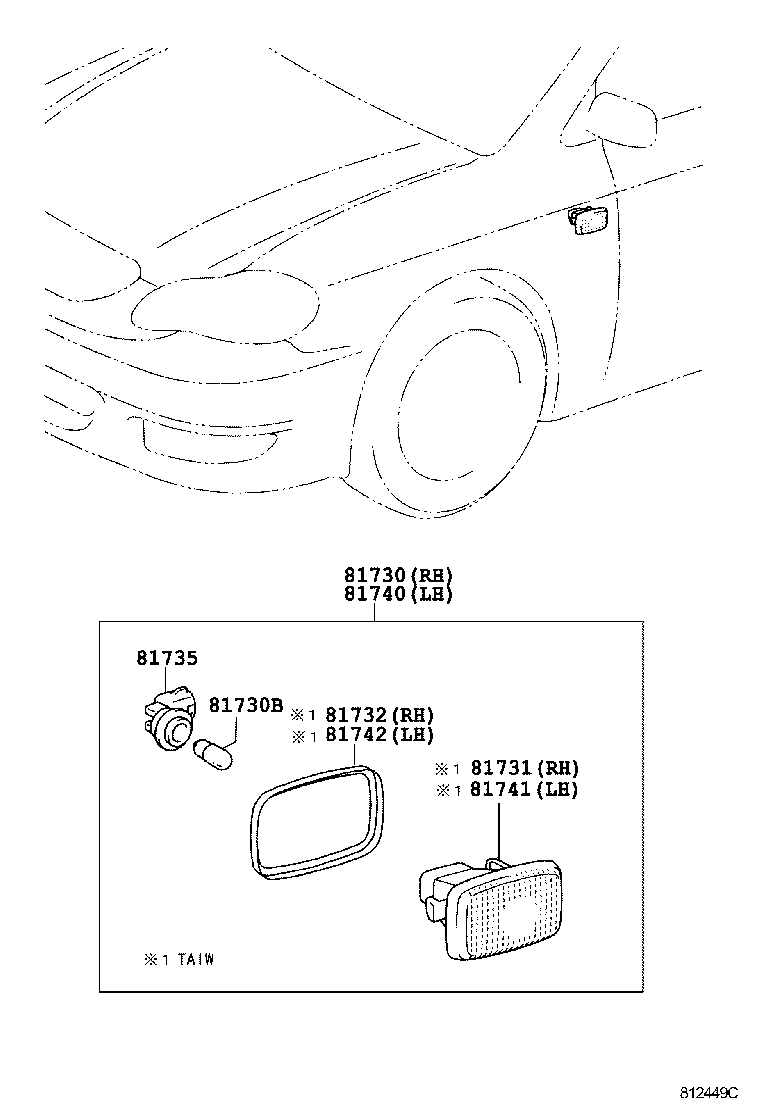

Click highlighted areas on diagram

diagram 81730 81730B 81731 81732 81735 81740 81741 81742
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-0B020

ZZE122..IND

 1
81730-0B020

ZZE122..IND

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90981-15012

NZE120,ZZE12#

12V 5W

 2
90981-15012

ZZE121..ATM..MA;ZZE122..IND,MA,VN

12V 5W

 2
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
90075-99012

NZE120,ZZE12#

 2
90075-99012

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-0B020

ZZE122..IND

 1
81730-0B020

ZZE122..IND

 1
