ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

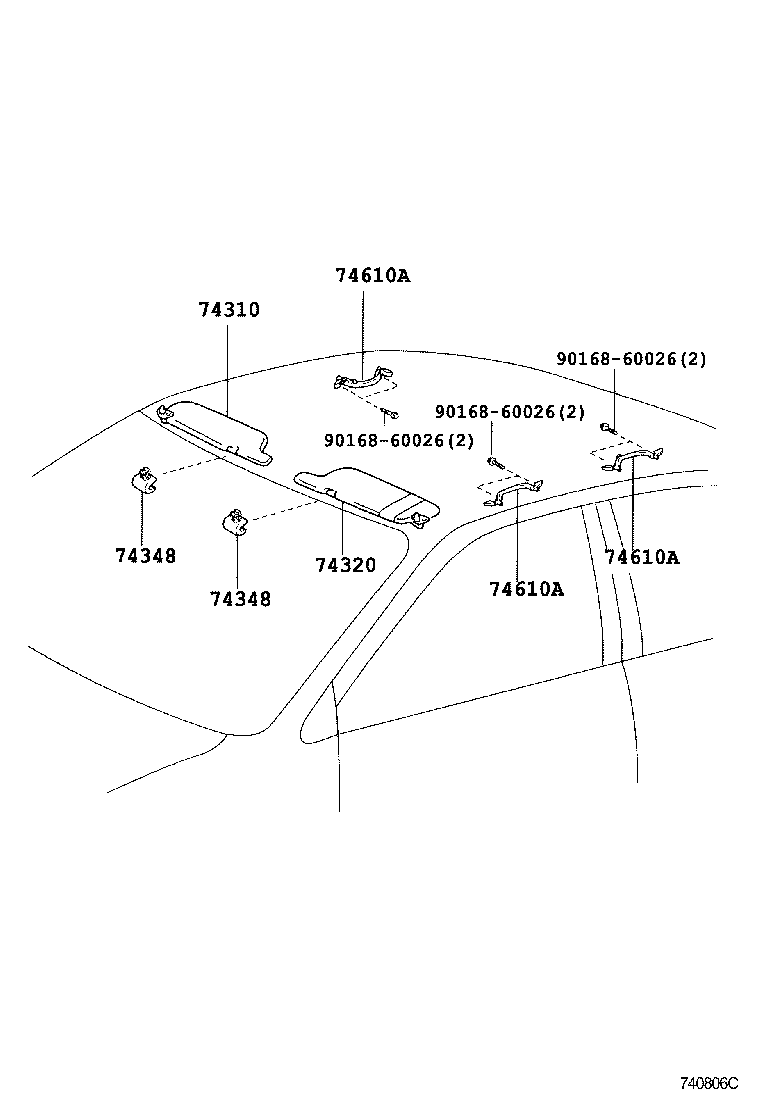

ILLUST NO. 2 OF 2(0103- )

Click highlighted areas on diagram

diagram 74310 74320 74348 74348 74610A 74610A 74610A 9016860026 9016860026 9016860026
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0Z020A0

ZZE122..(18E,18G)..IND

IVORY,TRIM0#,*127

 1
74310-02A90A0

ZZE122..(18E,18G)..IND

IVORY,TRIM0#,*126

 1
74310-0Z020A0

ZZE122..(18E,18G)..IND

IVORY,TRIM0#

 1
74320 - VISOR ASSY, LH
74320-02200A0

ZZE122..IND

IVORY,TRIM0#,*127

 1
74320-02200A0

ZZE122..IND

IVORY,TRIM0#,*127

 1
74320-02200A0

ZZE122..IND

IVORY,TRIM0#

 1
74348 - HOLDER, VISOR
74348-12040A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 2
74348-12040A0

ZZE122..IND,MA;ZZE121..ATM..MA

IVORY,TRIM0#

 2
74348 - HOLDER, VISOR
74348-12040A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 2
74348-12040A0

ZZE122..IND,MA;ZZE121..ATM..MA

IVORY,TRIM0#

 2
74610A - GRIP SUB-ASSY, ASSIST
74611-12020A0

ZZE122..IND

IVORY,TRIM0#

 3
74611-02110A0

ZZE122..IND

IVORY,TRIM0#

 3
74610A - GRIP SUB-ASSY, ASSIST
74611-12020A0

ZZE122..IND

IVORY,TRIM0#

 3
74611-02110A0

ZZE122..IND

IVORY,TRIM0#

 3
74610A - GRIP SUB-ASSY, ASSIST
74611-12020A0

ZZE122..IND

IVORY,TRIM0#

 3
74611-02110A0

ZZE122..IND

IVORY,TRIM0#

 3
Common parts
90168-60026

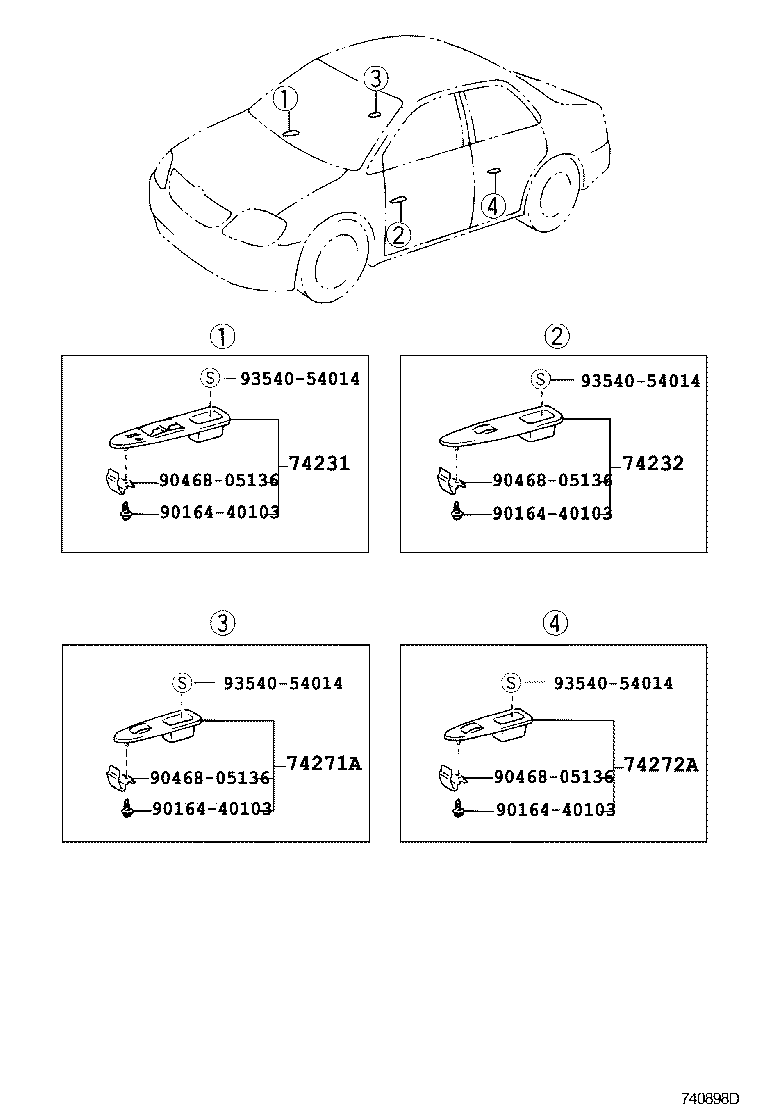

ILLUST NO. 1 OF 2(0103- )16E,16G,16J,18E,18G,18J

Click highlighted areas on diagram

diagram 74231 74232 74271A 74272A 9016440103 9016440103 9016440103 9016440103 9046805136 9046805136 9046805136 9046805136 9354054014 9354054014 9354054014 9354054014
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-02150E0

ZZE122..(18E,18G)..(IND,MA)

YELLOWISH BROWN,TRIM0#

 1
74231-02410E0

ZZE122..(18E,18G)..IND

BROWN,TRIM0#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-02460E0

ZZE122..(18E,18G)..IND

BROWN,TRIM0#

 1
74232-02150E0

ZZE122..(18E,18G)..(IND,MA)

YELLOWISH BROWN,TRIM0#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-02120E0

ZZE122..(18E,18G)..IND

BROWN,TRIM0#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-02110E0

ZZE122..(18E,18G)..IND

BROWN,TRIM0#

 1
Common parts
90164-40103
90468-05136
93540-54014
