ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

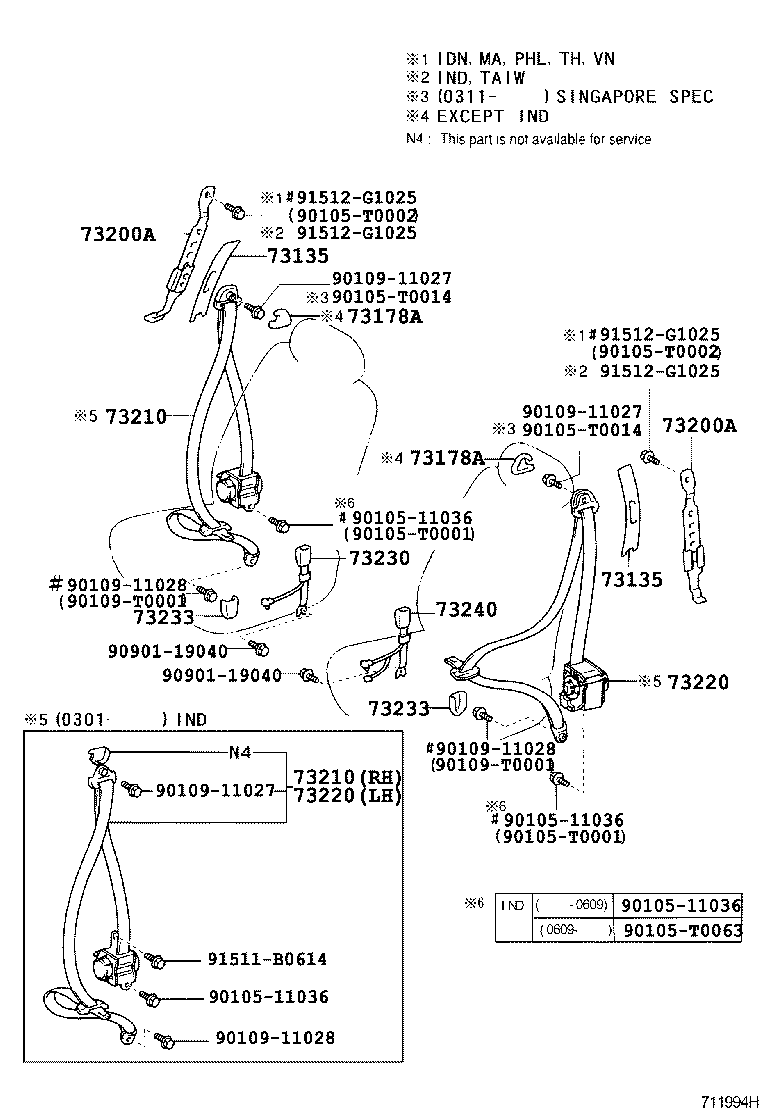

ILLUST NO. 1 OF 2(0103- )

Click highlighted areas on diagram

FRONT

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 73210 73220 73220 73230 73233 73233 73240 9010511036 9010511036 9010511036 9010511036 90105T0001 90105T0001 90105T0002 90105T0002 90105T0014 90105T0014 90105T0063 9010911027 9010911027 9010911027 9010911028 9010911028 9010911028 90109T0001 90109T0001 9090119040 9090119040 91511B0614 91512G1025 91512G1025 91512G1025 91512G1025
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030A0

ZZE12#..RHD..(16E,18E,18G,18J)

IVORY,TRIM0#

 2
73135-02010A0

ZZE122..IND

IVORY,TRIM0#

 2
73135-02010A0

ZZE122..IND

IVORY,TRIM0#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030A0

ZZE12#..RHD..(16E,18E,18G,18J)

IVORY,TRIM0#

 2
73135-02010A0

ZZE122..IND

IVORY,TRIM0#

 2
73135-02010A0

ZZE122..IND

IVORY,TRIM0#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02090A0

ZZE122..IND

IVORY,TRIM0#

 2
73200-02090A0

ZZE122..IND

IVORY,TRIM0#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02090A0

ZZE122..IND

IVORY,TRIM0#

 2
73200-02090A0

ZZE122..IND

IVORY,TRIM0#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-02050

ZZE122..IND

 1
73210-02050

ZZE122..IND

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-02050

ZZE122..IND

 1
73210-02050

ZZE122..IND

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-02100

ZZE122..IND

 1
73220-02100

ZZE122..IND

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-02100

ZZE122..IND

 1
73220-02100

ZZE122..IND

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-02200A0

ZZE122..IND

IVORY,TRIM0#

 1
73230-02200A0

ZZE122..IND

IVORY,TRIM0#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-02020A0

ZZE122..IND

IVORY,TRIM0#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-02020A0

ZZE122..IND

IVORY,TRIM0#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-02210A0

ZZE122..IND

IVORY,TRIM0#

 1
73230-02210A0

ZZE122..IND

IVORY,TRIM0#

 1
Common parts
90105-11036
90105-T0001
90105-T0002
90105-T0014
90105-T0063
90109-11027
90109-11028
90109-T0001
90901-19040
91511-B0614
91512-G1025

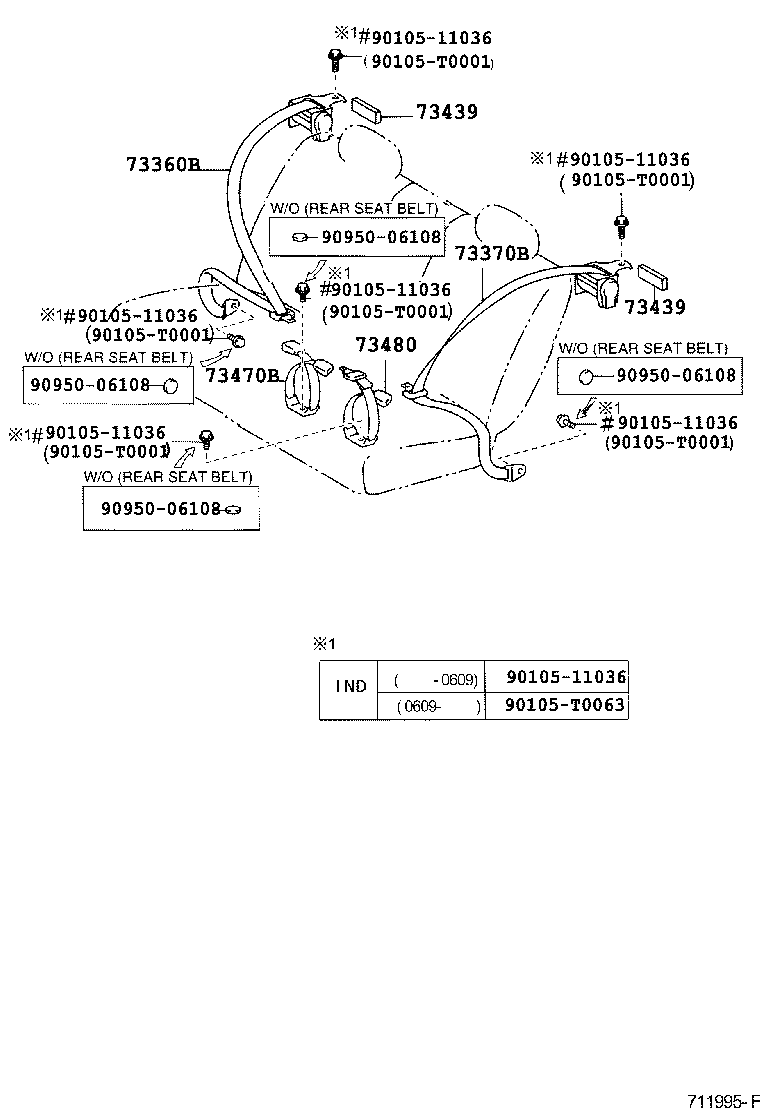

ILLUST NO. 2 OF 2(0103- )

Click highlighted areas on diagram

REAR

diagram 73360B 73370B 73439 73439 73470B 73480 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 90105T0001 90105T0001 90105T0001 90105T0001 90105T0001 90105T0001 90105T0063 9095006108 9095006108 9095006108 9095006108
Part # Description Qty Price
73360B - BELT ASSY, REAR SEAT, OUTER
73360-02250

ZZE122..IND

 1
73360-02250

ZZE122..IND

 1
73370B - BELT ASSY, REAR SEAT, OUTER
73360-02250

ZZE122..IND

 1
73360-02250

ZZE122..IND

 1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-12040

ZZE122..IND

 2
73439-12040

ZZE122..IND,VN

 2
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-12040

ZZE122..IND

 2
73439-12040

ZZE122..IND,VN

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-02090

ZZE122..IND

 1
73470-02090

ZZE122..IND

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-02100

ZZE122..IND

 1
73480-02100

ZZE122..IND

 1
Common parts
90105-11036
90105-T0001
90105-T0063
90950-06108
