ZZE122R-GEPNKX (2003)
Toyota Corolla (Asia/India)
(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

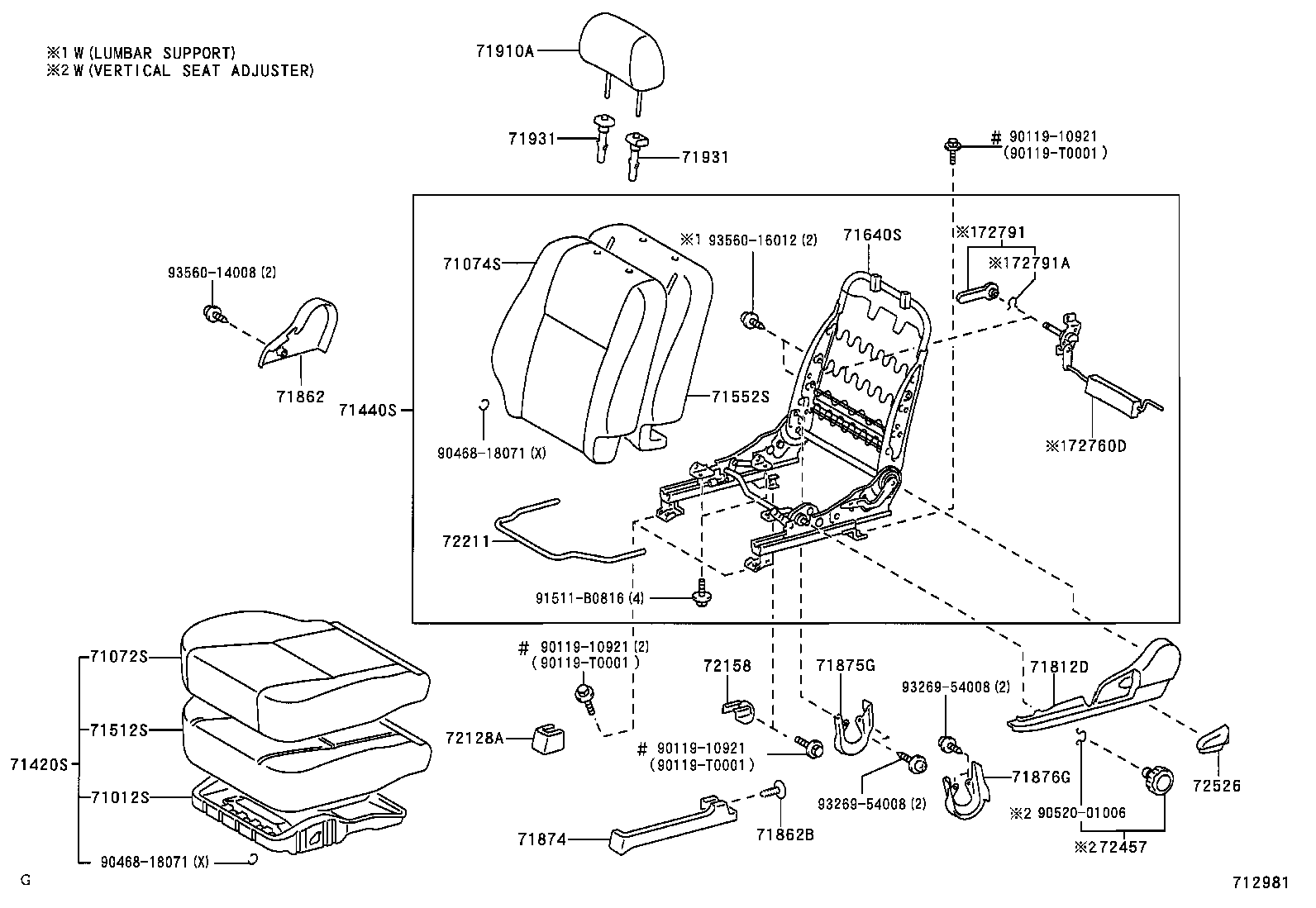

LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-02040 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02690A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71072-02700A0 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71072-02730A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71072-02730A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71072-02E90A1 |
ZZE122..(18E,18G)..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71072-02731A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0Z130A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71073-0Z140A0 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71074-02B80A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71074-02B80A2 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71074-02B81A2 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71074-0Z010A1 |
ZZE122..(18E,18G)..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-02430A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71420-02440A0 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02090 |
ZZE12#..16E,18E,18G |
1 | ||
| 71511-02210 |
ZZE122..(18E,18G)..IND LEATHER SEAT |
1 | ||
| 71511-02100 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-02100 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| 71551-02120 |
ZZE122..(18E,18G)..IND LEATHER SEAT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02080 |
ZZE122..IND |
1 | ||
| 71640-02080 |
ZZE122..IND |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0A010A0 |
ZZE122..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 71812-02060A0 |
ZZE122..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 71812-0A010A0 |
ZZE122..IDN,IND;ZZE122..18E..TH IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 71812-02060A0 |
ZZE122..IND;ZZE122..18E..TAIW IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02030A0 |
ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 71862-0A010A0 |
ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 71862-02030A0 |
ZZE122..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 71862-0A010A0 |
ZZE122..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-07161A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 90467-07161A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02010A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 71874-02010A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71875-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71876-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02690A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
2 | ||
| 71910-02840A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
2 | ||
| 71910-02700A1 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
2 | ||
| 71910-02700A1 |
ZZE122..(18E,18G)..IND W(LEATHER SEAT),IVORY,TRIM0# |
2 | ||
| 71910-02840A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-02020A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 72127-02020A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02030A0 |
ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH) IVORY,TRIM0# |
1 | ||
| 72158-02030A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02020 |
ZZE122..IND,VN;ZZE121..ATM..MA |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-12030A0 |
ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72457-18010A1 |
ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72457-18010A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72457-12030A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010A0 |
ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72526-0A010A0 |
ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72526-16010A0 |
ZZE122..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72526-0A010A0 |
ZZE122..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020A2 |
ZZE122..(18E,18G)..(IND,MA) IVORY,TRIM0# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
ZZE122..(18E,18G)..(IND,MA,VN) |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 93269-54008 | ||||
| 93560-14008 | ||||
| 93560-16012 | ||||
(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

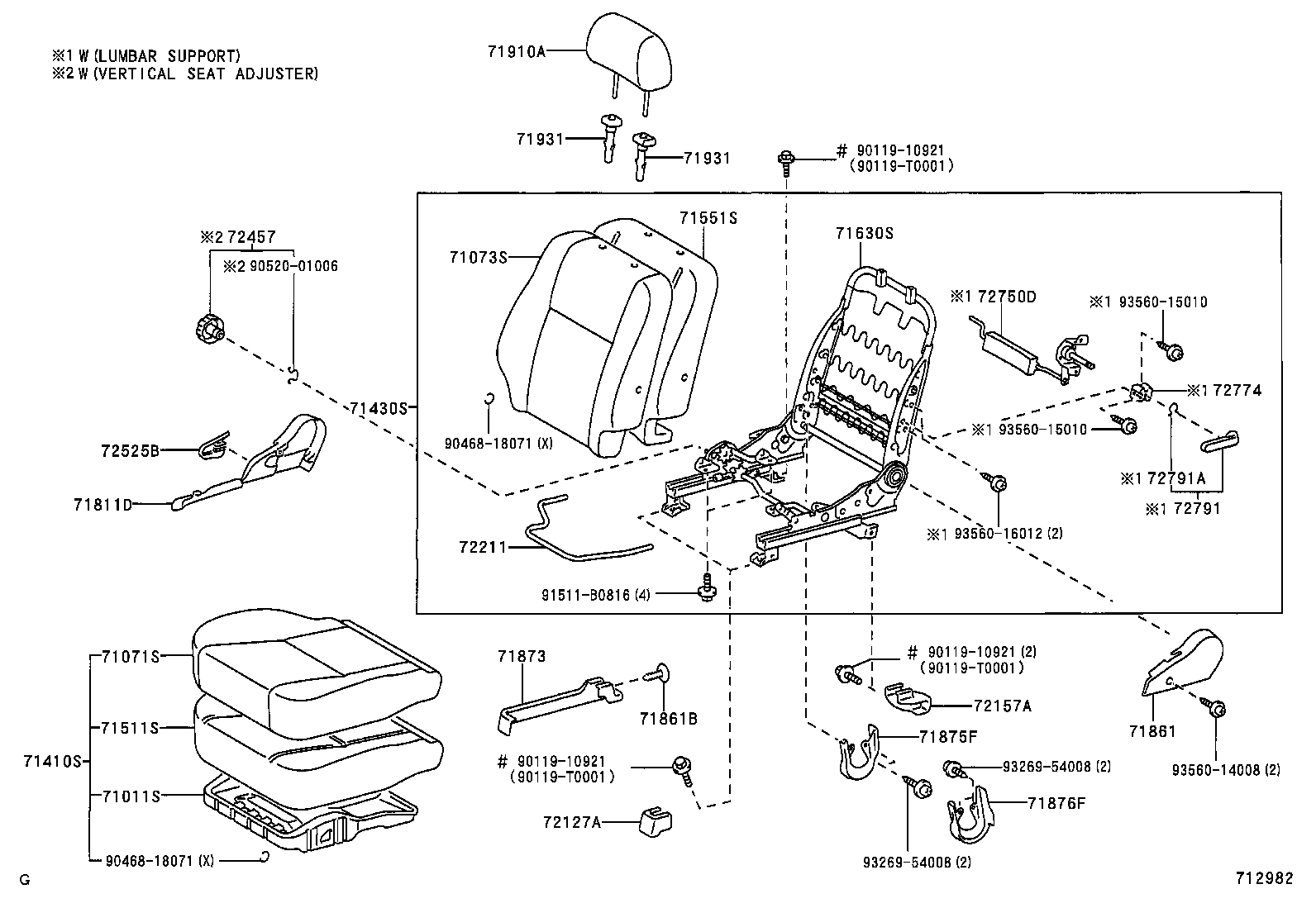

RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-02050 |
ZZE121..ATM..MA;ZZE122..(18E,18G)..IND |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0Z090A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71071-02A00A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71071-02A00A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71071-0Z100A0 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71071-02A01A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71071-02L90A1 |
ZZE122..(18E,18G)..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0Z130A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71073-0Z140A0 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71027-02370A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71027-02380A1 |
ZZE122..(18E,18G)..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71027-02371A2 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71027-02370A2 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-02490A0 |
ZZE12#..16E,18E,18G IVORY,TRIM0# |
1 | ||
| 71410-02700A0 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71410-02690A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71410-02490B1 |
ZZE12#..16E,18E,18G STONE,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02100 |
ZZE12#..16E,18E,18G |
1 | ||
| 71511-02090 |
ZZE121..ATM..MA;ZZE122..(18E,18G)..IND |
1 | ||
| 71511-02220 |
ZZE122..(18E,18G)..IND LEATHER SEAT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02100 |
ZZE121..16E..PHL;ZZE122..(18E,18G)..(IND,VN);ZZE12#..(16,16G,16J,18J)..(IDN,PHL,TAIW,TH) |
1 | ||
| 71551-02140 |
ZZE122..(18E,18G)..IND LEATHER SEAT |
1 | ||
| 71551-02130 |
ZZE122..(18E,18G)..IND |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02160 |
ZZE122..(18E,18G)..IND |
1 | ||
| 71630-02200 |
ZZE122..(18E,18G)..IND |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02060A0 |
ZZE122..IND TAIWAN SPEC,IVORY,TRIM0# |
1 | ||
| 71811-02060A0 |
ZZE122..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 71811-02060A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71811-0A010A0 |
ZZE122..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0A010A0 |
ZZE122..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 71861-02040A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71861-02040A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 71861-02040A0 |
ZZE122..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-07161A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 90467-07161A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-02010A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71873-02010A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71875-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71876-06060A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02690A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
2 | ||
| 71910-02840A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
2 | ||
| 71910-02700A1 |
ZZE122..18G..IND LEATHER SEAT,IVORY,TRIM0# |
2 | ||
| 71910-02700A1 |
ZZE122..(18E,18G)..IND W(LEATHER SEAT),IVORY,TRIM0# |
2 | ||
| 71910-02840A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030A0 |
ZZE122..IND W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
ZZE122..IND W(LOCK),IVORY,TRIM0# |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-02020A0 |
ZZE122..IND IVORY,TRIM0# |
1 | ||
| 72127-02020A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02030A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 72157-02030A0 |
ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02020 |
ZZE122..IND,VN;ZZE121..ATM..MA |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-12030A0 |
ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72457-18010A1 |
ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72457-18010A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72457-12030A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010A0 |
ZZE122..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72525-0A010A0 |
ZZE122..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72525-16010A0 |
ZZE122..IND IVORY,TRIM0#,TAIWAN SPEC |
1 | ||
| 72525-0A010A0 |
ZZE122..IND IVORY,TRIM0#,THAILAND SPEC |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-02010 |
ZZE122..(18E,18G)..(IND,MA) |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-02010 |
ZZE122..(18E,18G)..IND |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020A2 |
ZZE122..(18E,18G)..(IND,MA) IVORY,TRIM0# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
ZZE122..(18E,18G)..(IND,MA,VN) |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 93269-54008 | ||||
| 93560-14008 | ||||
| 93560-15010 | ||||
| 93560-16012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
