ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )RHD

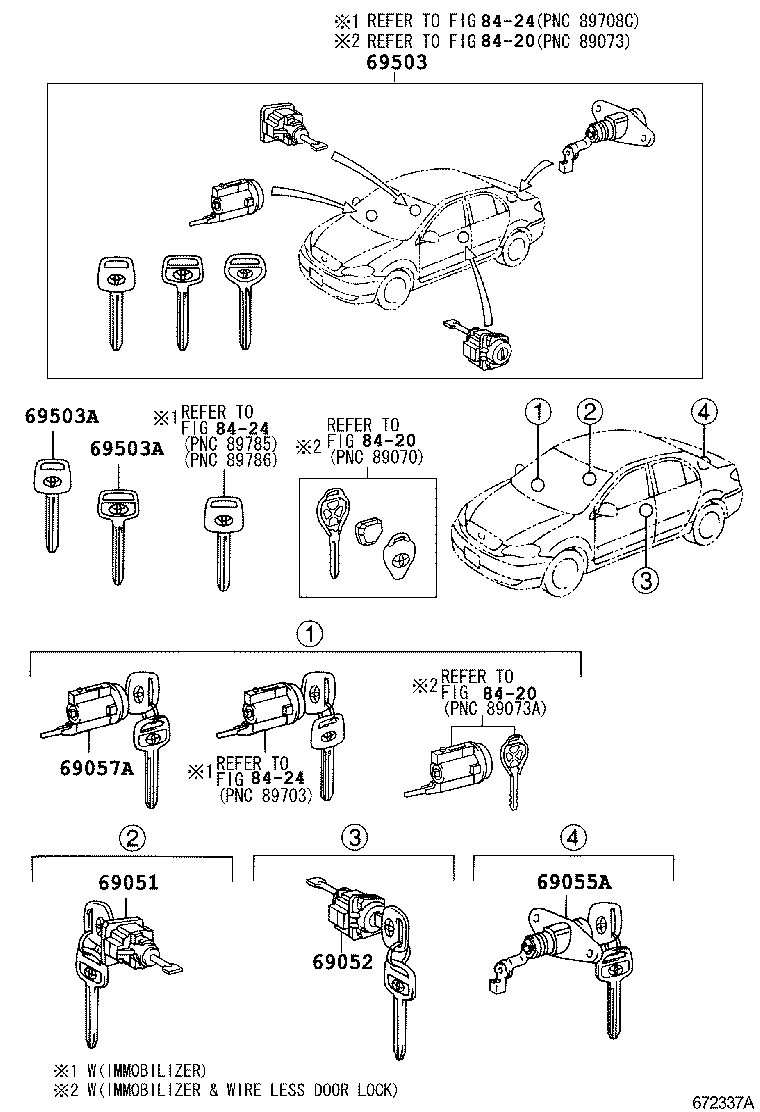

Click highlighted areas on diagram

diagram 69051 69052 69055A 69057A 69503 69503A 69503A 8420 8420 8420 8424 8424 8424
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02060

ZZE122..IND

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02050

ZZE122..IND

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-02050

ZZE122..IND

 1
Linked diagrams
8420
8424
