ZZE122R-GEPNKX (2003)
Toyota Corolla (Asia/India)
Production
Jan 2003
-
Aug 2008
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0103- )

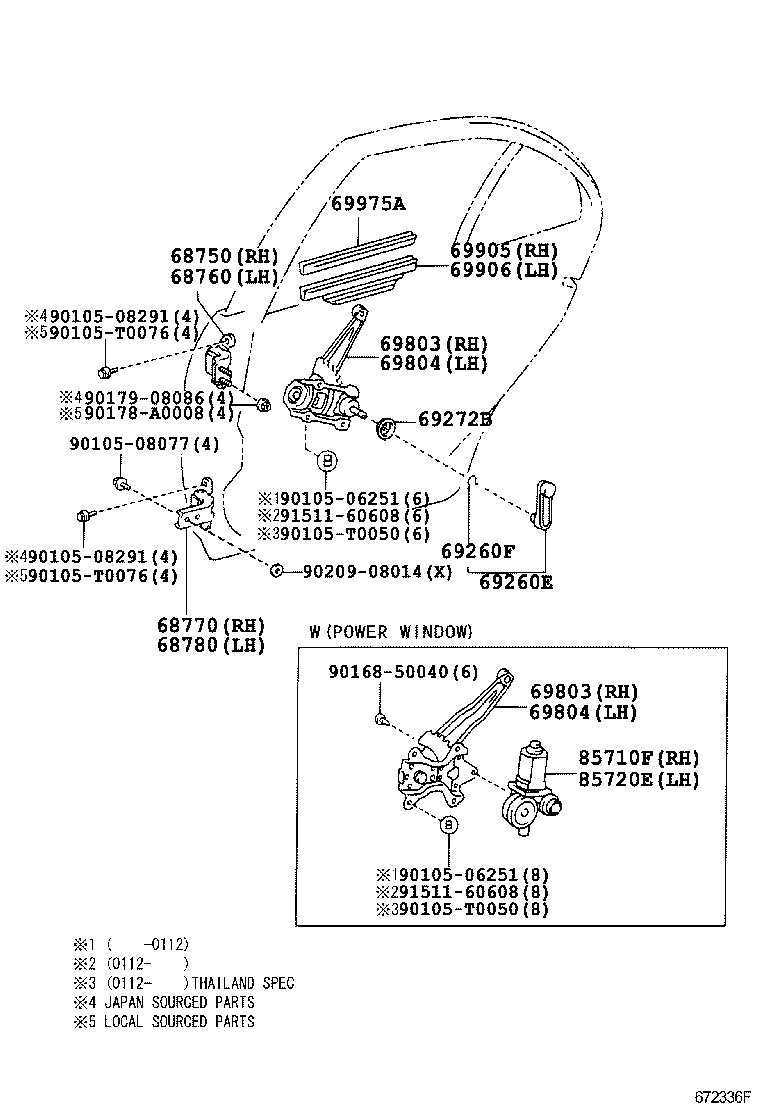

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-52011 |
NZE120,ZZE12# |
1 | ||
| 68750-52011 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-52011 |
NZE120,ZZE12# |
1 | ||
| 68760-52011 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-52030 |
NZE120,ZZE12# |
1 | ||
| 68770-0K050 |
ZZE122..IND |
1 | ||
| 68770-0K050 |
ZZE122..IND |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-52030 |
NZE120,ZZE12# |
1 | ||
| 68780-0K050 |
ZZE122..IND |
1 | ||
| 68780-0K050 |
ZZE122..IND |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-12140 |
ZZE12#..IND,TAIW |
1 | ||
| 69803-12140 |
ZZE122..IND |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-12140 |
ZZE12#..IND,TAIW |
1 | ||
| 69803-12140 |
ZZE122..IND |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-12140 |
ZZE12#..IND,TAIW |
1 | ||
| 69804-12140 |
ZZE122..IND |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-12140 |
ZZE12#..IND,TAIW |
1 | ||
| 69804-12140 |
ZZE122..IND |
1 | ||
| 69905 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-52020 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 69905-52020 |
NZE120,ZZE12# |
1 | ||
| 69906 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-52010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 69906-52010 |
NZE120,ZZE12# |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
NZE120,ZZE12# |
2 | ||
| 69975-52010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-12250 |
ZZE12#..16E,16G,16J,18E,18G,18J |
1 | ||
| 85720-12300 |
ZZE122..IND |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-12250 |
ZZE12#..16E,16G,16J,18E,18G,18J |
1 | ||
| 85710-12310 |
ZZE122..IND |
1 | ||
| Common parts | ||||
| 90105-06251 | ||||
| 90105-08077 | ||||
| 90105-08291 | ||||
| 90105-T0050 | ||||
| 90105-T0076 | ||||
| 90168-50040 | ||||
| 90178-A0008 | ||||
| 90179-08086 | ||||
| 90209-08014 | ||||
| 91511-60608 | ||||
