ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )

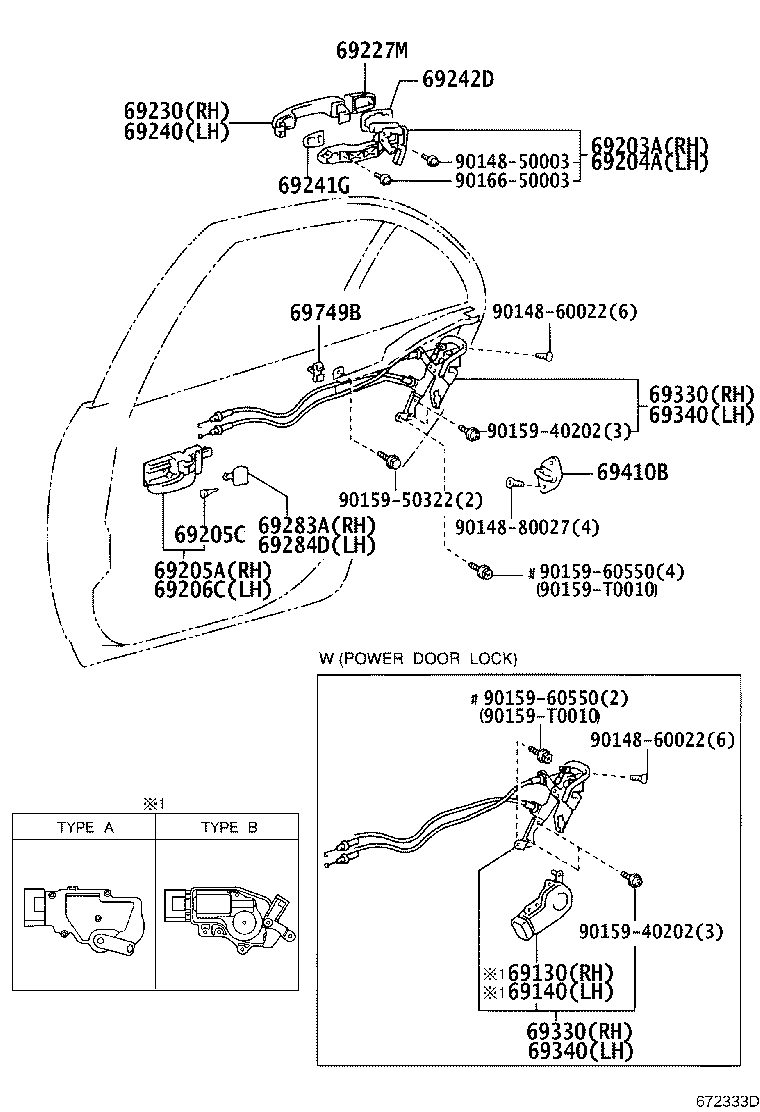

Click highlighted areas on diagram

diagram 69130 69140 69203A 69204A 69205A 69205C 69206C 69227M 69230 69240 69241G 69242D 69283A 69284D 69330 69330 69340 69340 69410B 69749B 9014850003 9014860022 9014860022 9014880027 9015940202 9015940202 9015950322 9015960550 9015960550 90159T0010 90159T0010 9016650003
Part # Description Qty Price
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-02040

ZZE122..IND

 1
69130-02041

ZZE122..IND

 1
69130-02040

ZZE122..IND

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-02040

ZZE122..IND

 1
69140-02041

ZZE122..IND

 1
69140-02040

ZZE122..IND

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-02050

ZZE122..IND

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-02050

ZZE122..IND

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-12190A0

ZZE121..16E..TH;ZZE122..18G..TAIW;ZZE122..RHD..(18E,18G)

IVORY,TRIM0#

 1
69205-0D080A0

ZZE122..(18E,18G)..(IND,MA)

W(CHROME PLATED INSIDE HANDLE),IVORY,TRIM0#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
90541-04027

ZZE122..(18E,18G)..IND

 4
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-12190A0

ZZE121..16E..TH;ZZE122..18G..TAIW;ZZE122..RHD..(18E,18G)

IVORY,TRIM0#

 1
69206-0D080A0

ZZE122..(18E,18G)..(IND,MA)

W(CHROME PLATED INSIDE HANDLE),IVORY,TRIM0#

 1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-12080

ZZE121..16E..TH;ZZE122..RHD..(18E,18G)

*CR

 2
69227-06030

ZZE122..(18E,18G)..IND

*CR,THAILAND SPEC

 2
69227-06030

ZZE122..(18E,18G)..IND

*CR

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-06040

ZZE122..(18E,18G)..IND

PLATED

 1
69210-06040

ZZE122..(18E,18G)..IND

PLATED,THAILAND SPEC

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-06040

ZZE122..(18E,18G)..IND

PLATED,THAILAND SPEC

 1
69210-06040

ZZE122..(18E,18G)..IND

PLATED

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-06030

ZZE122..IND

 2
69241-42020

ZZE121..LHD..16J;ZZE122..(18E,18G)..(IDN,IND,MA,TAIW,TH);NZE120,ZZE12#..(16,16E,18J,J)..(IND,TAIW,TH,VN)

 2
69242D - PAD, REAR DOOR OUTSIDE HANDLE, LH
69242-42010

ZZE121..LHD..16J;ZZE122..(18E,18G)..(IDN,IND,MA,TAIW,TH);NZE120,ZZE12#..(16,16E,18J,J)..(IND,TAIW,TH,VN)

 2
69242-06020

ZZE122..IND

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30040A1

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
69283-30040A1

ZZE122..IND

IVORY,TRIM0#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69283-30040A1

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
69283-30040A1

ZZE122..IND

IVORY,TRIM0#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-02121

ZZE122..IND

 1
69050-02120

ZZE122..IND

 1
69050-02120

ZZE122..IND

THAILAND SPEC & W(POWER DOOR LOCK)

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-02121

ZZE122..IND

 1
69050-02120

ZZE122..IND

 1
69050-02120

ZZE122..IND

THAILAND SPEC & W(POWER DOOR LOCK)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-02120

ZZE122..IND

THAILAND SPEC & W(POWER DOOR LOCK)

 1
69060-02120

ZZE122..IND

 1
69060-02121

ZZE122..IND

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-02120

ZZE122..IND

THAILAND SPEC & W(POWER DOOR LOCK)

 1
69060-02120

ZZE122..IND

 1
69060-02121

ZZE122..IND

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-47010

ZZE122..IND

 2
69410-47010

ZZE122..IND

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

ZZE122..IND

 2
69749-32040

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
Common parts
90148-50003
90148-60022
90148-80027
90159-40202
90159-50322
90159-60550
90159-T0010
90166-50003
