ZZE122R-GEPNKX (2003)
Toyota Corolla (Asia/India)

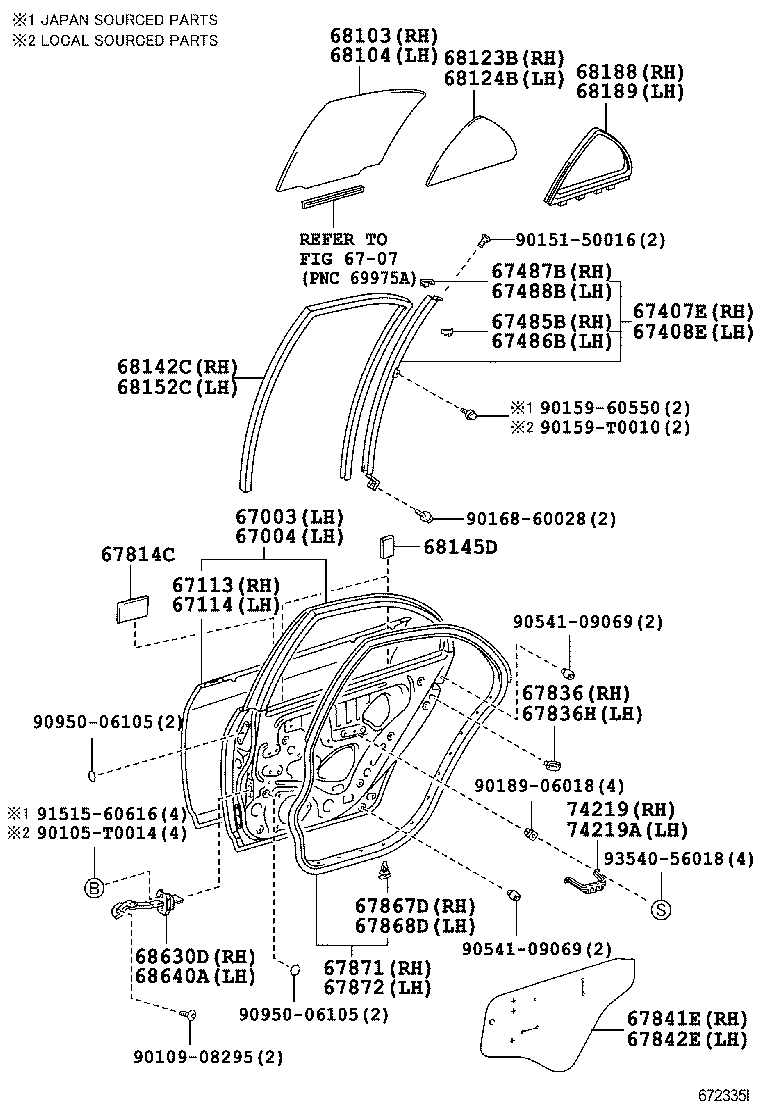

ILLUST NO. 1 OF 2(0103- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-1A010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12890 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12270 |
NZE120,ZZE12# |
1 | ||
| 67113-12270 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12270 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67114-12270 |
NZE120,ZZE12# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12260 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67407-12260 |
NZE120,ZZE12# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12260 |
NZE120,ZZE12# |
1 | ||
| 67408-12260 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH | ||||
| 67485-53010 |
NZE120,ZZE12# |
1 | ||
| 67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH | ||||
| 67486-53010 |
NZE120,ZZE12# |
1 | ||
| 67487B - SEAL, REAR DOOR DIVISION BAR, RH | ||||
| 67487-53010 |
NZE120,ZZE12# |
1 | ||
| 67488B - SEAL, REAR DOOR DIVISION BAR, LH | ||||
| 67488-53010 |
NZE120,ZZE12# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-02030 |
ZZE122..IND (L) |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-02030 |
ZZE122..IND (L) |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02140 |
ZZE122..IND |
1 | ||
| 67841-02140 |
ZZE122..IND |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02110 |
ZZE122..IND |
1 | ||
| 67842-02110 |
ZZE122..IND |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
16 | ||
| 67867-12150 |
NZE120,ZZE12# |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
16 | ||
| 67867-12150 |
NZE120,ZZE12# |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02050 |
NZE120,ZZE12# |
1 | ||
| 67871-02050 |
ZZE122..IND |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02050 |
ZZE122..IND |
1 | ||
| 67872-02050 |
NZE120,ZZE12# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12680 |
ZZE122..IND *TT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12680 |
ZZE122..IND *TT,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12720 |
ZZE122..IND *TT,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12720 |
ZZE122..IND *TT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02050 |
NZE120,ZZE12# |
1 | ||
| 68142-02050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-12110 |
NZE120,ZZE12# |
4 | ||
| 69759-12110 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
4 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02050 |
NZE120,ZZE12# |
1 | ||
| 68152-02050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02060 |
ZZE122..IND |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02060 |
ZZE122..IND |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-12071 |
ZZE122..IND (J) |
1 | ||
| 68630-02110 |
ZZE122..IND |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-12041 |
ZZE122..IND (J) |
1 | ||
| 68640-02110 |
ZZE122..IND |
1 | ||
| 74219 - REINFORCEMENT, DOOR ARMREST, REAR RH | ||||
| 74219-02010 |
ZZE122..IND |
1 | ||
| 74219-02010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 74219A - REINFORCEMENT, DOOR ARMREST, REAR LH | ||||
| 74219-02010 |
ZZE122..IND |
1 | ||
| 74219-02010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| Common parts | ||||
| 90105-T0014 | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90159-60550 | ||||
| 90159-T0010 | ||||
| 90168-60028 | ||||
| 90189-06018 | ||||
| 90541-09069 | ||||
| 90950-06105 | ||||
| 91515-60616 | ||||
| 93540-56018 | ||||
| Linked diagrams | ||||
| 6707 | ||||
ILLUST NO. 2 OF 2(0103- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0Z100E0 |
ZZE122..18G..IND LEATHER TRIM,SANDAL WOOD,TRIM0# |
1 | ||
| 67630-0Z090E0 |
ZZE122..(18E,18G)..IND SANDAL WOOD,TRIM0# |
1 | ||
| 67630-02D40A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67630-0Z100A0 |
ZZE122..(18E,18G)..IND LEATHER TRIM,IVORY,TRIM0# |
1 | ||
| 67630-02D40A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120,ZZE122;ZZE121..16J..TAIW;ZZE121..(16E,16G)..(MA,PHL,TAIW) |
7 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
7 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120,ZZE122;ZZE121..16J..TAIW;ZZE121..(16E,16G)..(MA,PHL,TAIW) |
7 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
7 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120,ZZE122;ZZE121..16J..TAIW;ZZE121..(16E,16G)..(MA,PHL,TAIW) |
7 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0Z090E0 |
ZZE122..(18E,18G)..IND SANDAL WOOD,TRIM0# |
1 | ||
| 67640-0Z100E0 |
ZZE122..18G..IND LEATHER TRIM,SANDAL WOOD,TRIM0# |
1 | ||
| 67640-0Z130A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67640-0Z100A0 |
ZZE122..(18E,18G)..IND LEATHER TRIM,IVORY,TRIM0# |
1 | ||
| 67640-0Z130A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120,ZZE122;ZZE121..16J..TAIW;ZZE121..(16E,16G)..(MA,PHL,TAIW) |
7 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120,ZZE122;ZZE121..16J..TAIW;ZZE121..(16E,16G)..(MA,PHL,TAIW) |
7 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120,ZZE122;ZZE121..16J..TAIW;ZZE121..(16E,16G)..(MA,PHL,TAIW) |
7 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
7 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-02080 |
ZZE12#..16E,16G,16J,18E,18G,18J RH |
1 | ||
| 68174-02050 |
ZZE12#..16E,16G,16J,18E,18G,18J LH |
1 | ||
| 68174-02050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN LH |
1 | ||
| 68173-02080 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN RH |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-12010 |
ZZE122..IND |
2 | ||
| 86262-12010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| Common parts | ||||
| 90159-50381 | ||||
| 90164-60018 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6706 | ||||
