ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )

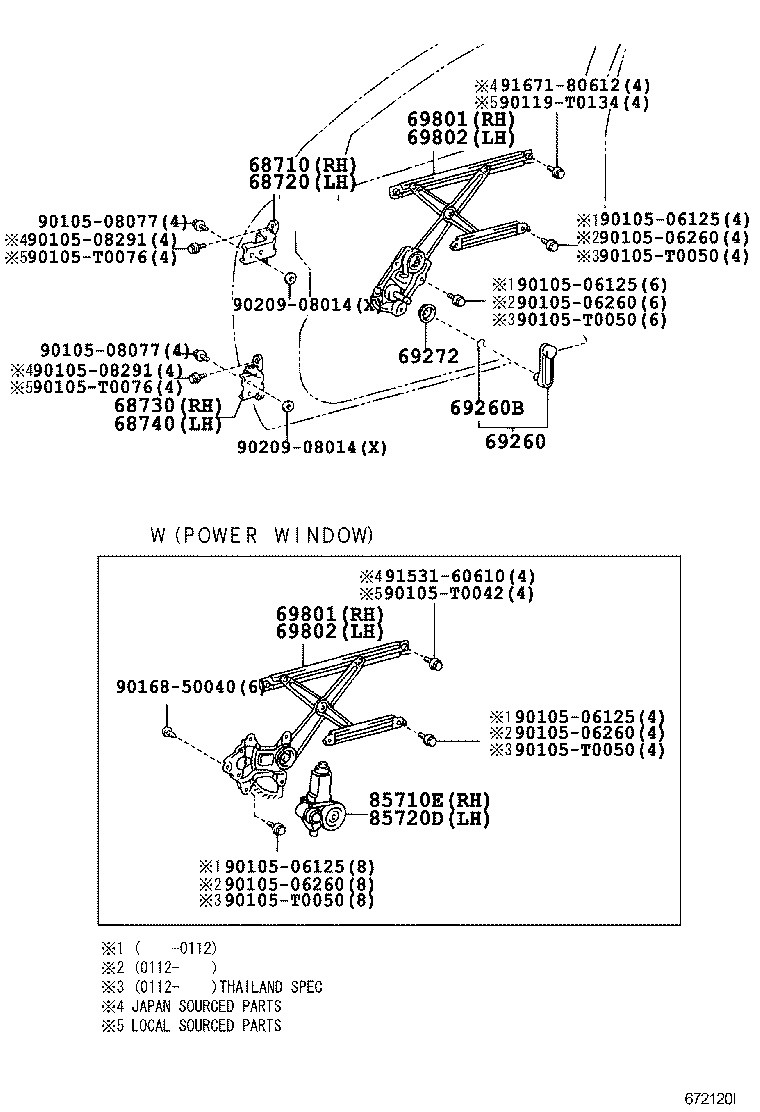

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710E 85720D 9010506125 9010506125 9010506125 9010506125 9010506260 9010506260 9010506260 9010506260 9010508077 9010508077 9010508291 9010508291 90105T0042 90105T0050 90105T0050 90105T0050 90105T0050 90105T0076 90105T0076 90119T0134 9016850040 9020908014 9020908014 9153160610 9167180612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0K030

ZZE122..IND

(L)

 1
68710-12150

NZE120,ZZE12#

 1
68710-0K030

ZZE122..IND

(L)

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150

NZE120,ZZE12#

 1
68720-0K030

ZZE122..IND

(L)

 1
68720-0K030

ZZE122..IND

(L)

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-0K030

ZZE122..IND

 1
68730-52010

NZE120,ZZE12#

 1
68730-0K030

ZZE122..IND

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-0K030

ZZE122..IND

 1
68740-0K030

ZZE122..IND

 1
68740-52010

NZE120,ZZE12#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12190

ZZE12#..IDN,IND,MA,PHL,VN

 1
69801-02140

ZZE122..IND

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12190

ZZE12#..IDN,IND,MA,PHL,VN

 1
69801-02140

ZZE122..IND

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12190

ZZE12#..IND,PHL,VN

 1
69802-02150

ZZE122..IND

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12190

ZZE12#..IND,PHL,VN

 1
69802-02150

ZZE122..IND

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-12320

ZZE12#..IND,MA

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-12210

ZZE122..IND

 1
Common parts
90105-06125
90105-06260
90105-08077
90105-08291
90105-T0042
90105-T0050
90105-T0076
90119-T0134
90168-50040
90209-08014
91531-60610
91671-80612
