ZZE122R-GEPNKX (2003)
Toyota Corolla (Asia/India)
ILLUST NO. 2 OF 2(0103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A670 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A630 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12670 |
NZE120,ZZE12# |
1 | ||
| 67111-12670 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12660 |
NZE120,ZZE12# |
1 | ||
| 67112-12660 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12220 |
NZE120,ZZE12# |
1 | ||
| 67403-12220 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12200 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 67404-12200 |
NZE120,ZZE12# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-02190 |
ZZE122..IND |
1 | ||
| 67831-02190 |
ZZE122..IND |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-02190 |
ZZE122..IND |
1 | ||
| 67832-02190 |
ZZE122..IND |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-02100 |
NZE120,ZZE12# |
1 | ||
| 67861-02100 |
ZZE122..IND |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-02100 |
NZE120,ZZE12# |
1 | ||
| 67862-02100 |
ZZE122..IND |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NZE120,ZZE12# |
14 | ||
| 67867-12150 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NZE120,ZZE12# |
14 | ||
| 67867-12150 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
NZE120,ZZE12# |
2 | ||
| 67869-20030 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-02180 |
ZZE122..IND *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-02180 |
ZZE122..IND *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-02060 |
NZE120,ZZE12# |
1 | ||
| 68141-02060 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 68145A - CUSHION, FRONT DOOR WINDOW | ||||
| 69759-12110 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
4 | ||
| 69759-12110 |
NZE120,ZZE12# |
4 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-02050 |
NZE120,ZZE12# |
1 | ||
| 68151-02050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-02100 |
ZZE122..IND |
1 | ||
| 68610-12161 |
ZZE122..IND (J) |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-12091 |
ZZE122..IND (J) |
1 | ||
| 68620-02100 |
ZZE122..IND |
1 | ||
| 74217A - REINFORCEMENT, DOOR ARMREST, FRONT RH | ||||
| 74217-02010 |
ZZE122..IND |
1 | ||
| 74217-02010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 74218 - REINFORCEMENT, DOOR ARMREST, FRONT LH | ||||
| 74218-02010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 74218-02010 |
ZZE122..IND |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90159-T0010 | ||||
| 90189-06018 | ||||
| 90541-09069 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
| 91515-60616 | ||||
| 93540-56018 | ||||

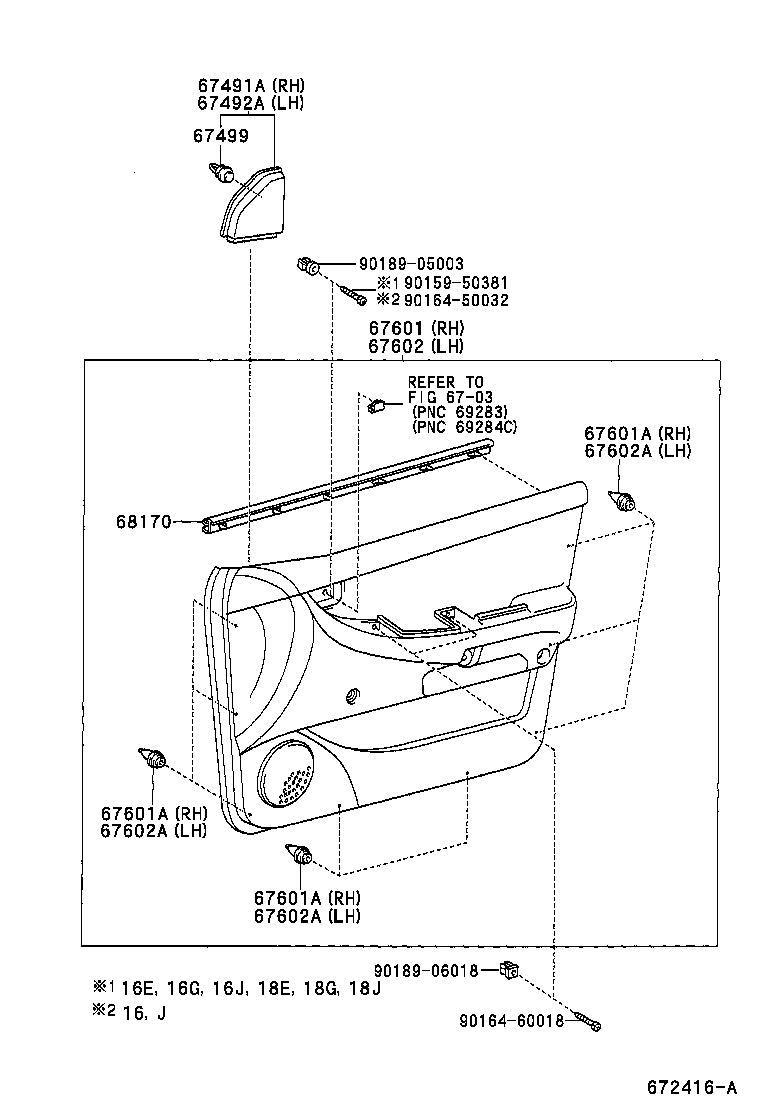

ILLUST NO. 1 OF 2(0103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12480 |
ZZE122..(18E,18G)..IND W(SPEAKER GRILLE) |
1 | ||
| 67491-12480 |
ZZE122..(18E,18G)..IND |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12480 |
ZZE122..(18E,18G)..IND W(SPEAKER GRILLE) |
1 | ||
| 67492-12480 |
ZZE122..(18E,18G)..IND |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12060 |
ZZE122..IND |
2 | ||
| 67771-12060 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0Z160E0 |
ZZE122..(18E,18G)..IND SANDAL WOOD,TRIM0# |
1 | ||
| 67610-0Z220A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67610-0Z240A0 |
ZZE122..(18E,18G)..IND LEATHER TYPE,IVORY,TRIM0# |
1 | ||
| 67610-0Z170E0 |
ZZE122..18G..IND LEATHER TYPE,SANDAL WOOD,TRIM0# |
1 | ||
| 67610-0Z220A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120,ZZE12# |
8 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120,ZZE12# |
8 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120,ZZE12# |
8 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0Z160E0 |
ZZE122..(18E,18G)..IND SANDAL WOOD,TRIM0# |
1 | ||
| 67620-0Z200A0 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67620-0Z170E0 |
ZZE122..18G..IND LEATHER TYPE,SANDAL WOOD,TRIM0# |
1 | ||
| 67620-0Z240A0 |
ZZE122..(18E,18G)..IND LEATHER TYPE,IVORY,TRIM0# |
1 | ||
| 67620-0Z200A1 |
ZZE122..(18E,18G)..IND IVORY,TRIM0# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120,ZZE12# |
8 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
8 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120,ZZE12# |
8 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
8 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120,ZZE12# |
8 | ||
| 67771-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
8 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-02060 |
ZZE12#..16E,16G,16J,18E,18G,18J LH |
1 | ||
| 68171-02090 |
ZZE12#..16E,16G,16J,18E,18G,18J RH |
1 | ||
| 68172-02060 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN LH |
1 | ||
| 68171-02090 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN RH |
1 | ||
| Common parts | ||||
| 90159-50381 | ||||
| 90164-50032 | ||||
| 90164-60018 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6703 | ||||
