ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )

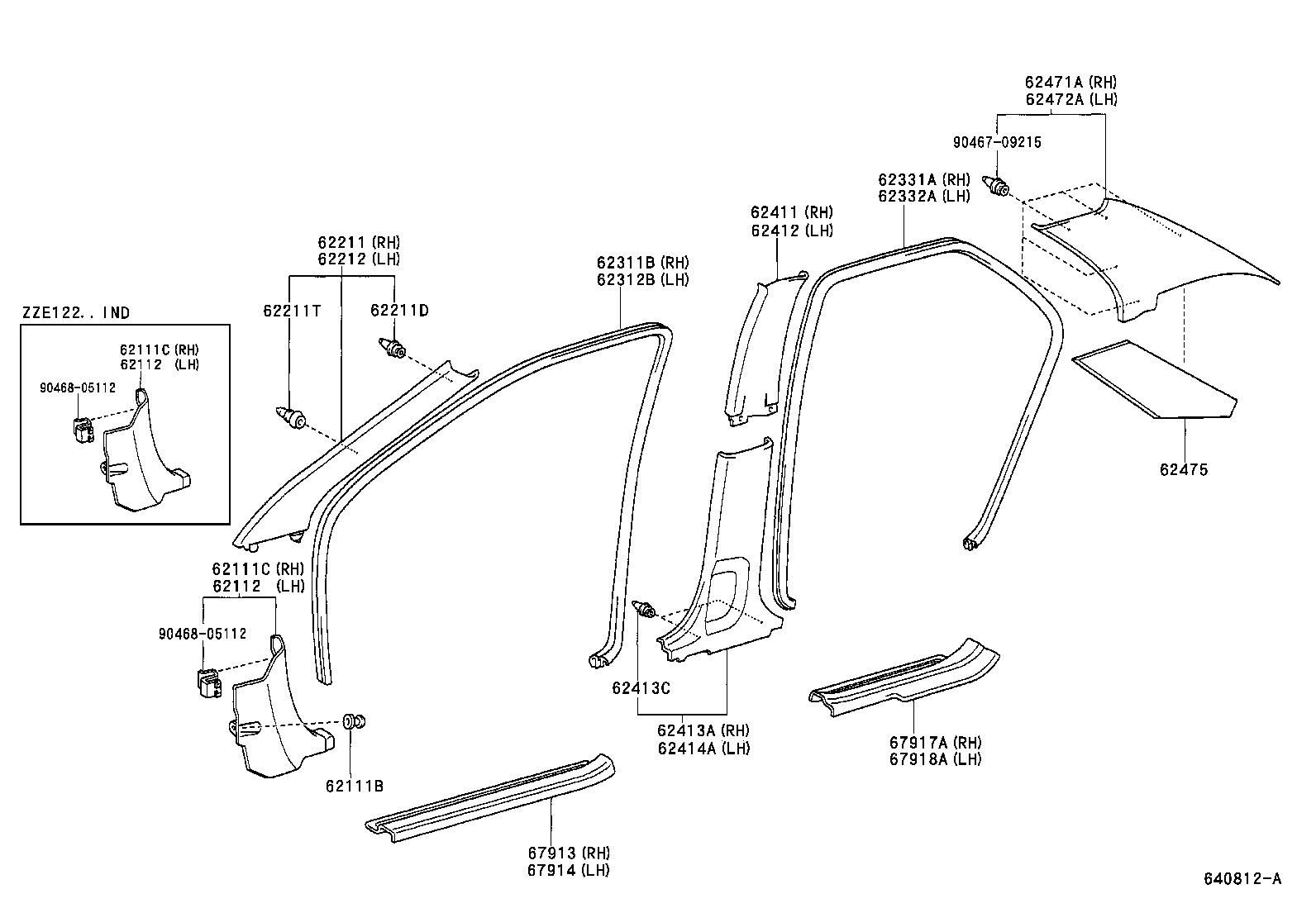

Click highlighted areas on diagram

diagram 62111B 62111C 62112 62211 62211D 62211T 62212 62311B 62312B 62331A 62332A 62411 62412 62413A 62413C 62414A 62471A 62472A 62475 67913 67914 67917A 67918A 9046709215 9046805112
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06120

NZE120,ZZE12#

 2
90467-06120

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-02070A0

ZZE122..IND

IVORY,TRIM0#

 1
62111-02070A0

ZZE122..IND

IVORY,TRIM0#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-02070A0

ZZE122..IND

IVORY,TRIM0#

 1
62112-02070A0

ZZE122..IND

IVORY,TRIM0#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-02050A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
62211-02050A0

ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,IND,MA,TAIW,TH

IVORY,TRIM0#

 1
62211-02051A0

ZZE12#..IND,MA

IVORY,TRIM0#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10188

NZE120,ZZE12#

 2
90467-10188

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10192

NZE120,ZZE12#

 2
90467-10192

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
62212 - GARNISH, FRONT PILLAR, LH
62212-02050A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
62212-02050A0

ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,IND,MA,TAIW,TH

IVORY,TRIM0#

 1
62212-02051A0

ZZE12#..IND,MA

IVORY,TRIM0#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-02050A0

ZZE122..RHD;ZZE121..16E..TH;ZZE121..ATM..MA

IVORY,TRIM0#

 1
62311-02051A0

ZZE12#..IND,MA

IVORY,TRIM0#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-02051A0

ZZE12#..IND,MA

IVORY,TRIM0#

 1
62312-02050A0

ZZE122..RHD;ZZE121..16E..TH;ZZE121..ATM..MA

IVORY,TRIM0#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-02050A0

ZZE122..IND,MA;ZZE121..ATM..MA

IVORY,TRIM0#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-02050A0

ZZE122..IND,MA;ZZE121..ATM..MA

IVORY,TRIM0#

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-02040A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
62411-02041A0

ZZE12#..IND,MA

IVORY,TRIM0#

 1
62411-02040A0

ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,IND,MA,TAIW,TH

IVORY,TRIM0#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-02040A0

ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,IND,MA,TAIW,TH

IVORY,TRIM0#

 1
62412-02040A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
62412-02041A0

ZZE12#..IND,MA

IVORY,TRIM0#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-02040A0

ZZE12#..16E,18E,18G

IVORY,TRIM0#

 1
62413-02050A0

ZZE122..IND

IVORY,TRIM0#

 1
62413-02040B0

ZZE12#

STONE,TRIM1#

 1
62413-02050A0

ZZE122..IND

IVORY,TRIM0#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-09215

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-02040B0

ZZE12#

STONE,TRIM1#

 1
62414-02050A0

ZZE122..IND

IVORY,TRIM0#

 1
62414-02040A0

ZZE12#..16E,18E,18G

IVORY,TRIM0#

 1
62414-02050A0

ZZE122..IND

IVORY,TRIM0#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-02100A0

ZZE122..IND,MA;ZZE121..ATM..MA

IVORY,TRIM0#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-02100A0

ZZE122..IND,MA;ZZE121..ATM..MA

IVORY,TRIM0#

 1
62475 - PAD, ROOF SIDE INNER GARNISH
62475-02100

ZZE122..IND

 2
62475-02100

ZZE122..IND

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-02130A0

ZZE122..IND

IVORY,TRIM0#

 1
67913-02140A0

ZZE122..(18E,18G)..IND

IVORY,TRIM0#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-02130A0

ZZE122..IND

IVORY,TRIM0#

 1
67914-02140A0

ZZE122..(18E,18G)..IND

IVORY,TRIM0#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-02140A0

ZZE122..IND

IVORY,TRIM0#

 1
67917-02051A0

ZZE122..(18E,18G)..IND

IVORY,TRIM0#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-02140A0

ZZE122..IND

IVORY,TRIM0#

 1
67918-02051A0

ZZE122..(18E,18G)..IND

IVORY,TRIM0#

 1
Common parts
90467-09215
90468-05112
