ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0103- )

Click highlighted areas on diagram

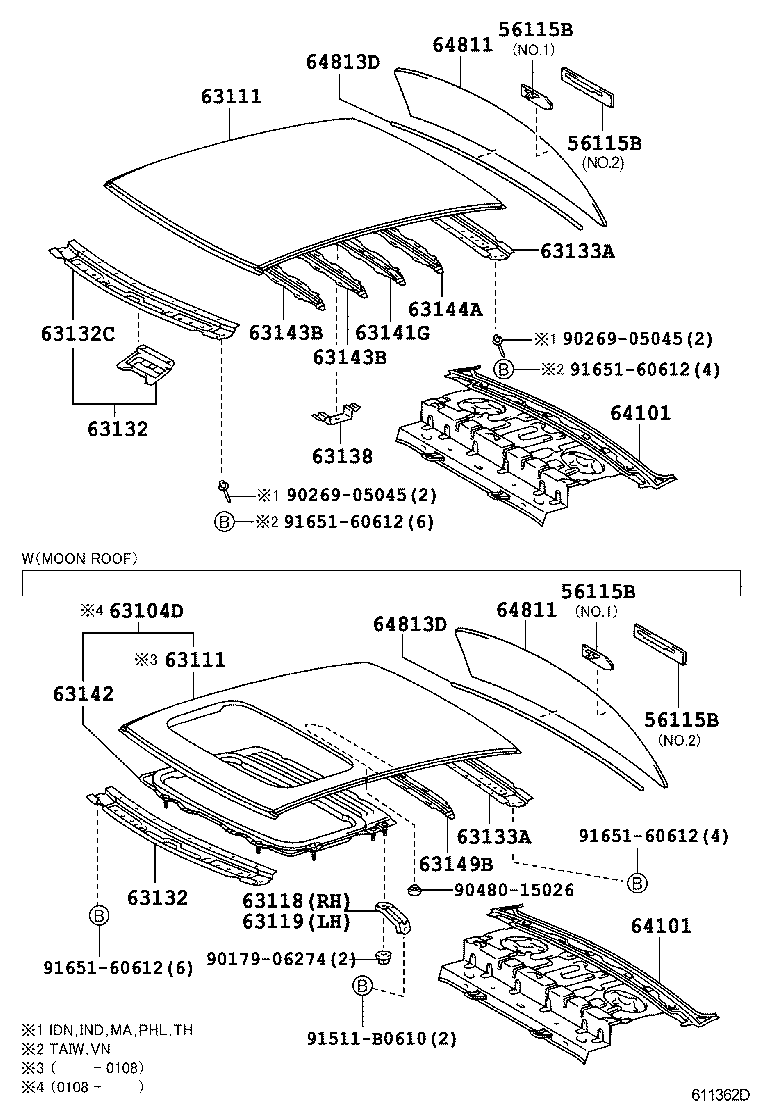

ROOF PANEL

diagram 56115B 56115B 56115B 56115B 63104D 63111 63111 63118 63119 63132 63132 63132C 63133A 63133A 63138 63141G 63142 63143B 63143B 63144A 63149B 64101 64101 64811 64811 64813D 64813D 9017906274 9026905045 9026905045 9048015026 91511B0610 9165160612 9165160612 9165160612 9165160612
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.2

 2
56115-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.2

 2
56115-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.2

 2
56115-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.2

 2
56115-02020

ZZE121..ATM..MA;ZZE122..IND,MA,VN

NO.1

 2
63111 - PANEL, ROOF
63111-12760

ZZE122..IND,MA,VN;ZZE12#..ATM..(16E,18E)..(MA,TAIW)

W(MAP LAMP)

 1
63111 - PANEL, ROOF
63111-12760

ZZE122..IND,MA,VN;ZZE12#..ATM..(16E,18E)..(MA,TAIW)

W(MAP LAMP)

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12190

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12190

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12260

ZZE12#..IDN,IND,MA,PHL,TH

 1
63133-12260

ZZE122..IND,MA;ZZE121..ATM..MA

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12260

ZZE12#..IDN,IND,MA,PHL,TH

 1
63133-12260

ZZE122..IND,MA;ZZE121..ATM..MA

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-12011

ZZE122..IND,MA,VN;ZZE12#..ATM..(16E,18E)..(MA,TAIW)

 2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-12260

ZZE122..IND,MA,VN;ZZE12#..ATM..(16E,18E)..(MA,TAIW)

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

ZZE122..IND,MA,VN;ZZE12#..ATM..(16E,18E)..(MA,TAIW)

 2
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

ZZE122..IND,MA,VN;ZZE12#..ATM..(16E,18E)..(MA,TAIW)

 2
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12080

ZZE122..IND,MA,VN;ZZE12#..ATM..(16E,18E)..(MA,TAIW)

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12780

ZZE122..(18E,18G)..(IND,MA,VN)

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12780

ZZE122..(18E,18G)..(IND,MA,VN)

 1
64811 - GLASS, BACK WINDOW
64811-02230

ZZE122..IND

*EHTT,T=3.1,GREEN

 1
64811-02140

ZZE122..IND

*EHTT,T=3.1,GREEN

 1
64811 - GLASS, BACK WINDOW
64811-02230

ZZE122..IND

*EHTT,T=3.1,GREEN

 1
64811-02140

ZZE122..IND

*EHTT,T=3.1,GREEN

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-47010

ZZE122..IND

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-47010

ZZE122..IND

 1
Common parts
90179-06274
90269-05045
90480-15026
91511-B0610
91651-60612
