ZZE122R-GEPNKX (2003)
Toyota Corolla (Asia/India)

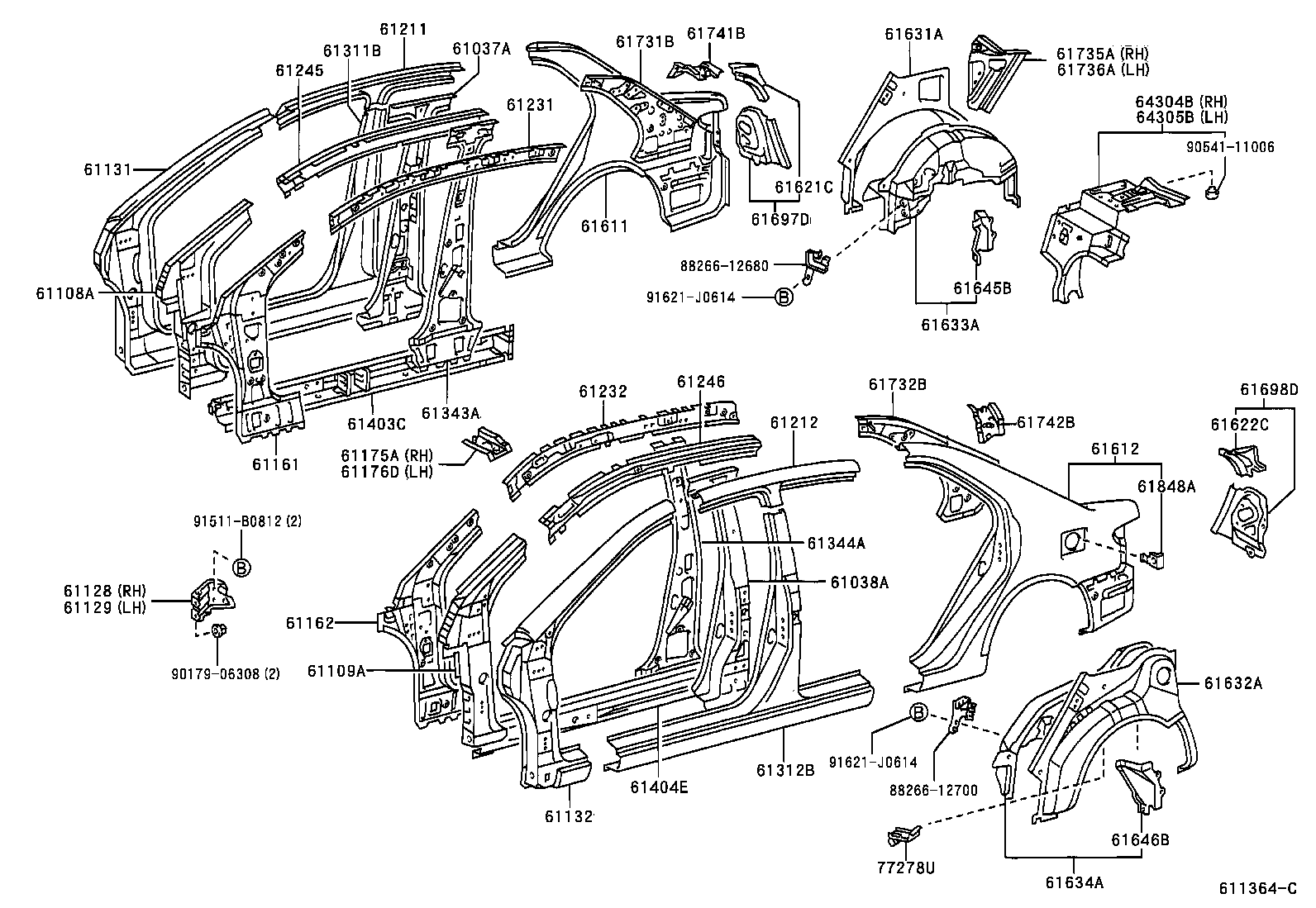

ILLUST NO. 1 OF 2(0103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12904 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61037-12907 |
NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12904 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61038-12907 |
NZE120,ZZE12# |
1 | ||
| 61038-12907 |
NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12230 |
NZE120,ZZE12# |
1 | ||
| 61108-12230 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12220 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61109-12220 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-12190 |
ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL) |
1 | ||
| 61103-12190 |
NZE120,ZZE12# |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-12220 |
NZE120,ZZE12# |
1 | ||
| 61104-12220 |
ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL) |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12620 |
ZZE122..IND,VN |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12630 |
ZZE121..16;ZZE121..16E..(MA,PHL,TAIW);ZZE122..IDN,IND,MA,TAIW,VN |
1 | ||
| 61132-12630 |
ZZE122..IND,VN |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-12300 |
ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL) |
1 | ||
| 61023-12320 |
NZE120,ZZE12# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-12300 |
ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL) |
1 | ||
| 61024-12320 |
NZE120,ZZE12# |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-12140 |
NZE120,ZZE12# |
1 | ||
| 61175-12170 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-12180 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| 61176-12150 |
NZE120,ZZE12# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12420 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61211-12420 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12420 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61212-12420 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-1A140 |
ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL) |
1 | ||
| 61231-1A140 |
ZZE12#..IDN,IND,MA,PHL,TH |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-1A020 |
ZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL) |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-12040 |
NZE120,ZZE12# |
1 | ||
| 61245-12040 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-12040 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61246-12040 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12340 |
ZZE122..IND,VN |
1 | ||
| 61311-12340 |
ZZE121..16;ZZE121..(16E,16J)..(MA,PHL,TAIW);NZE120,ZZE122..IDN,IND,MA,TAIW,VN |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12380 |
ZZE121..16;ZZE121..(16E,16J)..(MA,PHL,TAIW);NZE120,ZZE122..IDN,IND,MA,TAIW,VN |
1 | ||
| 61312-12380 |
ZZE122..IND,VN |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12250 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61343-12250 |
NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12250 |
NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN |
1 | ||
| 61344-12250 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-12030 |
NZE120,ZZE12# |
1 | ||
| 61403-12030 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-12030 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61404-12030 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1H140 |
ZZE121..16;ZZE121..(16E,16J)..(MA,PHL,TAIW);NZE120,ZZE122..IDN,IND,MA,TAIW,VN |
1 | ||
| 61601-1H140 |
ZZE121..MTM..PHL;ZZE12#..(16,18E)..TH;ZZE12#..IDN,IND,TAIW,VN;ZZE121..ATM..16E..(PHL,TH) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1E870 |
ZZE121..16;ZZE121..(16E,16J)..(MA,PHL,TAIW);NZE120,ZZE122..IDN,IND,MA,TAIW,VN |
1 | ||
| 61602-1E870 |
ZZE121..MTM..PHL;ZZE12#..(16,18E)..TH;ZZE12#..IDN,IND,TAIW,VN;ZZE121..ATM..16E..(PHL,TH) |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-12470 |
ZZE122;ZZE121..MTM..16J..PHL;ZZE121..ATM..(MA,TAIW);ZZE121..(16,16E)..(PHL,TH) |
1 | ||
| 61621-12470 |
NZE120,ZZE12# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-12470 |
ZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J |
1 | ||
| 61622-12470 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12410 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61631-12410 |
NZE120,ZZE12# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12430 |
ZZE121..16J..TAIW;NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN |
1 | ||
| 61632-12430 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-02915 |
ZZE122..(18E,18G)..IND |
1 | ||
| 61607-02915 |
ZZE121..16E..PHL;ZZE122..(18E,18G)..(IDN,IND,MA,PHL,VN) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-02913 |
ZZE122..(18E,18G)..IND |
1 | ||
| 61608-02913 |
ZZE122..(18E,18G)..(IND,MA,VN) |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12150 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61645-12150 |
NZE120,ZZE12# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12140 |
NZE120,ZZE12# |
1 | ||
| 61646-12140 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-02904 |
ZZE121..16E..(PHL,TH);ZZE121..MTM..16J..PHL;ZZE122..IDN,IND,MA,PHL,TH,VN;ZZE12#..ATM..(16E,16J,18E)..(MA,TAIW) |
1 | ||
| 61697-02901 |
ZZE122..IND |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-02904 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61698-02901 |
ZZE122..IND |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12760 |
ZZE122..IND |
1 | ||
| 61731-12760 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12710 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12380 |
NZE120,ZZE12# |
1 | ||
| 61735-12380 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12380 |
NZE120,ZZE12# |
1 | ||
| 61736-12380 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 61741B - REINFORCEMENT, BACK WINDOW OPENING, RH | ||||
| 61741-12130 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| 61742B - REINFORCEMENT, BACK WINDOW OPENING, LH | ||||
| 61742-12100 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-52010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH | ||||
| 64304-02050 |
ZZE122..(18E,18G)..IND |
1 | ||
| 64304-02050 |
ZZE122..(18E,18G)..IND |
1 | ||
| 64304-12040 |
ZZE122..(18E,18G)..IND |
1 | ||
| 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH | ||||
| 64305-12040 |
ZZE122..(18E,18G)..IND |
1 | ||
| 64305-02050 |
ZZE122..(18E,18G)..IND |
1 | ||
| 64305-02050 |
ZZE122..(18E,18G)..IND |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-32050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 77278-32050 |
NZE120,ZZE12# |
1 | ||
| Common parts | ||||
| 88266-12680 | ||||
| 88266-12700 | ||||
| 90179-06308 | ||||
| 90541-11006 | ||||
| 91511-B0812 | ||||
| 91621-J0614 | ||||
ILLUST NO. 2 OF 2(0103- )
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-28010 |
NZE120,ZZE12#..IND,MA,PHL,VN |
2 | ||
| 61824-02140 |
ZZE122..IND |
2 | ||
| 61815-32020 |
NZE120,ZZE12# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02130 |
ZZE122..IND |
4 | ||
| 61824-12040 |
ZZE12#..IDN,IND,TAIW,TH |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-50020 |
NZE120,ZZE12# |
2 | ||
| 61824-02150 |
ZZE122..IND |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-50020 |
NZE120,ZZE12# |
2 | ||
| 61824-02150 |
ZZE122..IND |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
NZE120,ZZE12#..IND,MA,PHL,VN |
2 | ||
| 61824-12040 |
NZE120,ZZE12# |
2 | ||
| 61824-02130 |
ZZE122..IND |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
NZE120,ZZE12# |
2 | ||
| 62152-12050 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
8 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12180 |
NZE120,ZZE12# |
2 | ||
| 62554-02070 |
ZZE122..IND |
4 | ||
| Common parts | ||||
| 58578-02010 | ||||
| 58578-02020 | ||||
| 61824-50020 | ||||
| 66244-12010 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90333-T0003 | ||||
| 90950-01310 | ||||
| 90950-01637 | ||||
| 90950-01821 | ||||
| 90950-01864 | ||||
| 90950-01919 | ||||
| 90950-01959 | ||||
