ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )

Click highlighted areas on diagram

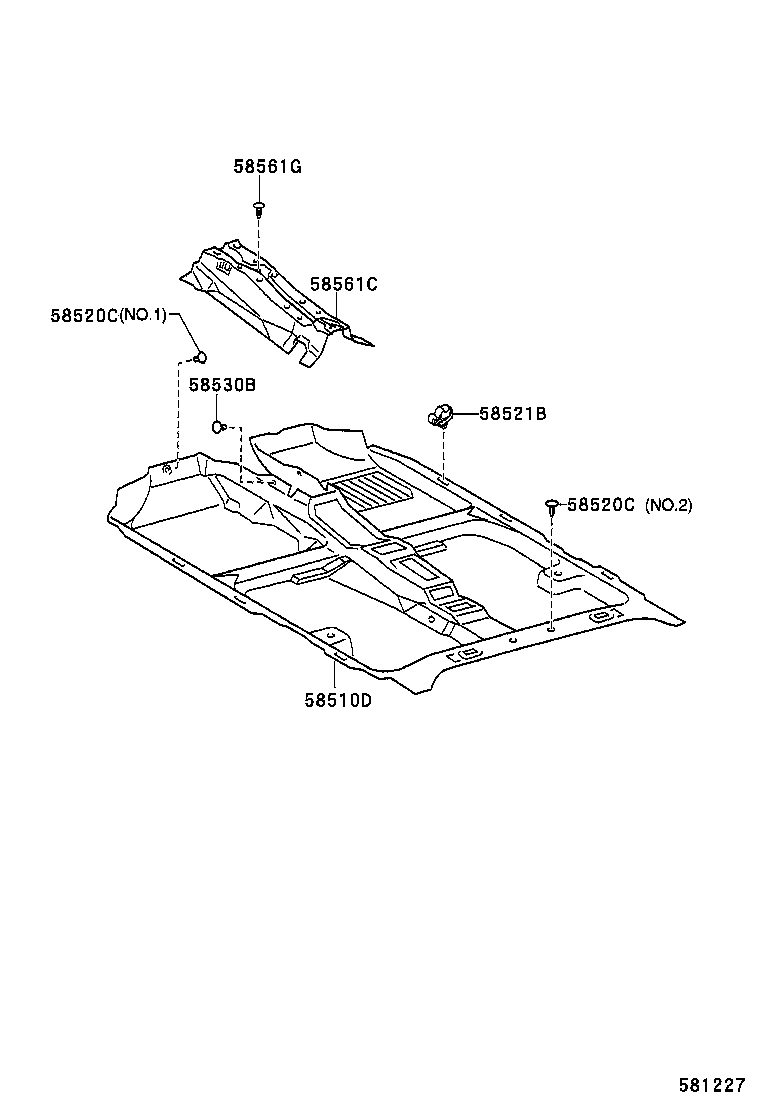

diagram 58510D 58520C 58520C 58521B 58530B 58561C 58561G
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-02650A0

ZZE122..IND

IVORY,TRIM0#

 1
58510-02650A0

ZZE122..IND

IVORY,TRIM0#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06001C0

ZZE122..IND,MA;ZZE121..ATM..MA

BLACK,TRIM0#,NO.1

 1
90467-07049C0

ZZE122..IND

BLACK,NO.2

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06001C0

ZZE122..IND,MA;ZZE121..ATM..MA

BLACK,TRIM0#,NO.1

 1
90467-07049C0

ZZE122..IND

BLACK,NO.2

 2
58521B - HOOK, FLOOR CARPET
58521-12130

NZE120,ZZE12#

 6
58521-12130

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09118

ZZE122..IND

 2
90467-T0014

ZZE122..IND

 2
90467-09118

NZE120,ZZE12#

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-02010

ZZE122..IND

 1
58561-02010

ZZE122..IND

 1
58561G - CLIP(FOR FRONT FLOOR SILENCER)
90467-06077

NZE120,ZZE12#

 2
90467-06077

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
