ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )IND

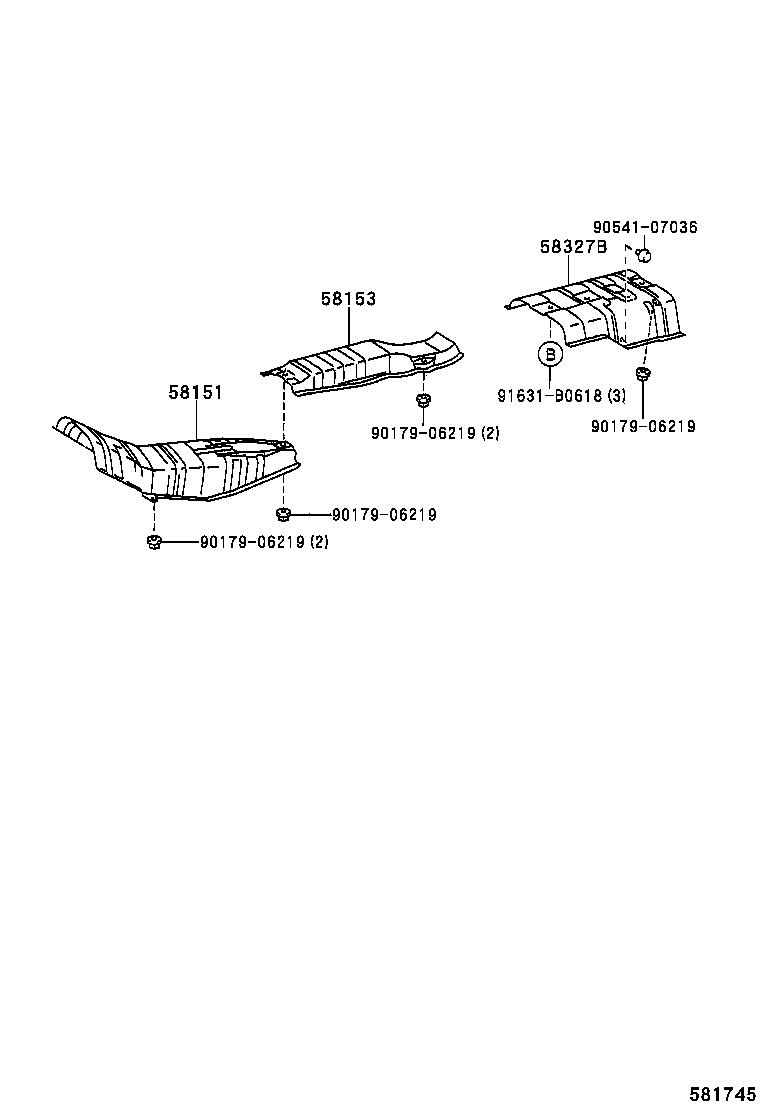

Click highlighted areas on diagram

diagram 58151 58153 58327B 9017906219 9017906219 9017906219 9017906219 9054107036 91631B0618
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02070

ZZE122..IND

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-02070

ZZE122..IND

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-02100

ZZE122..IND

 1
58327-02100

ZZE122..IND

 1
Common parts
90179-06219
90541-07036
91631-B0618
