ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )IND

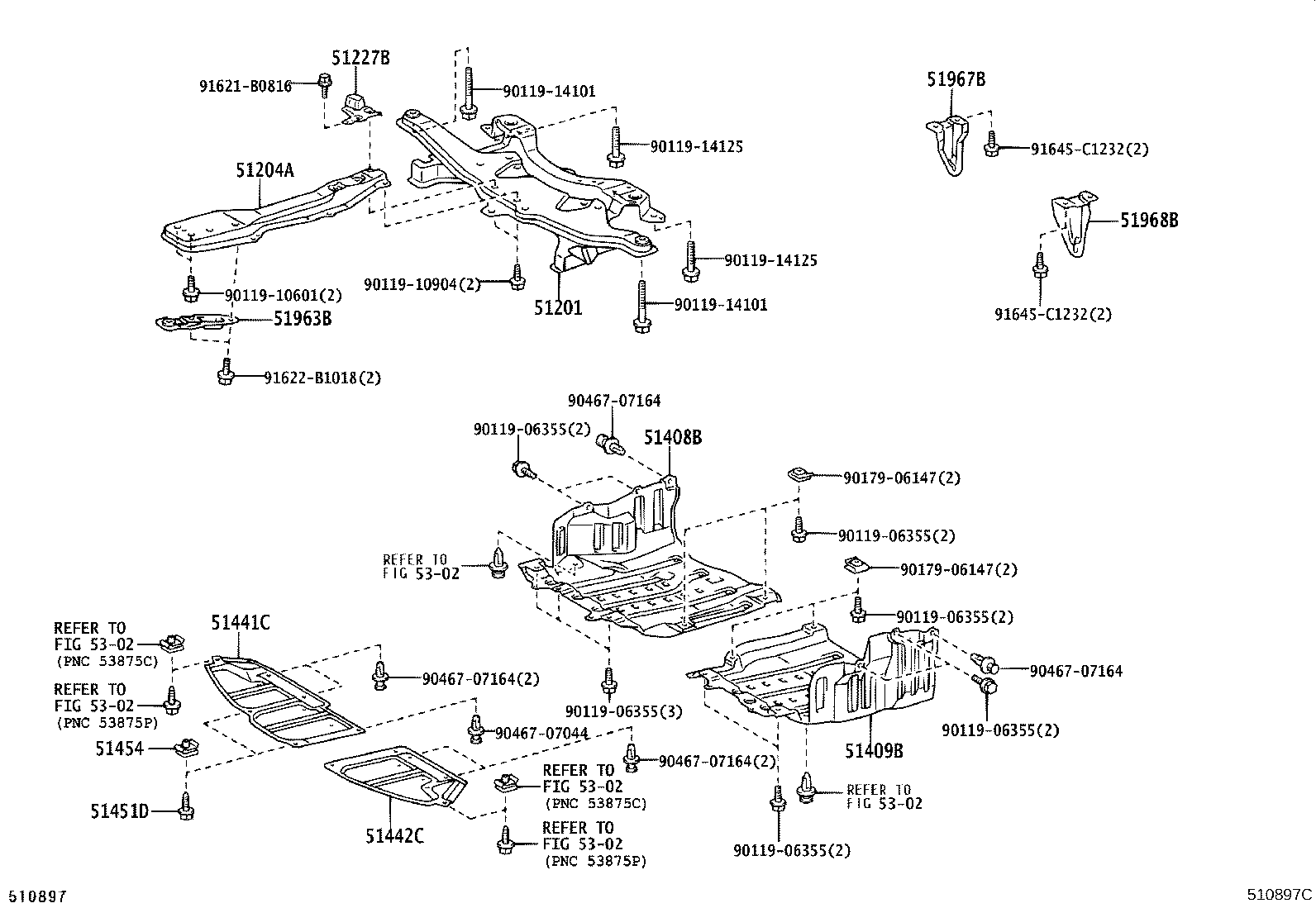

Click highlighted areas on diagram

diagram 51201 51204A 51227B 51408B 51409B 51441C 51442C 51451D 51454 51963B 51967B 51968B 5302 5302 5302 5302 5302 5302 9011906355 9011906355 9011906355 9011906355 9011906355 9011906355 9011910601 9011910904 9011914101 9011914101 9011914125 9011914125 9017906147 9017906147 9046707044 9046707164 9046707164 9046707164 9046707164 91621B0816 91622B1018 91645C1232 91645C1232
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12431

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
51201-12431

NZE120,ZZE12#

 1
51201-20350

NZE120,ZZE12#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12150

ZZE122

 1
51204-12150

ZZE122..IND,MA,VN

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-12070

ZZE122

 1
51227-12070

ZZE122..IND,MA,VN

 1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-02020

ZZE122..IND

 1
51408-02020

ZZE122..IND

 1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-02020

ZZE122..IND

 1
51409-02020

ZZE122..IND

 1
51441C - COVER, ENGINE UNDER, RH
51441-02130

ZZE122..IND

 1
51441-02130

ZZE122..IND

 1
51442C - COVER, ENGINE UNDER, LH
51442-02220

ZZE122..IND

 1
51442-02220

ZZE122..IND

 1
51451D - SCREW, NO.1
90159-60488

NZE120,ZZE12#

 2
51454 - CLIP
90467-05138

NZE120,ZZE12#

 2
51963B - HOOK, TRANSPORT, FRONT RH
51963-02070

ZZE122..IND,MA;ZZE121..ATM..MA

 1
51967B - HOOK, TRANSPORT, REAR RH
51967-12270

ZZE122..IND,MA;ZZE121..ATM..MA

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-02060

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
Common parts
90119-06355
90119-10601
90119-10904
90119-14101
90119-14125
90179-06147
90467-07044
90467-07164
91621-B0816
91622-B1018
91645-C1232
Linked diagrams
5302
