ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )

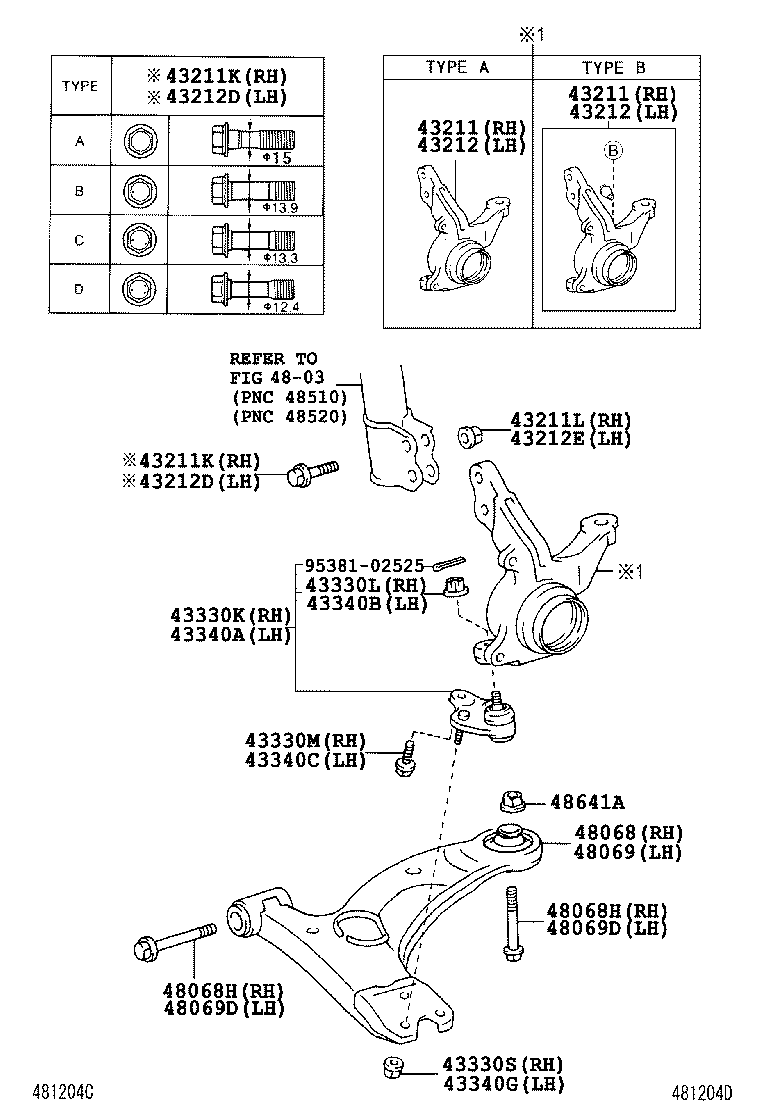

Click highlighted areas on diagram

diagram 43211 43211 43211K 43211K 43211L 43212 43212 43212D 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068H 48069 48069D 48069D 48641A 9538102525
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43211-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43211 - KNUCKLE, STEERING, RH
43211-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43211-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15006

ZZE122..IND

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
90105-15001

ZZE122..IND

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15004

ZZE122..IND

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15001

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15005

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
90105-15005

ZZE122..IND

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
90105-15004

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15006

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15006

ZZE122..IND

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
90105-15001

ZZE122..IND

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15004

ZZE122..IND

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15001

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15005

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
90105-15005

ZZE122..IND

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
90105-15004

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15006

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15006

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
90179-15006

ZZE122..IND

 2
43212 - KNUCKLE, STEERING, LH
43212-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43212-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43212 - KNUCKLE, STEERING, LH
43212-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43212-02060

ZZE122..IND

TYPE A:REFER ILLUST.

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

ZZE122..IND

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15006

ZZE122..IND

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
90105-15004

ZZE122..IND

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15004

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15006

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
90105-15001

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15005

ZZE122..IND

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
90105-15005

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

ZZE122..IND

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15006

ZZE122..IND

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
90105-15004

ZZE122..IND

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15004

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.9,TYPE B:REFER TO ILLUSTRATION

 1
90105-15006

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=12.4,TYPE D:REFER TO ILLUSTRATION

 1
90105-15001

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=15.0,TYPE A:REFER TO ILLUSTRATION

 2
90105-15005

ZZE122..IND

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
90105-15005

ZZE121..ATM..MA;ZZE122..IND,MA,VN

OD=13.3,TYPE C:REFER TO ILLUSTRATION

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15006

ZZE122..IND

 2
90179-15006

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09200

ZZE122..IND

 1
43330-09200

ZZE122..IND

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ZZE122..IND

 1
90171-14003

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12156

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
90105-12156

ZZE122..IND

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12070

ZZE122..IND

 2
90179-12070

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09200

ZZE122..IND

 1
43330-09200

ZZE122..IND

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

NZE120,ZZE12#

 1
90171-14003

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12156

ZZE122..IND

 1
90105-12156

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12070

ZZE122..IND

 2
90179-12070

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-02090

ZZE122..IND

 1
48068-02090

ZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)

 1
48068-02210

ZZE122..IND

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
90119-14086

ZZE122..IND

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
90119-14086

ZZE122..IND

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-02090

ZZE122..IND

 1
48069-02090

ZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)

 1
48069-02210

ZZE122..IND

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14086

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
90119-14086

ZZE122..IND

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14086

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
90119-14086

ZZE122..IND

 2
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14068

ZZE122..IND

 2
90179-14068

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 2
Common parts
95381-02525
Linked diagrams
4803
