ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

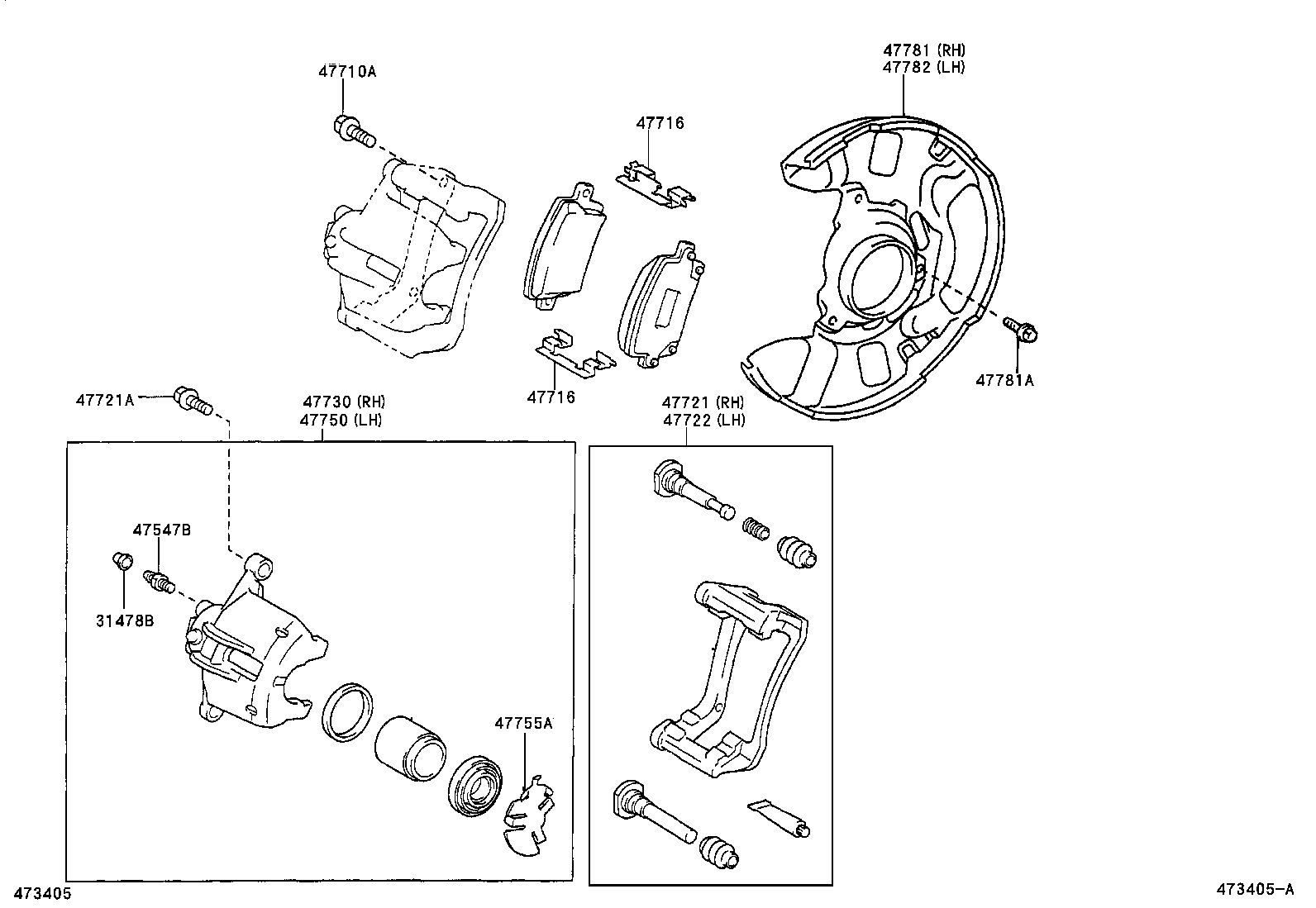

ILLUST NO. 1 OF 2(0301- )IND

Click highlighted areas on diagram

diagram 31478B 47547B 47710A 47716 47716 47721 47721A 47722 47730 47750 47755A 47781 47781A 47782
Part # Description Qty Price
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-02050

ZZE122..IND

 2
47548-02050

ZZE122..IND

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90080-93014

ZZE122..IND

 2
90080-93014

ZZE122..IND

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

NZE120,ZZE12#

*12-1.25PX29.5-23

 4
90105-12208

ZZE121..ATM..MA;ZZE122..IND,MA,VN

*12-1.25PX29.5-23

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-02170

ZZE122..IND

 4
47716-02170

ZZE122..IND

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-02170

ZZE122..IND

 4
47716-02170

ZZE122..IND

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-09141

ZZE122..IND

 1
47721-09440

ZZE122..IND

 1
47721-09141

ZZE122..IND

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90080-10190

ZZE122..IND

*8-1.00PX22-14.5

 4
90080-10190

ZZE122..IND

*8-1.00PX22-14.5

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-09051

ZZE122..IND

 1
47721-09450

ZZE122..IND

 1
47722-09051

ZZE122..IND

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-02200

ZZE122..IND

 1
47730-02200

ZZE122..IND

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-02200

ZZE122..IND

 1
47750-02200

ZZE122..IND

 1
47755A - INSULATOR, DISC BRAKE HEAT
47755-02060

ZZE122..IND

 2
47755-02060

ZZE122..IND

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-02080

ZZE122..IND

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

NZE120,ZZE12#..IDN,IND,MA,PHL,TAIW,VN

 6
90119-06227

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-02080

ZZE122..IND

 1

ILLUST NO. 2 OF 2(0301- )IND

Click highlighted areas on diagram

diagram 04465 04479 04947 04952 04953
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-12590

ZZE12#

MARK AISIN PC554

 1
04465-02110

ZZE122..IND

MARK TRW PAGID 648

 1
04465-02110

ZZE122..IND

MARK TRW PAGID 648

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-02110

ZZE122..IND

 1
04479-02160

ZZE122..IND

 1
04478-02290

ZZE122..IND

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-02090

ZZE122..IND

 1
04947-02090

ZZE122..IND

 1
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-02090

ZZE122..IND

 1
04952-02090

ZZE122..IND

 1
04952-02270

ZZE122..IND

 1
04953 - BOOT KIT, FRONT DISC BRAKE CYLINDER SLIDE PIN
04953-02090

ZZE122..IND

 1
