ZZE122R-GEPNKX (2003)
Toyota Corolla (Asia/India)

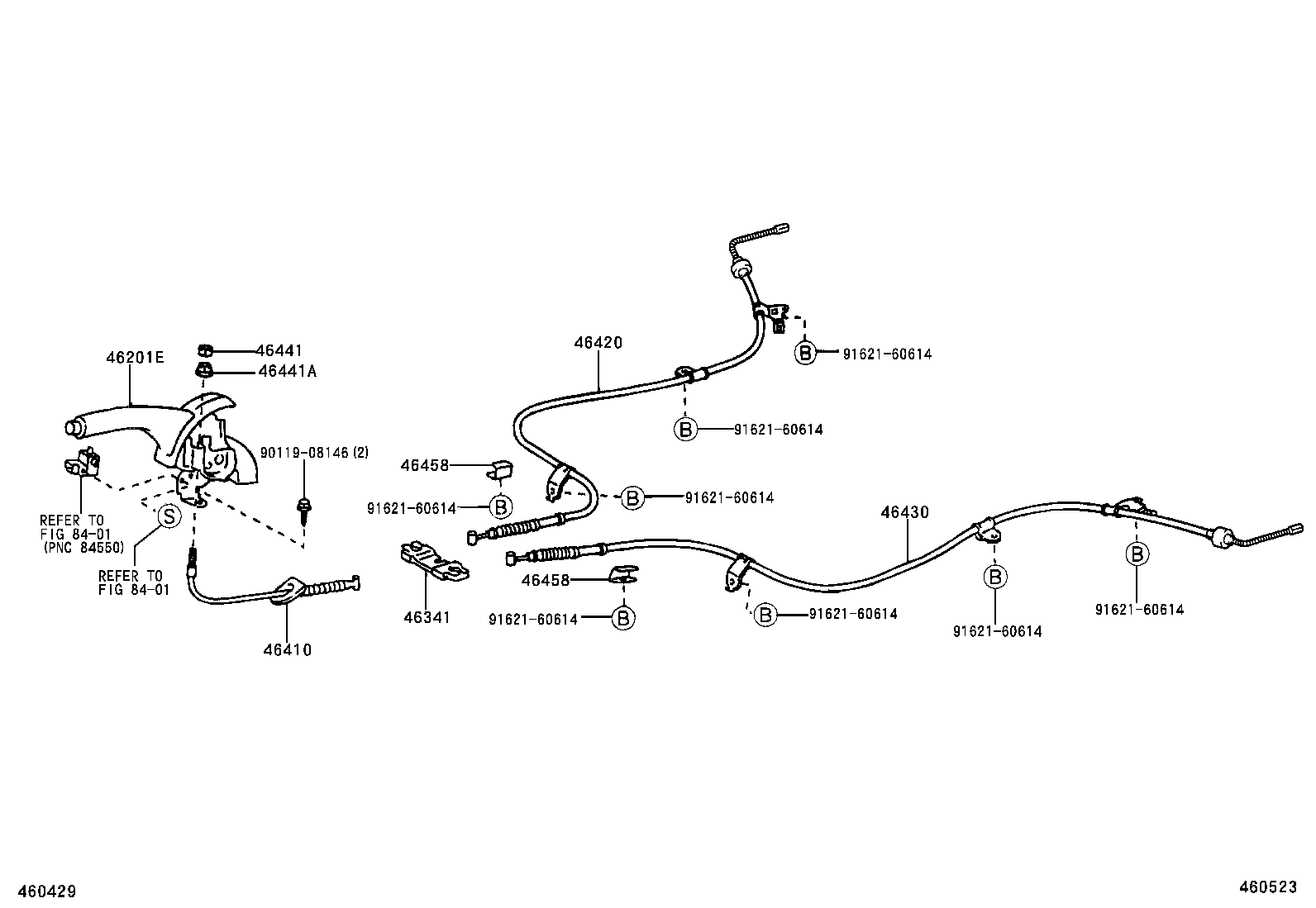

ILLUST NO. 1 OF 2(0301- )IND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-02080E0 |
ZZE122..(18E,18G)..(IND,MA) CHROME PLATED,SANDAL WOOD,TRIM0# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-20070 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 46341-20070 |
ZZE122..IND |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-02060 |
ZZE122..IND |
1 | ||
| 46410-02060 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12541 |
ZZE122..IND |
1 | ||
| 46420-12541 |
ZZE122..IND |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12441 |
ZZE122..IND |
1 | ||
| 46430-12441 |
ZZE122..IND |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90179-06299 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 90179-06299 |
ZZE122..IND |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06171 |
ZZE122..IND |
1 | ||
| 90179-06171 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
ZZE122..IND |
2 | ||
| 46458-28010 |
ZZE122..IND,VN |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
ZZE122..IND |
2 | ||
| 46458-28010 |
ZZE122..IND,VN |
2 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

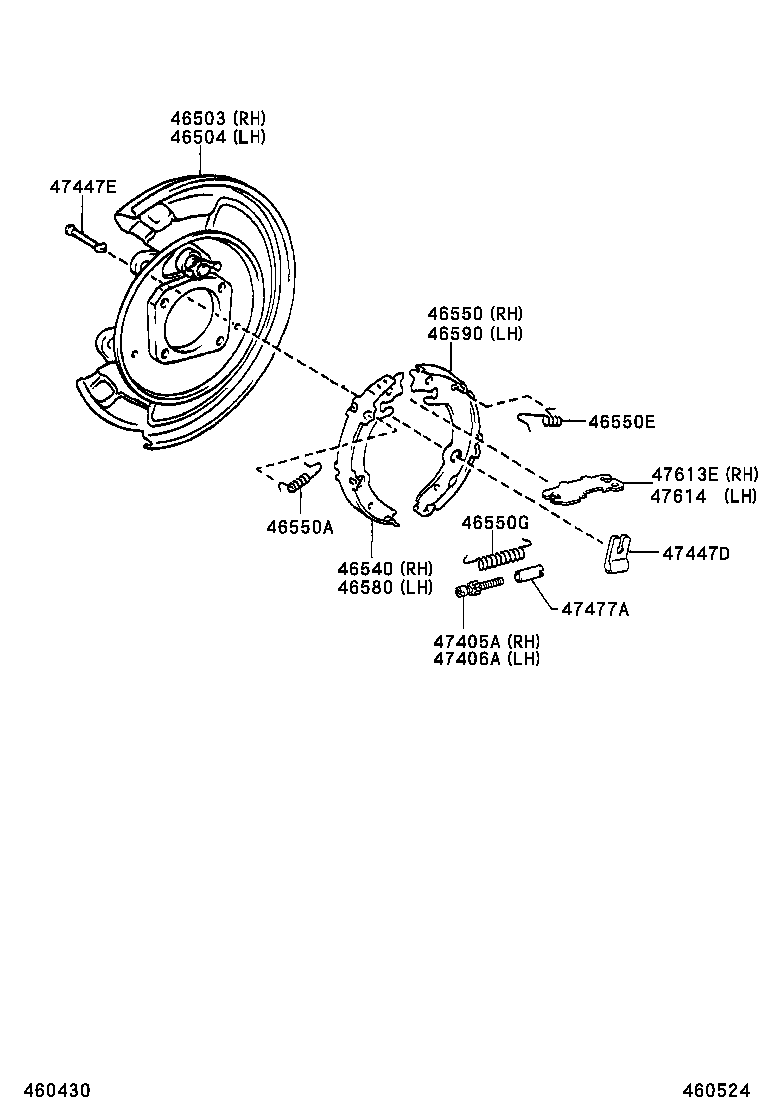

ILLUST NO. 2 OF 2(0301- )IND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-02060 |
ZZE122..IND |
1 | ||
| 46503-02060 |
ZZE122..IND |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-02060 |
ZZE122..IND |
1 | ||
| 46504-02060 |
ZZE122..IND |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-02070 |
ZZE122..IND |
1 | ||
| 46540-02070 |
ZZE122..IND |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-02080 |
ZZE122..IND |
1 | ||
| 46550-02080 |
ZZE122..IND |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 47459-02100 |
ZZE122..IND |
2 | ||
| 47459-02100 |
ZZE122..IND |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 47459-02110 |
ZZE122..IND |
2 | ||
| 47459-02110 |
ZZE122..IND |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 47459-02120 |
ZZE122..IND |
2 | ||
| 47459-02120 |
ZZE122..IND |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-02070 |
ZZE122..IND |
1 | ||
| 46540-02070 |
ZZE122..IND |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-02050 |
ZZE122..IND |
1 | ||
| 46590-02050 |
ZZE122..IND |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-02050 |
ZZE122..IND |
1 | ||
| 47405-02050 |
ZZE122..IND |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47405-02050 |
ZZE122..IND |
1 | ||
| 47405-02050 |
ZZE122..IND |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-02050 |
ZZE122..IND |
4 | ||
| 47446-02050 |
ZZE122..IND |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-02080 |
ZZE122..IND |
4 | ||
| 47447-02080 |
ZZE122..IND |
4 | ||
| 47477A - PIECE, SHOE SUPPORT | ||||
| 47477-02090 |
ZZE122..IND |
2 | ||
| 47477-02090 |
ZZE122..IND |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-02100 |
ZZE122..IND |
1 | ||
| 47613-02100 |
ZZE122..IND |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-02100 |
ZZE122..IND |
1 | ||
| 47613-02100 |
ZZE122..IND |
1 | ||
