ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )

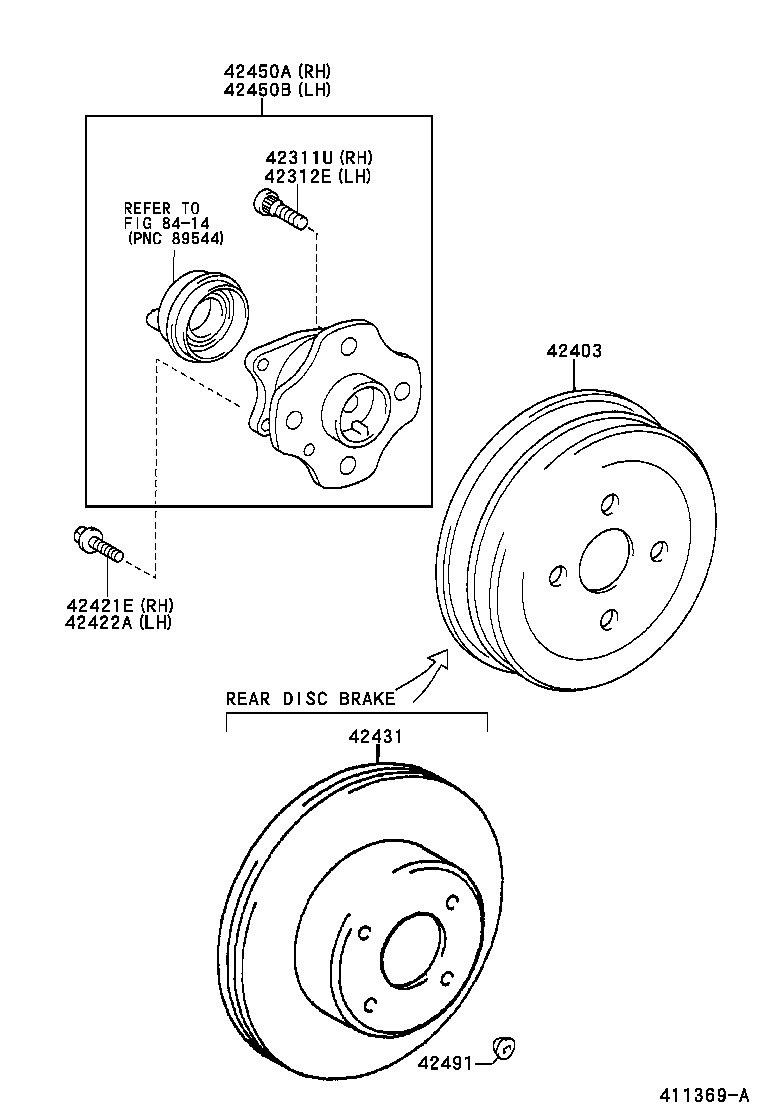

Click highlighted areas on diagram

W(ABS)

diagram 42311U 42312E 42403 42421E 42422A 42431 42450A 42450B 42491 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
90942-02047

NZE120,ZZE12#..IDN,IND,MA,PHL,TAIW,VN

 8
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
90942-02047

NZE120,ZZE12#..IDN,IND,MA,PHL,TAIW,VN

 8
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10507

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
90105-10507

ZZE122..IND

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10507

ZZE122..IND

 4
90105-10507

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
42431 - DISC, REAR
42431-02140

ZZE122..IND

 2
42431-02140

ZZE122..IND

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-02100

ZZE122..IND,MA;ZZE121..ATM..MA

 1
42450-02100

ZZE122..IND

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-02100

ZZE122..IND,MA;ZZE121..ATM..MA

 1
42450-02100

ZZE122..IND

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

ZZE122..IND

 2
47491-22020

ZZE122..IND

 2
Linked diagrams
8414

(0103- )

Click highlighted areas on diagram

diagram 42311U 42312E 42403 42410 42421E 42422A 42431 42440 42491
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
90942-02047

NZE120,ZZE12#..IDN,IND,MA,PHL,TAIW,VN

 8
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
90942-02047

NZE120,ZZE12#..IDN,IND,MA,PHL,TAIW,VN

 8
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10507

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
90105-10507

ZZE122..IND

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10507

ZZE122..IND

 4
90105-10507

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 4
42431 - DISC, REAR
42431-02140

ZZE122..IND

 2
42431-02140

ZZE122..IND

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

ZZE122..IND

 2
47491-22020

ZZE122..IND

 2
