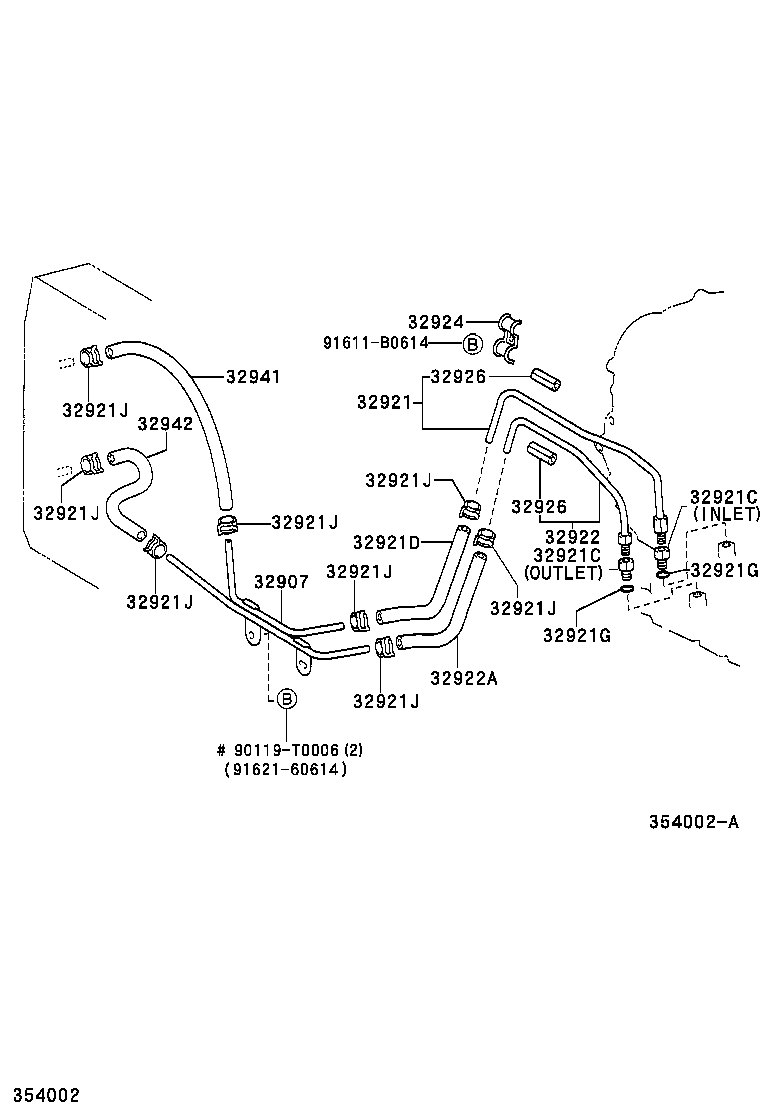

Toyota Corolla (asia/india) ZZE122 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-12020	ZZE122..18G..IND	01/2004 - 12/2999	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12460	ZZE122..ATM..(IDN,IND,MA,PHL,TH)	11/2003 - 11/2005	1
32921-13030	ZZE122..18G..IND	11/2005 - 12/2999	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007	ZZE122..ATM..(IND,MA,PHL,TAIW,TH) OUTLET	03/2001 - 08/2005	1
90407-14003	ZZE122..ATM..(IND,MA,PHL,TAIW,TH) INLET	03/2001 - 08/2005	1
90404-14007	ZZE122..18G..(IND,MA) OUTLET	10/2003 - 12/2999	1
90407-14003	ZZE122..18G..(IND,MA) INLET	10/2003 - 12/2999	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007	ZZE122..ATM..(IND,MA,PHL,TAIW,TH) OUTLET	03/2001 - 08/2005	1
90407-14003	ZZE122..ATM..(IND,MA,PHL,TAIW,TH) INLET	03/2001 - 08/2005	1
90404-14007	ZZE122..18G..(IND,MA) OUTLET	10/2003 - 12/2999	1
90407-14003	ZZE122..18G..(IND,MA) INLET	10/2003 - 12/2999	1
32921D - HOSE(FOR OIL COOLER INLET)
32943-12010	ZZE122..18G..(IND,MA,PHL)	01/2004 - 11/2005	1
90445-15042	ZZE122..18G..IND	11/2005 - 12/2999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	ZZE122..18G..(IND,MA)	10/2003 - 12/2999	2
90301-10189	ZZE122..ATM..(IND,MA,PHL,TAIW,TH)	03/2001 - 08/2005	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	ZZE122..18G..(IND,MA)	10/2003 - 12/2999	2
90301-10189	ZZE122..ATM..(IND,MA,PHL,TAIW,TH)	03/2001 - 08/2005	2
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	ZZE122..18G..IND	10/2003 - 12/2999	8
96135-51300	ZZE122..18G..IND	04/2004 - 08/2005	8
96135-51300	ZZE122..18G..IND	03/2001 - 03/2004	8
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12350	ZZE122..18G..(IND,MA,PHL)	11/2003 - 11/2005	1
32922-13040	ZZE122..18G..IND	11/2005 - 12/2999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15020	ZZE122..18G..IND	01/2004 - 12/2999	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10127	ZZE122..18G..IND	10/2003 - 12/2999	1
90462-10127	ZZE12#..ATM	03/2001 - 08/2005	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010	ZZE121..ATM;ZZE122..ATM..(IDN,IND,TAIW,TH) L=30,ID=8	03/2001 - 08/2005	2
32926-10010	ZZE122..18G..IND L=30,ID=8	10/2003 - 12/2999	2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010	ZZE121..ATM;ZZE122..ATM..(IDN,IND,TAIW,TH) L=30,ID=8	03/2001 - 08/2005	2
32926-10010	ZZE122..18G..IND L=30,ID=8	10/2003 - 12/2999	2
32941 - HOSE, OIL COOLER INLET, NO.1
90445-15039	ZZE122..18G..IND	01/2004 - 12/2999	1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-15034	ZZE122..18G..IND	01/2004 - 12/2999	1
Common parts
90119-T0006
91611-B0614
91621-60614

ZZE122R-GEPNKX (2003)

(0103- )ATM
