ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

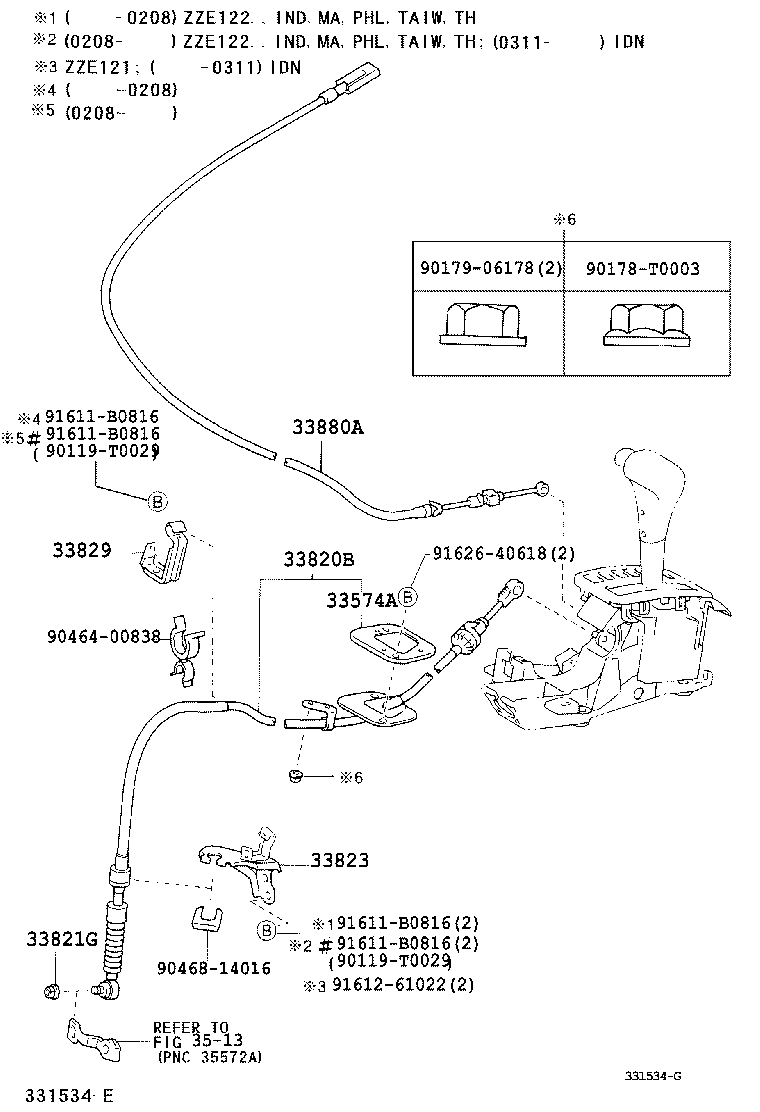

ILLUST NO. 2 OF 2(0103- )ATM

Click highlighted areas on diagram

diagram 33574A 33820B 33821G 33823 33829 33880A 3513 90119T0029 90119T0029 90178T0003 9017906178 9046400838 9046814016 91611B0816 91611B0816 91611B0816 91611B0816 9161261022 9162640618
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-02040

ZZE12#..ATM..(IND,MA)

 1
33574-02040

ZZE122..18G..IND

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02310

ZZE122..ATM..(IND,MA,PHL,TAIW,TH)

 1
33820-02290

ZZE122..18G..(IND,MA)

 1
33820-02290

ZZE122..18G..IND

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08061

ZZE122..18G..IND

 1
90179-08061

ZZE12#..ATM..(IND,MA)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-20230

ZZE122..18G..(IND,MA)

 1
33823-20230

ZZE122..18G..IND

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-02030

ZZE122..18G..IND

 1
33829-12070

ZZE122..ATM..(IND,MA,PHL,TAIW,TH)

 1
33829-02030

ZZE122..18G..(IND,MA)

 1
33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT)
33880-12030

ZZE121..ATM..MA;ZZE122..18G..IND

 1
Common parts
90119-T0029
90178-T0003
90179-06178
90464-00838
90468-14016
91611-B0816
91612-61022
91626-40618
Linked diagrams
3513
