Toyota Corolla (asia/india) ZZE122 FUEL INJECTION SYSTEM

ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

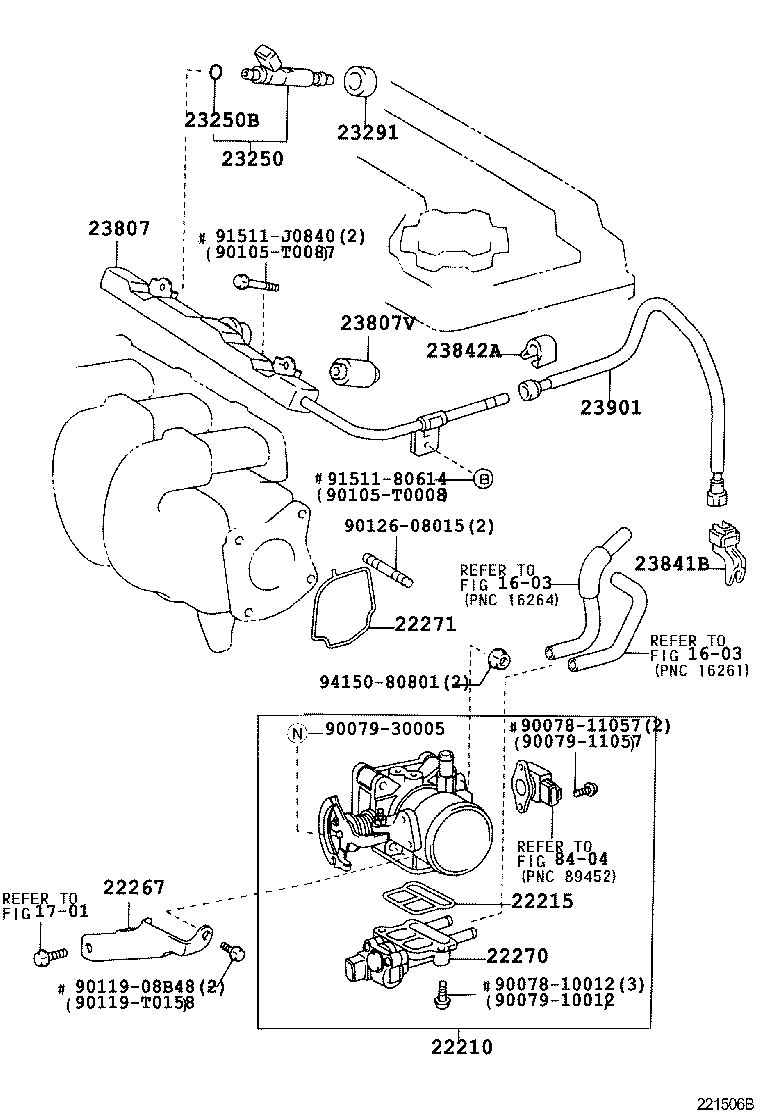

ILLUST NO. 1 OF 2(0103- )1ZZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-22080	1ZZFE..ZZE122 (J)	03/2001 - 06/2001	1
22210-22130	1ZZFE..ZZE122..IND	08/2005 - 12/2999	1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680	1ZZFE..ZZE122..IND	08/2005 - 12/2999	1
22267 - BRACKET, THROTTLE BODY
22267-22030	1ZZFE..ZZE122	03/2001 - 08/2005	1
22267-22030	1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-0D040	1ZZFE..ZZE122..IND (L)	08/2005 - 11/2005	1
22270-22061	1ZZFE..ZZE122..IND,VN (J)	03/2003 - 08/2005	1
22270-22061	1ZZFE..ZZE122..IND (J)	08/2005 - 11/2005	1
22270-22061	1ZZFE..ZZE122..IND	11/2005 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-22040	1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
22271-22040	1ZZFE..ZZE122	03/2001 - 08/2005	1
23250 - INJECTOR ASSY, FUEL
23209-22040	1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	4
23209-22040	1ZZFE..ZZE122..IND,MA,PHL,TAIW,TH	03/2001 - 08/2005	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	1ZZFE..ZZE122	03/2001 - 08/2005	4
90301-07024	1ZZFE..ZZE122	10/2003 - 07/2006	4
90301-07037	1ZZFE..ZZE122..IND,MA,VN	07/2006 - 12/2999	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-22020	1ZZFE..ZZE122	03/2001 - 08/2005	4
23291-22020	1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-22030	1ZZFE,3ZZFE..ZZE12#	03/2001 - 08/2005	1
23807-22030	1ZZFE..ZZE122..IND	10/2003 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08055	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	2
90561-08055	1ZZFE,3ZZFE..ZZE12#	03/2001 - 08/2005	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)	10/2003 - 04/2007	1
23841-28010	1ZZFE,3ZZFE..ZZE12#	03/2001 - 08/2005	1
23841-21050	1ZZFE,3ZZFE..ZZE12#..IND,MA,VN	05/2007 - 12/2999	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
23842-22020	1ZZFE,3ZZFE..ZZE12#	03/2001 - 08/2005	1
23901 - TUBE SUB-ASSY, FUEL
23901-22140	1ZZFE,3ZZFE..ZZE12#	03/2001 - 08/2005	1
23901-22140	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
Common parts
90078-10012
90078-11057
90079-10012
90079-11057
90079-30005
90105-T0008
90105-T0087
90119-08B48
90119-T0158
90126-08015
91511-80614
91511-J0840
94150-80801
Linked diagrams
1603
1701
8404

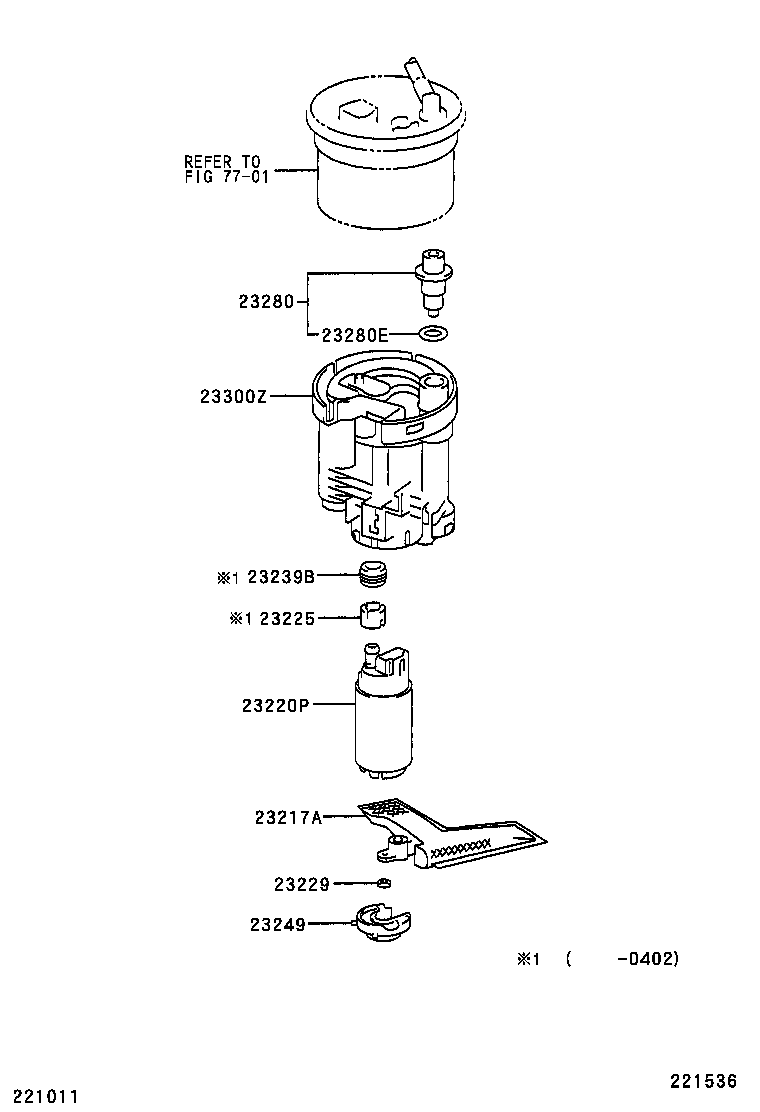

ILLUST NO. 2 OF 2(0103- )1ZZFE,3ZZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
23217A - FILTER, FUEL PUMP
23217-21030	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
23220P - PUMP ASSY, FUEL
23221-0D060	1ZZFE..ZZE122..IND	01/2003 - 08/2005	1
23221-0D060	1ZZFE..ZZE122..IND	08/2005 - 12/2999	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010	1ZZFE,3ZZFE..ZZE12#	03/2001 - 08/2005	1
23229-16010	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180	1ZZFE..ZZE122..IND,VN	03/2001 - 08/2005	1
23249-0D010	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	11/2003 - 12/2999	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-22010	1ZZFE,3ZZFE..ZZE12#..IDN,IND,MA,PHL,TH,VN	03/2001 - 08/2005	1
23280-22010	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020	1ZZFE,3ZZFE..ZZE12#..IDN,IND,MA,PHL,TH,VN	03/2001 - 08/2005	1
90301-07020	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	10/2003 - 12/2999	1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-0D030	3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN	11/2003 - 12/2999	1
Linked diagrams
7701

ZZE122R-GEPNKX (2003)

ILLUST NO. 1 OF 2(0103- )1ZZFE

ILLUST NO. 2 OF 2(0103- )1ZZFE,3ZZFE

Part Price Details
