ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )1ZZFE,3ZZFE

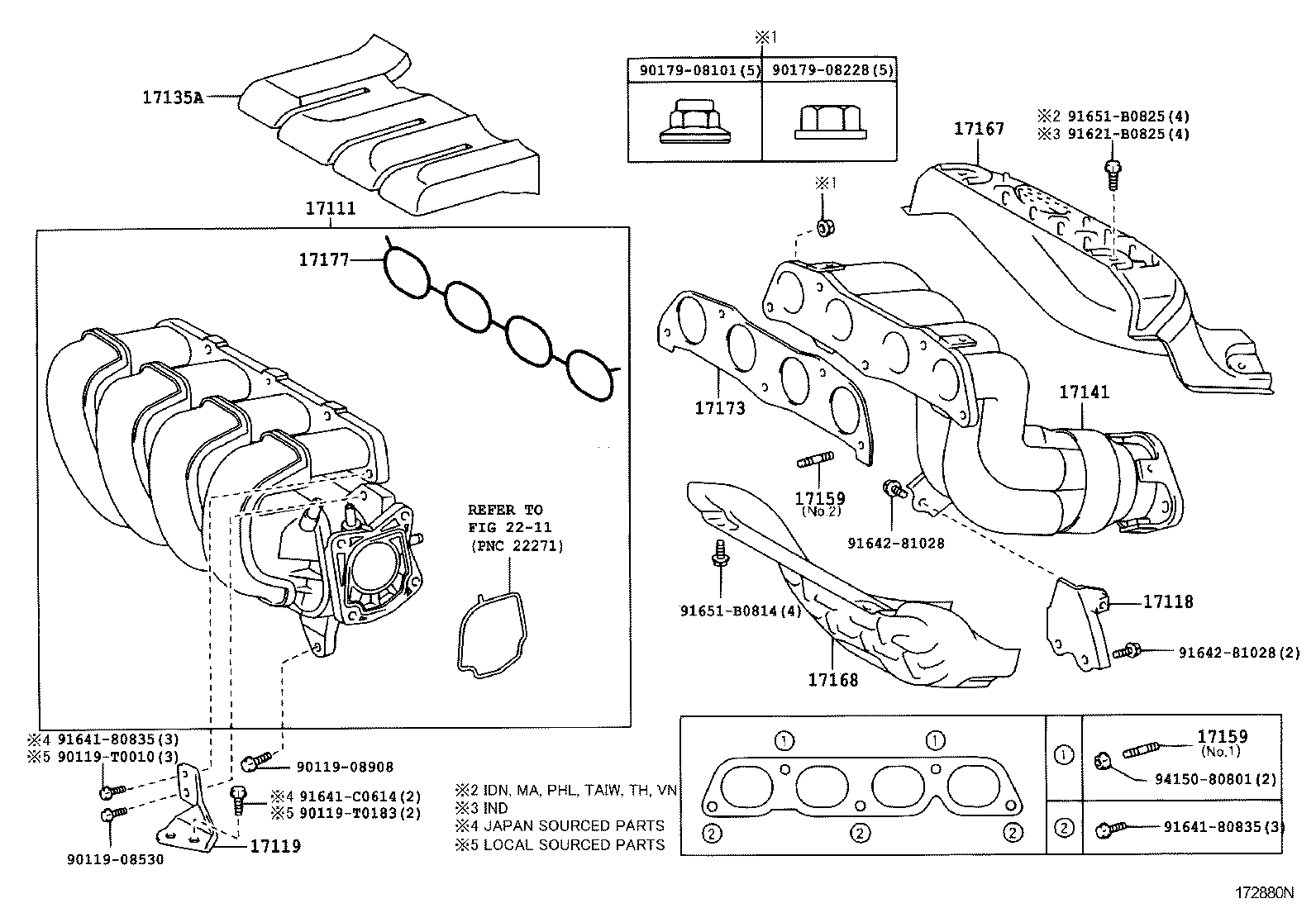

Click highlighted areas on diagram

diagram 17111 17118 17119 17135A 17141 17159 17159 17167 17168 17173 17177 2211 9011908530 9011908908 90119T0010 90119T0183 9017908101 9017908228 91621B0825 9164180835 9164180835 91641C0614 9164281028 9164281028 91651B0814 91651B0825 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-22030

1ZZFE..ZZE122..IND,MA,VN

 1
17120-22030

1ZZFE..ZZE122

 1
17119 - STAY, MANIFOLD, NO.2
17139-22030

1ZZFE..ZZE122..ATM

 1
17139-22030

1ZZFE..ZZE122..18G..(IND,MA)

 1
17141 - MANIFOLD, EXHAUST
17104-22050

1ZZFE..ZZE122..IND

 1
17104-22050

1ZZFE,3ZZFE..ZZE12#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1ZZFE,3ZZFE..ZZE12#

NO.2

 5
90126-08043

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

NO.2

 5
90126-08026

1ZZFE..ZZE122..IND

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1ZZFE,3ZZFE..ZZE12#

NO.2

 5
90126-08043

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

NO.2

 5
90126-08026

1ZZFE..ZZE122..IND

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-22040

1ZZFE,3ZZFE..ZZE12#

 1
17167-22041

1ZZFE,3ZZFE..ZZE12#

 1
17167-22041

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22040

1ZZFE..ZZE122..IND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-22010

1ZZFE,3ZZFE..ZZE12#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-22030

1ZZFE,3ZZFE..ZZE12#

 1
17171-22030

1ZZFE..ZZE122..IND,MA,VN

 1
Common parts
90119-08530
90119-08908
90119-T0010
90119-T0183
90179-08101
90179-08228
91621-B0825
91641-80835
91641-C0614
91642-81028
91651-B0814
91651-B0825
94150-80801
Linked diagrams
2211
