ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

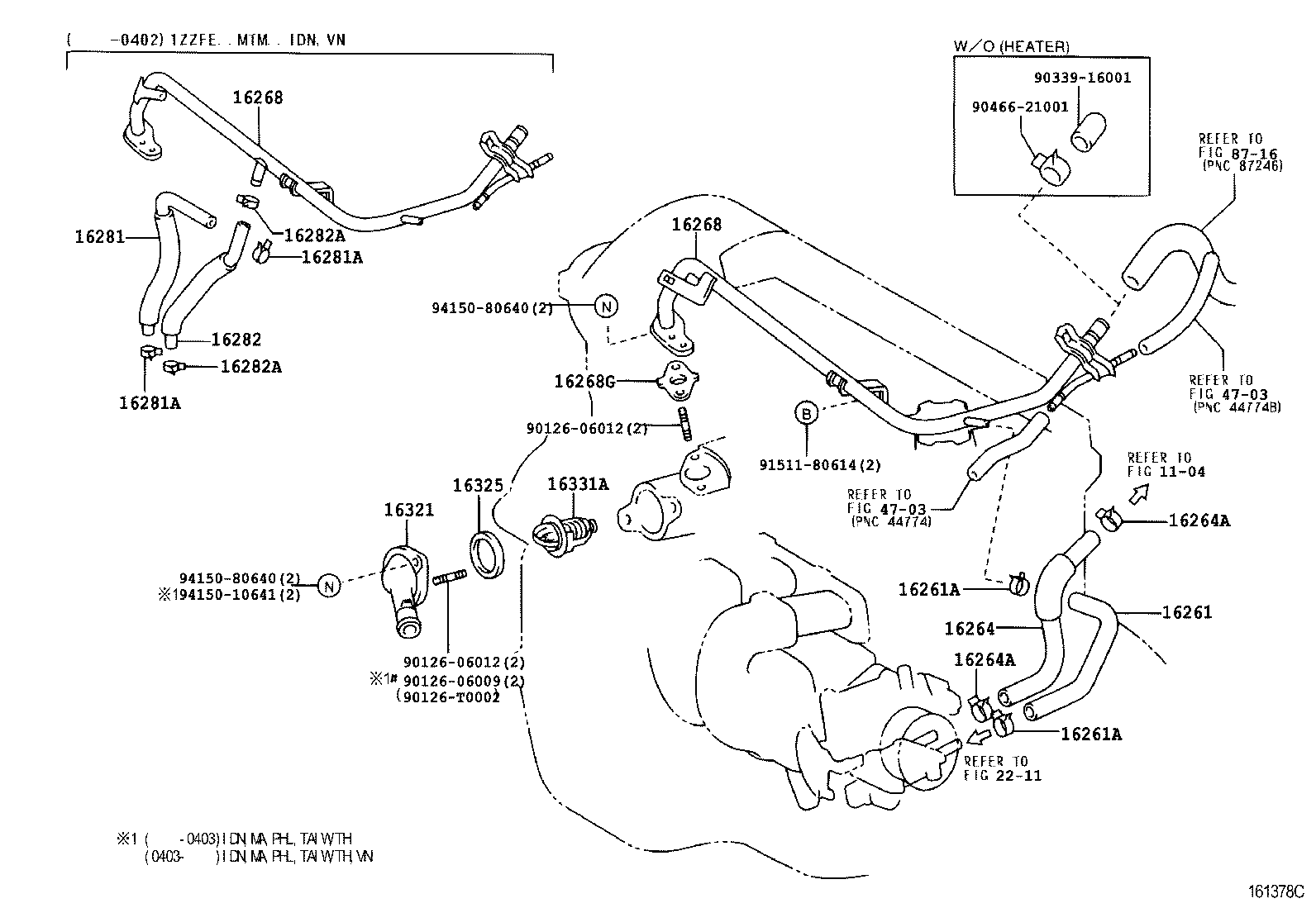

ILLUST NO. 2 OF 2(0103- )1ZZFE,3ZZFE

Click highlighted areas on diagram

diagram 1104 16261 16261A 16261A 16264 16264A 16264A 16268 16268 16268G 16281 16281A 16281A 16282 16282A 16282A 16321 16325 16331A 2211 4703 4703 8716 9012606009 9012606012 9012606012 90126T0002 9033916001 9046621001 9151180614 9415010641 9415080640 9415080640
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-0D030

1ZZFE..ZZE122..IND

(L)

 1
16261-22080

1ZZFE..ZZE122..IDN,IND,MA,PHL,TAIW,TH

(J)

 1
16261-0D030

1ZZFE..ZZE122..IND,MA,VN

(L)

 1
16261-22080

1ZZFE..ZZE122..IND

(J)

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

1ZZFE..ZZE122..IND,VN

 2
96137-41501

1ZZFE..ZZE122..IND

 2
96137-41501

1ZZFE..ZZE122..IND,VN

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

1ZZFE..ZZE122..IND,VN

 2
96137-41501

1ZZFE..ZZE122..IND

 2
96137-41501

1ZZFE..ZZE122..IND,VN

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0D020

1ZZFE..ZZE122..IND

(L)

 1
16264-22090

1ZZFE..ZZE122..IDN,IND,MA,PHL,TAIW,TH

(J)

 1
16264-0D020

1ZZFE..ZZE122..IND,MA,VN

(L)

 1
16264-22090

1ZZFE..ZZE122..IND

(J)

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

1ZZFE..ZZE122..IND,VN

 2
96137-41501

1ZZFE..ZZE122..IND

 2
96137-41501

1ZZFE..ZZE122..IND,VN

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

1ZZFE..ZZE122..IND,VN

 2
96137-41501

1ZZFE..ZZE122..IND

 2
96137-41501

1ZZFE..ZZE122..IND,VN

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-22100

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 1
16268-22100

3ZZFE..ZZE121;1ZZFE..ZZE122..ATM;1ZZFE..ZZE122..MTM..IND

 1
16268-22101

1ZZFE..ZZE122..IND,VN

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-22100

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 1
16268-22100

3ZZFE..ZZE121;1ZZFE..ZZE122..ATM;1ZZFE..ZZE122..MTM..IND

 1
16268-22101

1ZZFE..ZZE122..IND,VN

 1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-22010

1ZZFE,3ZZFE..ZZE12#

 1
16258-22010

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 1
16258-28030

1ZZFE..ZZE122..IND,VN

 1
16321 - INLET, WATER
16321-22070

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

 1
16321-22070

1ZZFE,3ZZFE..ZZE12#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

(J)

 1
16325-0H020

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

(L)

 1
16325-0H020

1ZZFE..ZZE122..IND

(L)

 1
16331A - THERMOSTAT
90916-03129

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

*WAX 82-95

 1
90916-03129

1ZZFE,3ZZFE..ZZE12#

*WAX 82-95,(J)

 1
Common parts
90126-06009
90126-06012
90126-T0002
90339-16001
90466-21001
91511-80614
94150-10641
94150-80640
Linked diagrams
1104
2211
4703
8716
