ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )1ZZFE,3ZZFE

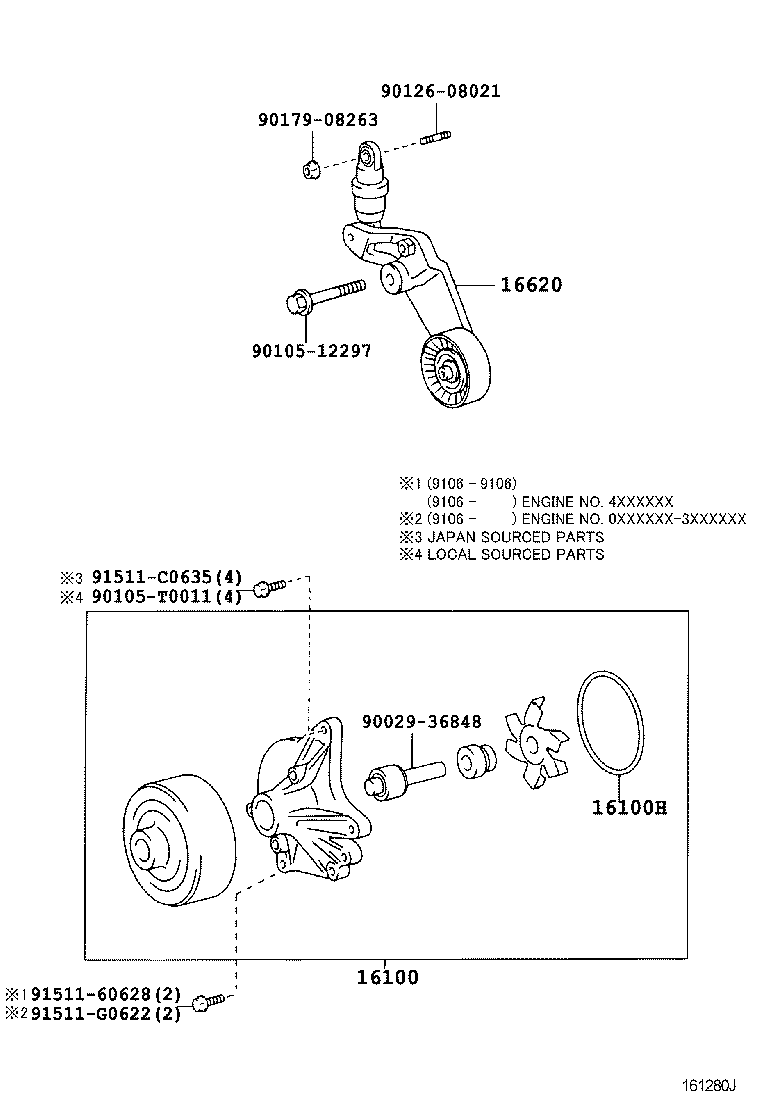

Click highlighted areas on diagram

diagram 16100 16100H 16620 9002936848 9010512297 90105T0011 9012608021 9017908263 9151160628 91511C0635 91511G0622
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29415

1ZZFE..ZZE122..IND

 1
16100H - RING, O(FOR WATER PUMP)
90301-69006

1ZZFE,3ZZFE..ZZE12#

 1
90301-69006

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-22012

1ZZFE..ZZE122..IND

OTICS

 1
16620-22012

1ZZFE..ZZE122..IND

OTICS

 1
16620-22010

1ZZFE,3ZZFE..ZZE12#

OTICS

 1
Common parts
90029-36848
90105-12297
90105-T0011
90126-08021
90179-08263
91511-60628
91511-C0635
91511-G0622
