ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )1ZZFE,3ZZFE

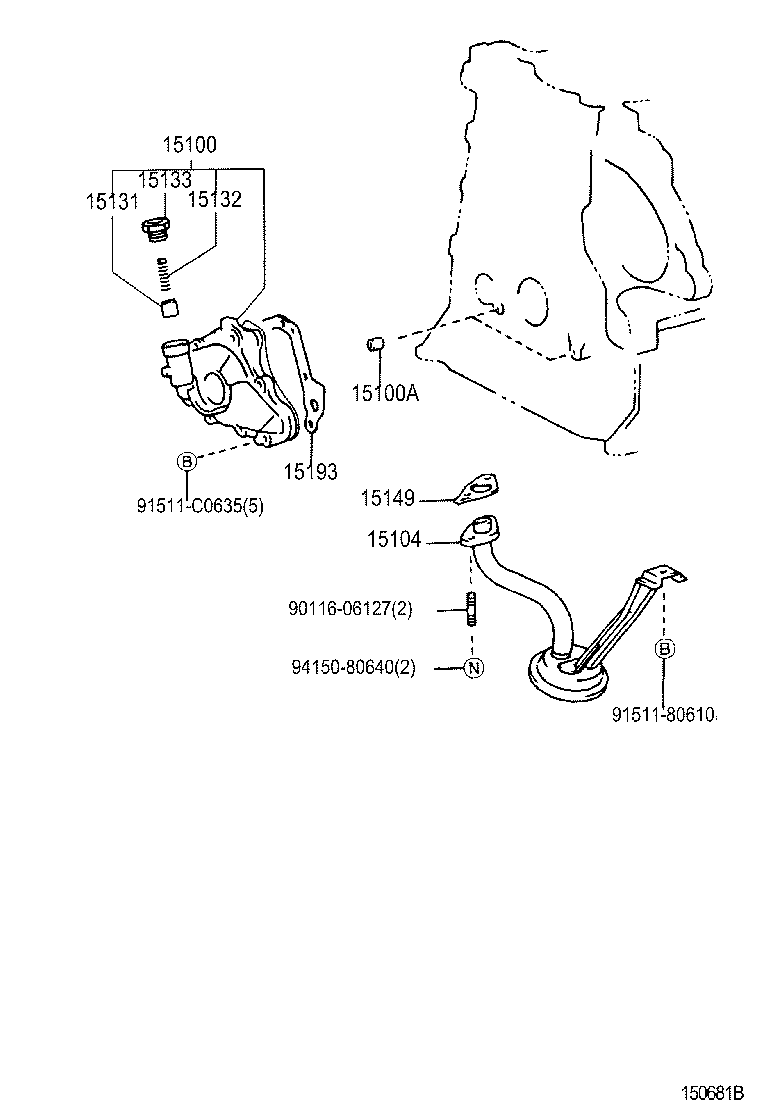

Click highlighted areas on diagram

diagram 15100 15100A 15104 15131 15132 15133 15149 15193 9011606127 9151180610 91511C0635 9415080640
Part # Description Qty Price
15100A - PIN, RING(FOR OIL PUMP SET)
90253-09003

1ZZFE,3ZZFE..ZZE12#

 2
90253-09003

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 2
15104 - STRAINER SUB-ASSY, OIL
15104-22022

1ZZFE,3ZZFE..ZZE12#

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-22010

1ZZFE,3ZZFE..ZZE12#

 1
15193 - GASKET, OIL PUMP
15197-22010

1ZZFE,3ZZFE..ZZE12#

 1
Common parts
90116-06127
91511-80610
91511-C0635
94150-80640
