ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )1ZZFE,3ZZFE

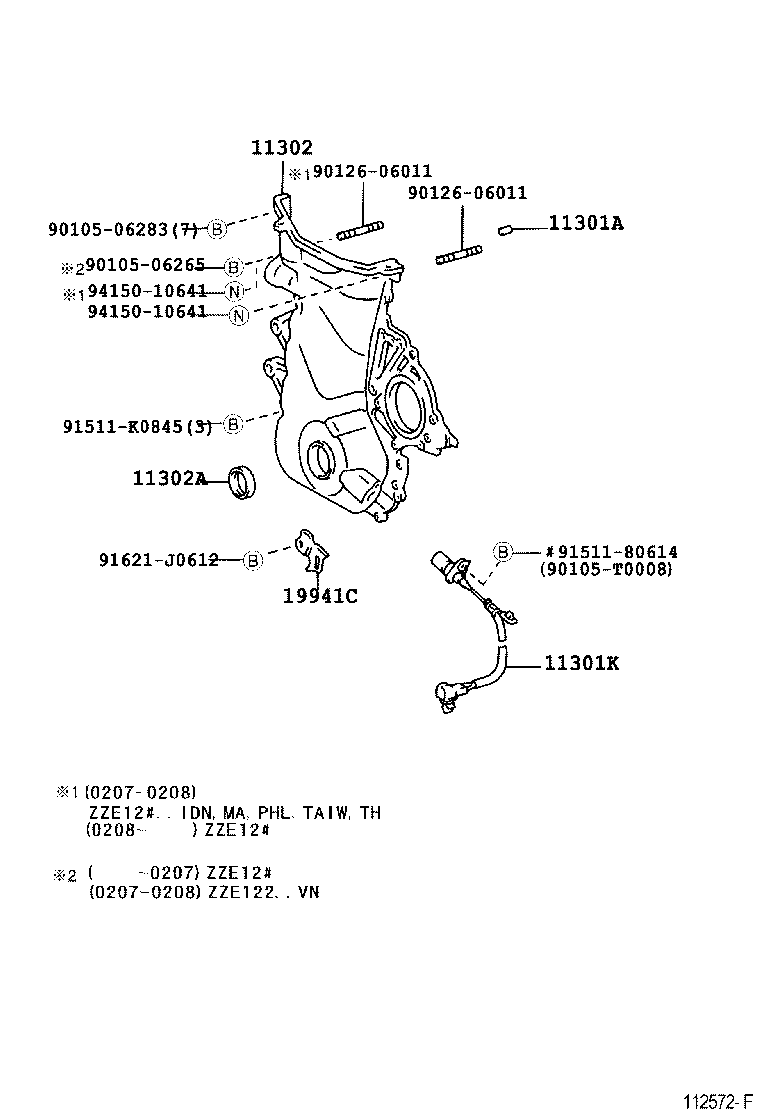

Click highlighted areas on diagram

diagram 11301A 11301K 11302 11302A 19941C 9010506265 9010506283 90105T0008 9012606011 9012606011 9151180614 91511K0845 91621J0612 9415010641 9415010641
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08074

1ZZFE,3ZZFE..ZZE12#

L=15,OD=8

 1
90250-08074

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

L=15,OD=8

 1
11301K - SENSOR, CRANK POSITION
90919-05030

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

 1
90919-05030

1ZZFE,3ZZFE..ZZE12#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-22021

1ZZFE,3ZZFE..ZZE12#..IDN,IND,MA,PHL,TAIW,TH

(J)

 1
11321-0D030

1ZZFE,3ZZFE..ZZE12#..IDN,IND,MA,PHL,TAIW,TH

(L)

 1
11321-0D030

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

(L)

 1
11321-22021

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

(J)

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38089

1ZZFE..ZZE122..IND

 1
90311-38059

1ZZFE,3ZZFE..ZZE12#

 1
19941C - CLAMP, CORD(FOR CRANK POSITION SENSOR)
19941-22010

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 1
19941-22010

1ZZFE,3ZZFE..ZZE12#

 1
Common parts
90105-06265
90105-06283
90105-T0008
90126-06011
91511-80614
91511-K0845
91621-J0612
94150-10641
