ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )1ZZFE,3ZZFE

Click highlighted areas on diagram

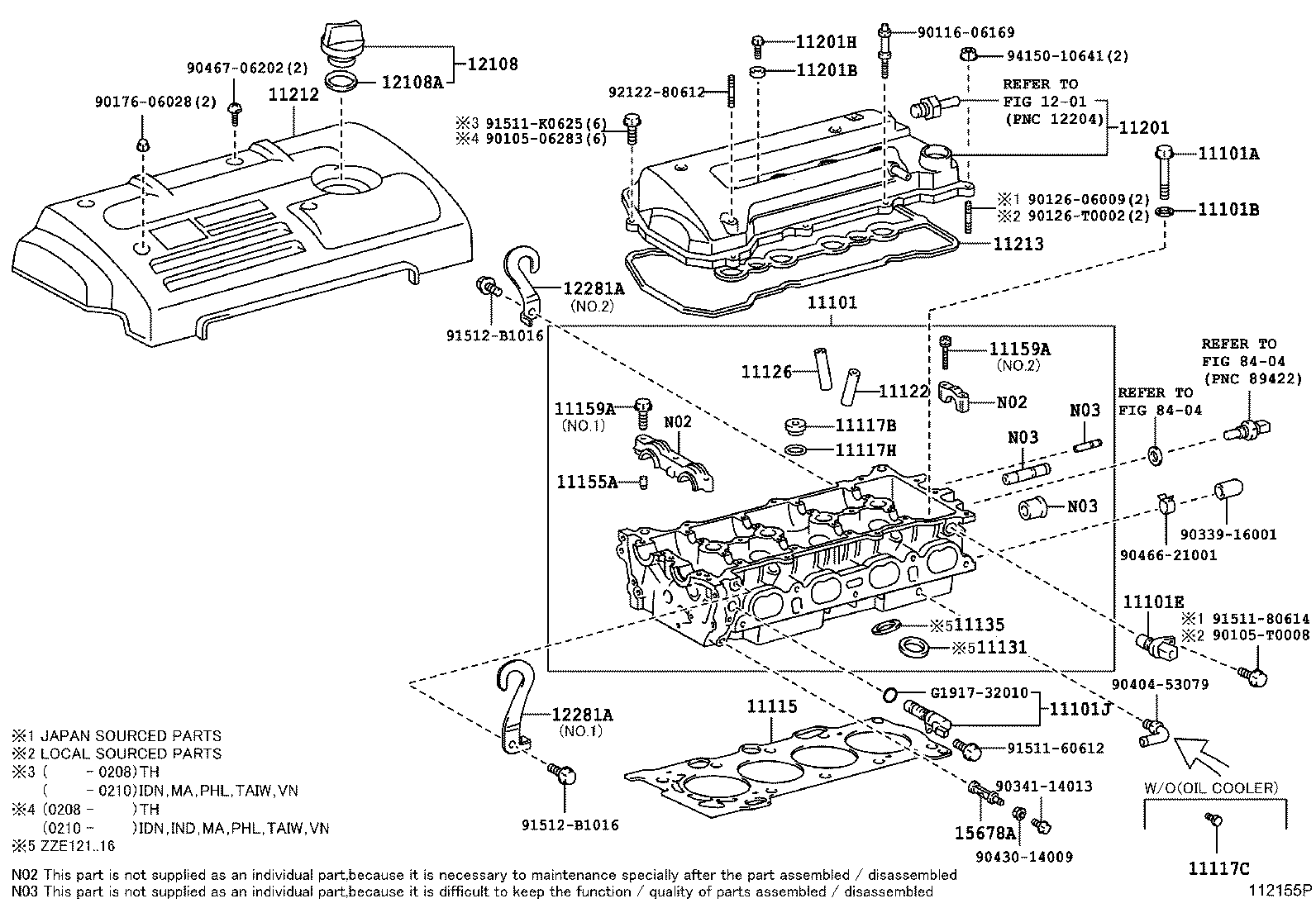

diagram 11101 11101A 11101B 11101E 11101J 11115 11117B 11117C 11117H 11122 11126 11131 11135 11155A 11159A 11159A 11201 11201B 11201H 11212 11213 1201 12108 12108A 12281A 12281A 15678A 8404 8404 9010506283 90105T0008 9011606169 9012606009 90126T0002 9017606028 9033916001 9034114013 9040453079 9043014009 9046621001 9046706202 9151160612 9151180614 91511K0625 91512B1016 91512B1016 9212280612 9415010641 G191732010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-22052

1ZZFE..ZZE122..IND,MA,VN

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02152

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

 10
90910-02152

1ZZFE..ZZE122..IND,VN;3ZZFE..ZZE121..16E..TAIW

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

 10
90201-10344

1ZZFE,3ZZFE..ZZE12#

 10
11101E - SENSOR, CAM POSITION
90919-05026

1ZZFE,3ZZFE..ZZE12#

 1
90919-05026

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-22030

1ZZFE,3ZZFE..ZZE12#..IND,MA,PHL,TAIW,TH

 1
15330-22030

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

 1
11115 - GASKET, CYLINDER HEAD
11115-22050

1ZZFE..ZZE122;3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)

 1
11115-22040

1ZZFE,3ZZFE..ZZE12#

 1
11115-22050

1ZZFE,3ZZFE..ZZE12#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002

1ZZFE..ZZE122..IND,MA;3ZZFE..ZZE121..ATM..MA

 1
11117H - GASKET(FOR WATER HOLE)
90430-20004

1ZZFE..ZZE122..IND,MA;3ZZFE..ZZE121..ATM..MA

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-22030

1ZZFE,3ZZFE..ZZE12#

O/S 0.05

 8
11122-20020

1ZZFE,3ZZFE..ZZE12#..IND,MA,VN

STD

 8
11123-20020

1ZZFE,3ZZFE..ZZE12#..IND,MA,VN

O/S 0.05

 8
11122-22030

1ZZFE,3ZZFE..ZZE12#

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-22030

1ZZFE,3ZZFE..ZZE12#

STD

 8
11123-22030

1ZZFE,3ZZFE..ZZE12#

O/S 0.05

 8
11123-20020

1ZZFE,3ZZFE..ZZE12#..IND,MA,VN

O/S 0.05

 8
11122-20020

1ZZFE,3ZZFE..ZZE12#..IND,MA,VN

STD

 8
11155A - PIN, RING W/HEAD
90250-06001

1ZZFE..ZZE122..IND,MA;3ZZFE..ZZE121..ATM..MA

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

1ZZFE..ZZE122..IND,MA;3ZZFE..ZZE121..ATM..MA

NO.2

 16
90119-08A29

1ZZFE..ZZE122..IND,MA;3ZZFE..ZZE121..ATM..MA

NO.1

 3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

1ZZFE..ZZE122..IND,MA;3ZZFE..ZZE121..ATM..MA

NO.2

 16
90119-08A29

1ZZFE..ZZE122..IND,MA;3ZZFE..ZZE121..ATM..MA

NO.1

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-22060

1ZZFE..ZZE122..IND

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

1ZZFE,3ZZFE..ZZE12#

 2
90210-06013

3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;1ZZFE..ZZE122..IDN,IND,PHL,TAIW,TH,VN

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
90105-06202

1ZZFE,3ZZFE..ZZE12#

 2
90105-06202

3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;1ZZFE..ZZE122..IDN,IND,PHL,TAIW,TH,VN

 2
11212 - COVER, CYLINDER HEAD, NO.2
11212-22130

1ZZFE..ZZE122..IND

 1
11212-22130

1ZZFE..ZZE122..IND

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-22050

1ZZFE,3ZZFE..ZZE12#..IDN,IND,MA,PHL,TAIW,TH

(J)

 1
11213-22050

1ZZFE..ZZE122..IND

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

1ZZFE..ZZE122..IND

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1ZZFE,3ZZFE..ZZE12#

 1
90430-37140

1ZZFE,3ZZFE..ZZE12#..IND,TAIW

 1
12281A - HANGER, ENGINE, NO.1
12281-15050

1ZZFE..ZZE122..IND

NO.1

 1
12281-22021

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

NO.2

 1
12281A - HANGER, ENGINE, NO.1
12281-15050

1ZZFE..ZZE122..IND

NO.1

 1
12281-22021

3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN

NO.2

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

1ZZFE,3ZZFE..ZZE12#..IND,MA,PHL,TAIW,TH

 1
15678-21010

1ZZFE..ZZE122..IND

 1
Common parts
90105-06283
90105-T0008
90116-06169
90126-06009
90126-T0002
90176-06028
90339-16001
90341-14013
90404-53079
90430-14009
90466-21001
90467-06202
91511-60612
91511-80614
91511-K0625
91512-B1016
92122-80612
94150-10641
G1917-32010
