ZZE122R-GEPGKT (2001)

Toyota Corolla (Asia/India)

Production May 2001 - Jan 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )16E,16J,18E,18G..IDN,MA,TH ; (0411-)IND

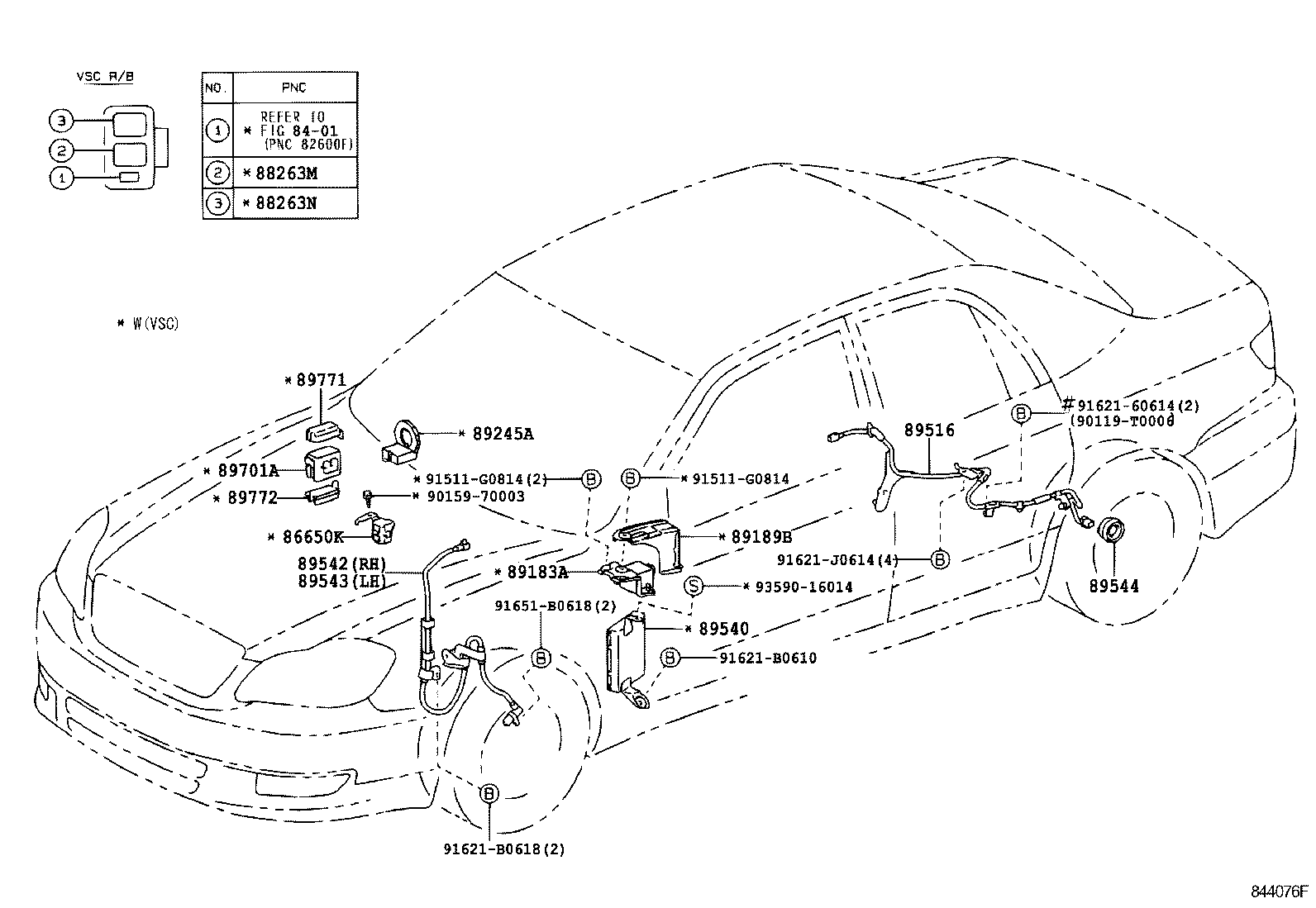

Click highlighted areas on diagram

diagram 8401 86650K 88263M 88263N 89183A 89189B 89245A 89516 89540 89542 89543 89544 89701A 89771 89772 90119T0006 9015970003 91511G0814 91511G0814 9162160614 91621B0610 91621B0618 91621J0614 91651B0618 9359016014
Part # Description Qty Price
86650K - BUZZER ASSY, SKID CONTROL
86650-12070

ZZE122..18G..TH

 1
86650-12070

ZZE122..18G..TH

 1
86650-13010

ZZE122..18G..TH

 1
88263M - RELAY, ABS SOLENOID
88263-32070

ZZE122..18G..TH

 1
88263-32070

ZZE122..18G..(MA,TH)

 1
88263N - RELAY, ABS MOTOR
88263-32070

ZZE122..18G..TH

 1
88263-32070

ZZE122..18G..(MA,TH)

 1
89183A - SENSOR, YAWRATE
89180-12010

ZZE122..18G..TH

 1
89180-12010

ZZE122..18G..(MA,TH)

 1
89189B - BRACKET, YAWRATE SENSOR
89189-12020

ZZE122..18G..TH

 1
89189-12020

ZZE122..18G..(MA,TH)

 1
89245A - SENSOR, STEERING
89245-12010

ZZE122..18G..(MA,TH)

 1
89245-12010

ZZE122..18G..TH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-02050

ZZE12#..ATM..(16E,18E,18G)..TH

RH

 1
89516-02060

ZZE12#..ATM..(16E,18E,18G)..TH

LH

 1
89516-02050

ZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)

RH

 1
89516-02060

ZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)

LH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12552

ZZE122..18G..(MA,TH)

 1
89540-12570

ZZE122..18G..(MA,TH)

 1
89540-12571

ZZE122..18G..TH

 1
89540-12571

ZZE122..18G..(MA,TH)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12070

ZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)

 1
89542-12070

ZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12070

ZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)

 1
89543-12070

ZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)

 1
89544 - SENSOR, SKID CONTROL
89544-12010

ZZE12#..ATM..(16E,18E,18G)..TH

KOYO

 2
89544-12010

ZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)

 2
89701A - BLOCK SUB-ASSY, ABS RELAY
89701-12020

ZZE122..18G..TH

 1
89701-12020

ZZE122..18G..(MA,TH)

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-12020

ZZE122..18G..TH

 1
89771-12020

ZZE122..18G..(MA,TH)

 1
89772 - COVER, ABS RELAY BLOCK, LOWER
89772-12020

ZZE122..18G..TH

 1
89772-12020

ZZE122..18G..(MA,TH)

 1
Common parts
90119-T0006
90159-70003
91511-G0814
91621-60614
91621-B0610
91621-B0618
91621-J0614
91651-B0618
93590-16014
Linked diagrams
8401
