ZZE122R-GEPGKT (2001)

Toyota Corolla (Asia/India)

Production May 2001 - Jan 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )RHD

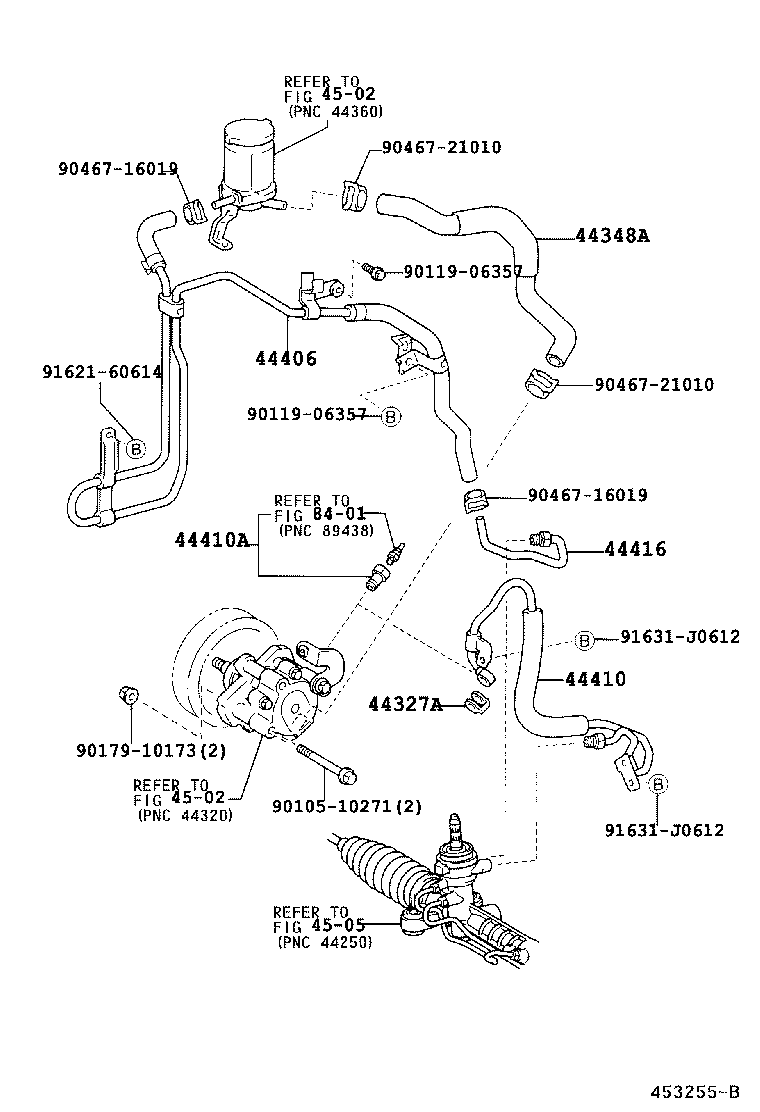

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44410A 44416 4502 4502 4505 8401 9010510271 9011906357 9011906357 9017910173 9046716019 9046716019 9046721010 9046721010 9162160614 91631J0612 91631J0612
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

ZZE12#..IDN,TH

 1
44327-30030

ZZE12#..IDN,TH

 1
44327-12010

ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-02041

ZZE12#..IDN,TH

 1
44348-02040

ZZE12#..TH

 1
44348-02041

ZZE12#..IDN,TH

 1
44406 - TUBE SUB-ASSY, RETURN
44406-02071

ZZE12#..IDN,TH

 1
44406-02070

ZZE12#..TH

 1
44406-02071

ZZE12#..IDN,TH

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-02090

ZZE12#..IDN,TH

 1
44410-02090

ZZE12#..IDN,TH

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
44338-33090

ZZE12#..IDN,TH

 1
44338-33090

ZZE12#..IDN,TH

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-02040

ZZE12#..IDN,TH

 1
44416-02040

ZZE12#..IDN,TH

 1
Common parts
90105-10271
90119-06357
90179-10173
90467-16019
90467-21010
91621-60614
91631-J0612
Linked diagrams
4502
4505
8401
