ZZE122R-GEPEKT (2001)
Toyota Corolla (Asia/India)
(0103-0311)1ZZFE,3ZZFE..ATM..TH ; (0103- )1ZZFE,3ZZFE..TAIW
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

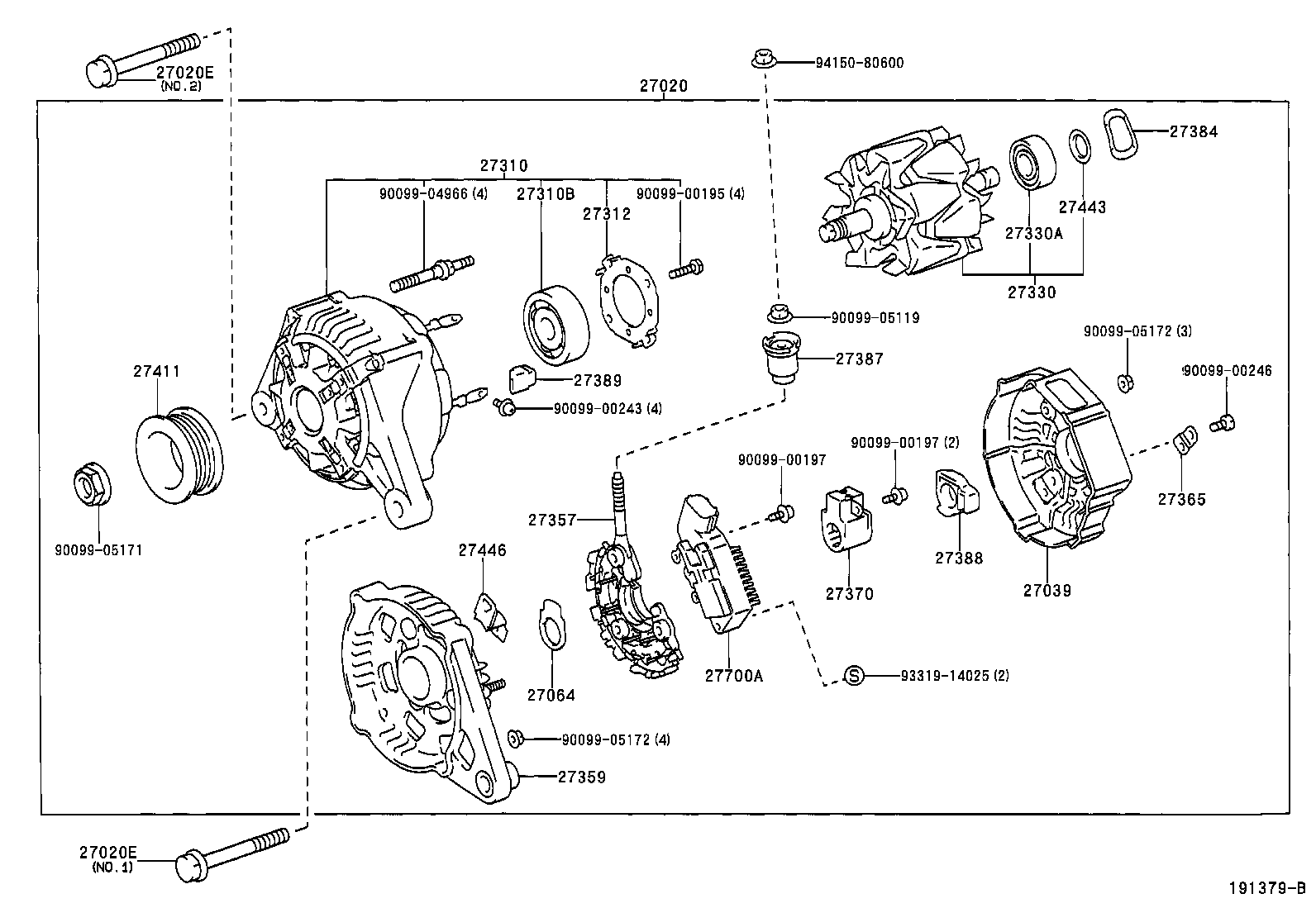

| 27020 - ALTERNATOR ASSY | ||||
| 27060-0D050 |
1ZZFE,3ZZFE..ZZE12#..ATM..TH 12V 80A |
1 | ||
| 27060-0D050 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) 12V 80A |
1 | ||
| 27060-0D051 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10015 |
1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH) (L) |
1 | ||
| 90099-10219 |
1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH) (J) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0D010 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,MA,TH) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90068-10013 |
1ZZFE,3ZZFE..ZZE12#..ATM..TH NO.1 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22050 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1ZZFE..ZZE122..(18E,18J)..(IND,TAIW,TH);1ZZFE,3ZZFE..ZZE12#..ATM..(16E,16J,18G)..(TAIW,TH) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-20050 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 27700-20050 |
1ZZFE,3ZZFE..ZZE12#..IDN,TAIW,TH |
1 | ||
| 27700-20050 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
(0107- )1ZZFE,3ZZFE..ATM..IDN,MA,PHL ; (0301-)1ZZFE..MTM..IND ; (0311- )1
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0D050 |
1ZZFE,3ZZFE..ZZE12#..ATM..TH 12V 80A |
1 | ||
| 27060-0D050 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) 12V 80A |
1 | ||
| 27060-0D051 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) 12V 80A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0D050 |
1ZZFE,3ZZFE..ZZE12#..ATM..TH 12V 80A |
1 | ||
| 27060-0D050 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) 12V 80A |
1 | ||
| 27060-0D051 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 91511-80830 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.2 |
1 | ||
| 90105-10075 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH NO.1 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0D010 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,MA,TH) |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22050 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-20050 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 27700-20050 |
1ZZFE,3ZZFE..ZZE12#..IDN,TAIW,TH |
1 | ||
| 27700-20050 |
1ZZFE,3ZZFE..ZZE12#..IDN,TH |
1 | ||
| Common parts | ||||
| 90182-T0005 | ||||
| 94150-80600 | ||||
