ZZE122R-GEPEKT (2001)

Toyota Corolla (Asia/India)

Production May 2001 - Jan 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

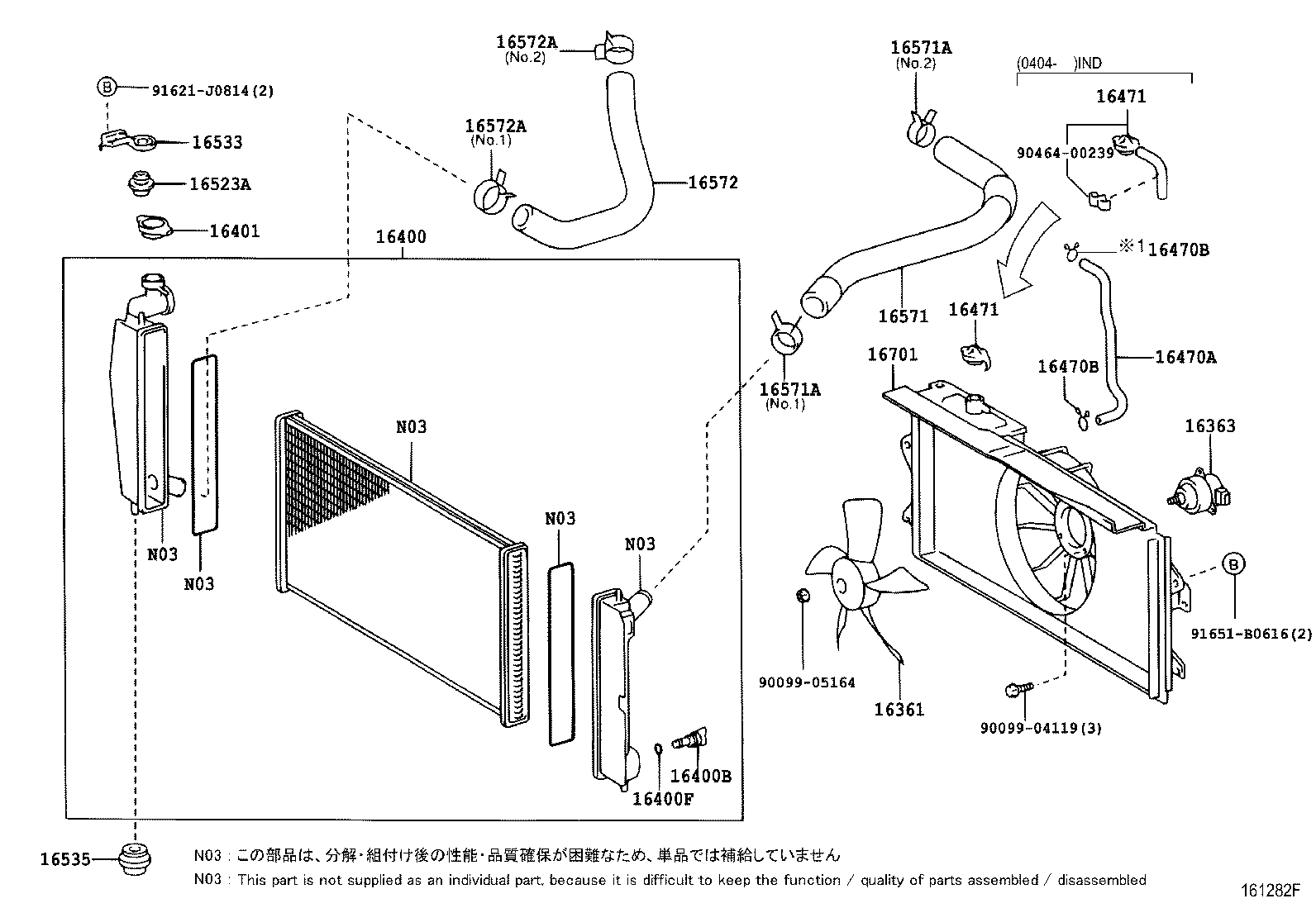

ILLUST NO. 1 OF 2(0105- )1ZZFE..IND,MA,PHL,TH ; (0105- )3ZZFE..ATM..MA,PHL,TH

Click highlighted areas on diagram

diagram 16361 16363 16400 16400B 16400F 16401 16470A 16470B 16470B 16471 16471 16523A 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16701 9009904119 9009905164 9046400239 91621J0814 91651B0616
Part # Description Qty Price
16361 - FAN
16361-0D060

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16361-0D060

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH

 1
16363 - MOTOR, COOLING FAN
16363-23020

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH,VN

 1
16363-0M010

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH

 1
16363-0M010

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16400 - RADIATOR ASSY
16410-0D120

1ZZFE,3ZZFE..ZZE12#..ATM..TH

 1
16410-0D120

1ZZFE,3ZZFE..ZZE12#..ATM..TH

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
23322-54010

1ZZFE,3ZZFE..ZZE12#..PHL,TH

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16492-21050

1ZZFE,3ZZFE..ZZE12#..MA,PHL,TH

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-05040

1ZZFE,3ZZFE..ZZE12#..TH

 1
16401-05040

1ZZFE,3ZZFE..ZZE12#..TH

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-21040

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH

 1
16377-0D060

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH

 1
16377-0D060

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
90467-11085

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
90467-11085

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-21030

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16471-23010

1ZZFE,3ZZFE..ZZE12#..IDN,IND,MA,PHL,TH

 1
16405-21030

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-21030

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16471-23010

1ZZFE,3ZZFE..ZZE12#..IDN,IND,MA,PHL,TH

 1
16405-21030

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0D010

1ZZFE,3ZZFE..ZZE12#

 2
16523-0D010

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-0D020

1ZZFE,3ZZFE..ZZE12#

 2
16533-0D020

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 2
16535 - SUPPORT, RADIATOR, LOWER
16504-0D010

1ZZFE,3ZZFE..ZZE12#..ATM

 2
16535-0D050

1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH)

 2
16535-0D050

1ZZFE,3ZZFE..ZZE12#..ATM

 2
16571 - HOSE, RADIATOR, INLET
16571-0D090

1ZZFE,3ZZFE..ZZE12#..IDN,IND,PHL,TH,VN

 1
16571-0D090

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-37002

1ZZFE,3ZZFE..ZZE12#..IDN,IND,PHL,TH,VN

NO.2

 1
90466-37002

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.2

 1
90467-37005

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.1

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-37002

1ZZFE,3ZZFE..ZZE12#..IDN,IND,PHL,TH,VN

NO.2

 1
90466-37002

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.2

 1
90467-37005

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.1

 1
16572 - HOSE, RADIATOR, OUTLET
16572-0D080

1ZZFE,3ZZFE..ZZE12#..IDN,IND,PHL,TH,VN

 1
16572-0D080

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34004

1ZZFE,3ZZFE..ZZE12#..IDN,IND,PHL,TH,VN

NO.1

 1
90466-35001

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.2

 1
90467-34004

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.1

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34004

1ZZFE,3ZZFE..ZZE12#..IDN,IND,PHL,TH,VN

NO.1

 1
90466-35001

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.2

 1
90467-34004

1ZZFE,3ZZFE..ZZE12#..IDN,TH

NO.1

 1
16701 - SHROUD SUB-ASSY, FAN
16711-0D041

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH

 1
16711-0D041

1ZZFE,3ZZFE..ZZE12#..IDN,TH

 1
16711-0D040

1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH

 1
Common parts
90099-04119
90099-05164
90464-00239
91621-J0814
91651-B0616
