ZZE122R-GEPEKE (2001)
Toyota Corolla (Asia/India)
Production
Jul 2001
-
Jan 2008
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

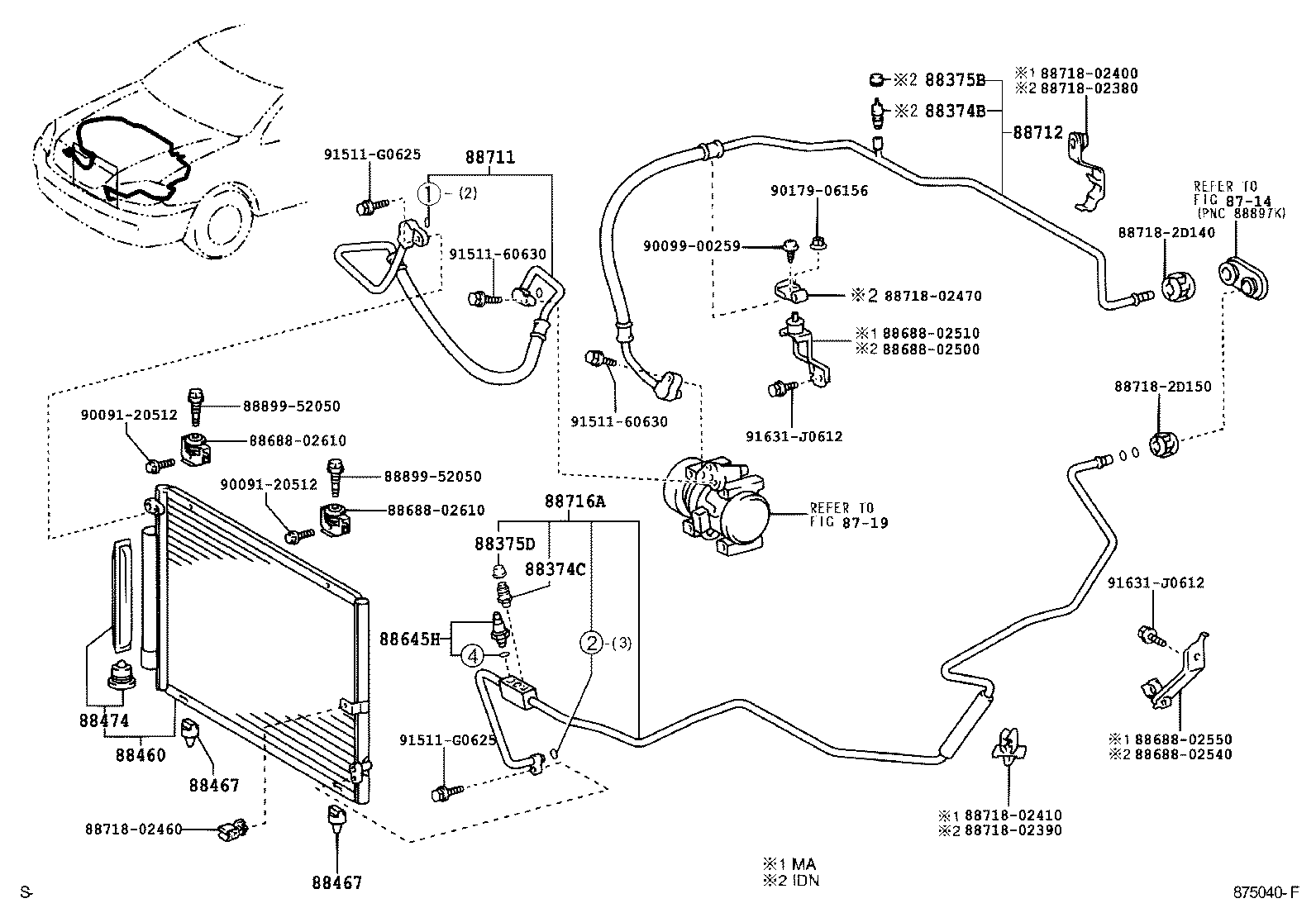

ILLUST NO. 1 OF 2(0107-0311)IDN,MA ; (0311-0401)MA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-02010 |
ZZE12#..MA |
1 | ||
| 88461-02010 |
ZZE12#..IDN,MA |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-02010 |
ZZE12#..IDN,MA |
2 | ||
| 88467-02010 |
ZZE12#..MA |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-02010 |
ZZE12#..IDN,MA |
2 | ||
| 88467-02010 |
ZZE12#..MA |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ZZE12#..IND,MA |
1 | ||
| 88474-47010 |
ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IND,MA,PHL,TAIW) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02070 |
ZZE12#..MA |
1 | ||
| 88703-02210 |
ZZE12#..MA |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88704-02210 |
ZZE12#..MA |
1 | ||
| 88704-02440 |
ZZE12#..MA |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-02230 |
ZZE12#..MA |
1 | ||
| Common parts | ||||
| 88688-02500 | ||||
| 88688-02510 | ||||
| 88688-02540 | ||||
| 88688-02550 | ||||
| 88688-02610 | ||||
| 88718-02380 | ||||
| 88718-02390 | ||||
| 88718-02400 | ||||
| 88718-02410 | ||||
| 88718-02460 | ||||
| 88718-02470 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 90091-20512 | ||||
| 90099-00259 | ||||
| 90179-06156 | ||||
| 91511-60630 | ||||
| 91511-G0625 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

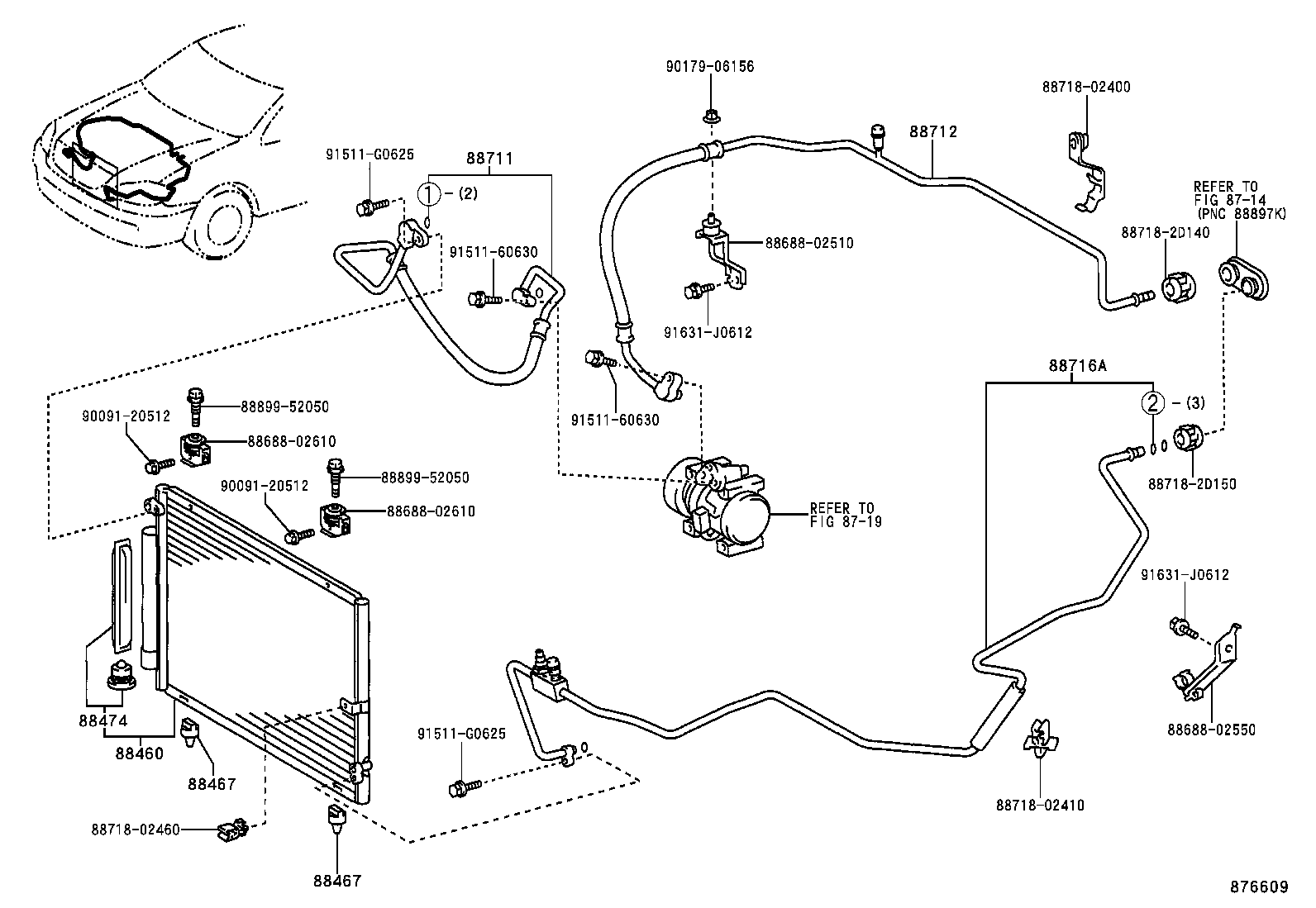

ILLUST NO. 1 OF 2(0401- )MA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-02010 |
ZZE12#..MA |
1 | ||
| 88461-02010 |
ZZE12#..IDN,MA |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-02010 |
ZZE12#..IDN,MA |
2 | ||
| 88467-02010 |
ZZE12#..MA |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-02010 |
ZZE12#..IDN,MA |
2 | ||
| 88467-02010 |
ZZE12#..MA |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ZZE12#..IND,MA |
1 | ||
| 88474-47010 |
ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02070 |
ZZE12#..MA |
1 | ||
| 88703-02210 |
ZZE12#..MA |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88704-02210 |
ZZE12#..MA |
1 | ||
| 88704-02440 |
ZZE12#..MA |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-02230 |
ZZE12#..MA |
1 | ||
| Common parts | ||||
| 88688-02510 | ||||
| 88688-02550 | ||||
| 88688-02610 | ||||
| 88718-02400 | ||||
| 88718-02410 | ||||
| 88718-02460 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 90091-20512 | ||||
| 90179-06156 | ||||
| 91511-60630 | ||||
| 91511-G0625 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
