ZZE122R-GEPEKE (2001)
Toyota Corolla (Asia/India)
Production
Jul 2001
-
Jan 2008
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0103-0603) ; (0603-0605)ZZE122..MA,PHL ; (0603-)IND ; (0603- )ZZE121

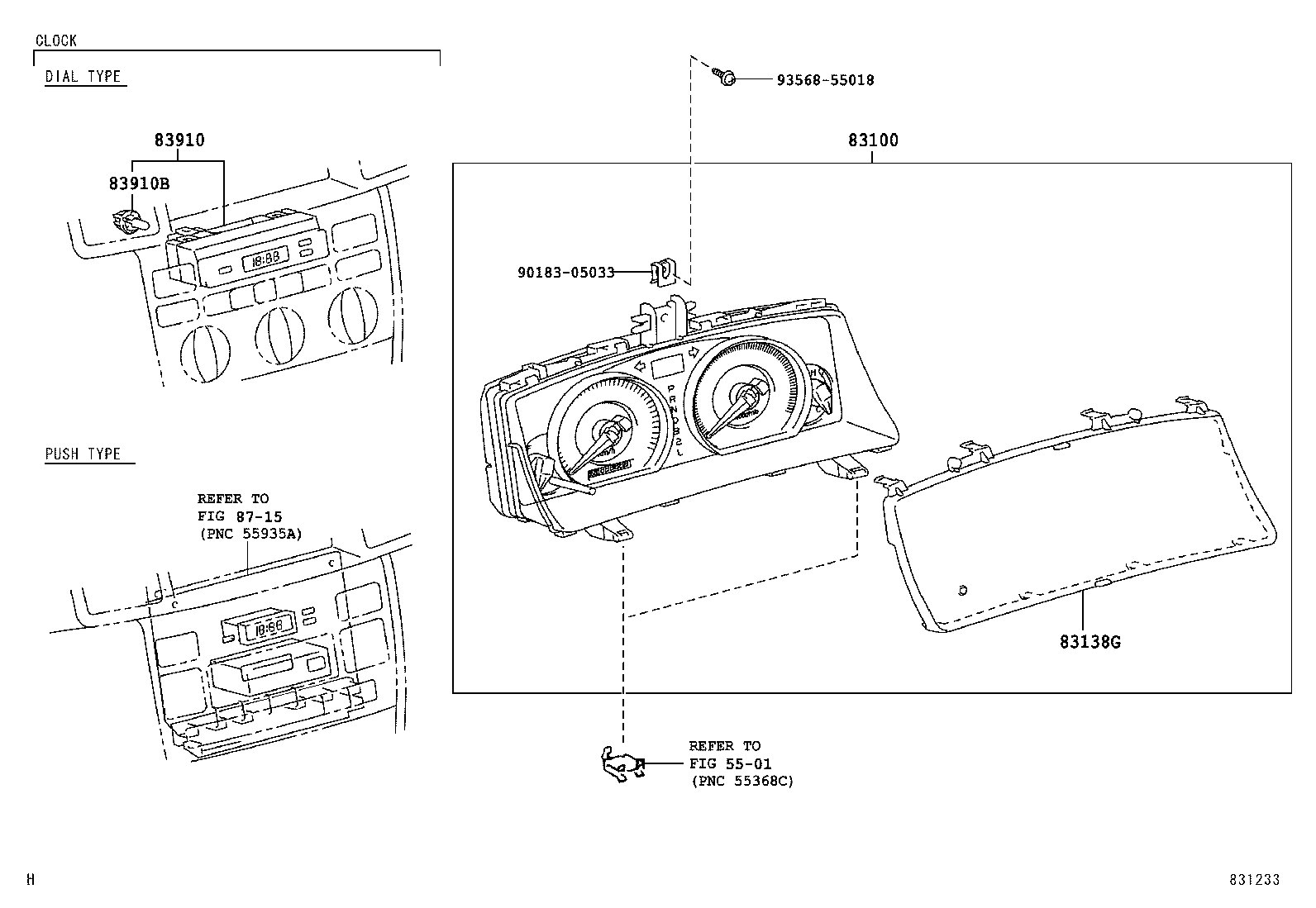

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-02C30 |
ZZE122..MA |
1 | ||
| 83800-02T30 |
ZZE122..MA |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-02S90 |
ZZE122..MA |
1 | ||
| 83852-02550 |
ZZE122..MA,PHL |
1 | ||
| Common parts | ||||
| 90183-05033 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8715 | ||||
(0603- )ZZE122..IDN,TAIW,TH,VN ; (0605- )ZZE122..MA,PHL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-02C30 |
ZZE122..MA |
1 | ||
| 83800-02T30 |
ZZE122..MA |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-02S90 |
ZZE122..MA |
1 | ||
| 83852-02550 |
ZZE122..MA,PHL |
1 | ||
| Common parts | ||||
| 90183-05033 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8715 | ||||
