ZZE122R-GEPEKE (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Jan 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

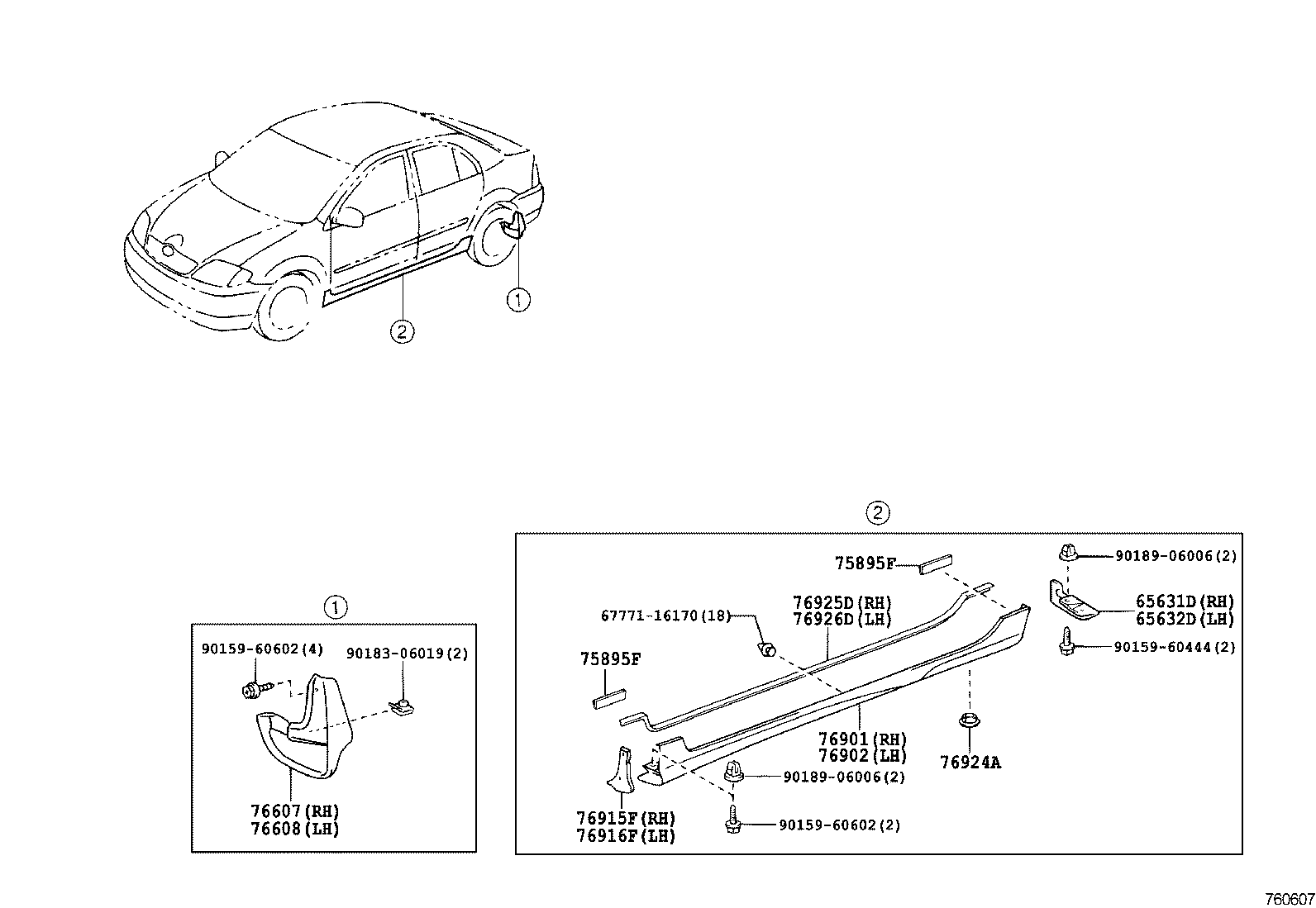

ILLUST NO. 1 OF 2(0103- )IDN,IND,PHL,TAIW,TH,VN ; (0107-0706)MA

Click highlighted areas on diagram

MUDGUARD

diagram 65631D 65631D 65632D 65632D 6777116170 75851E 75852B 75895F 75895F 76603 76604 76607 76608 76901 76902 76915F 76916F 76924A 76924A 76925D 76926D 9015960444 9015960444 9015960602 9015960602 9015960602 9018306019 9018906006 9018906006 9018906006 9018906006 9046710162
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-02040

ZZE12#..MA

 1
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-02040

ZZE12#..MA

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-02040

ZZE12#..MA

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-02040

ZZE12#..MA

 1
75851E - MOULDING, BODY ROCKER PANEL, RH
75851-12091

ZZE12#..ATM..MA

 1
75851-12090

ZZE12#

 1
75852B - MOULDING, BODY ROCKER PANEL, LH
75852-12060

ZZE12#

 1
75852-12061

ZZE12#..ATM..MA

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-02080

ZZE12#..ATM..MA

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-02080

ZZE12#..ATM..MA

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-02090

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-02090

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52020

ZZE12#

 16
76924-52021

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 16
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52020

ZZE12#

 16
76924-52021

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 16
Common parts
67771-16170
90159-60444
90159-60602
90183-06019
90189-06006
90467-10162

ILLUST NO. 1 OF 2(0706- )MA

Click highlighted areas on diagram

MUDGUARD

diagram 65631D 65632D 6777116170 75895F 75895F 76607 76608 76901 76902 76915F 76916F 76924A 76925D 76926D 9015960444 9015960602 9015960602 9018306019 9018906006 9018906006
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-02040

ZZE12#..MA

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-02040

ZZE12#..MA

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-02090

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-02090

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52020

ZZE12#

 16
76924-52021

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 16
Common parts
67771-16170
90159-60444
90159-60602
90183-06019
90189-06006
