Toyota Corolla (asia/india) ZZE122 FRONT SEAT & SEAT TRACK

ZZE122R-GEPEKE (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Jan 2008

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0103-0301) ; (0301-0310)IDN,MA,PHL,TAIW,TH,VN ;(0310-0311)IDN,MA,PHL,TH,VN ; (031

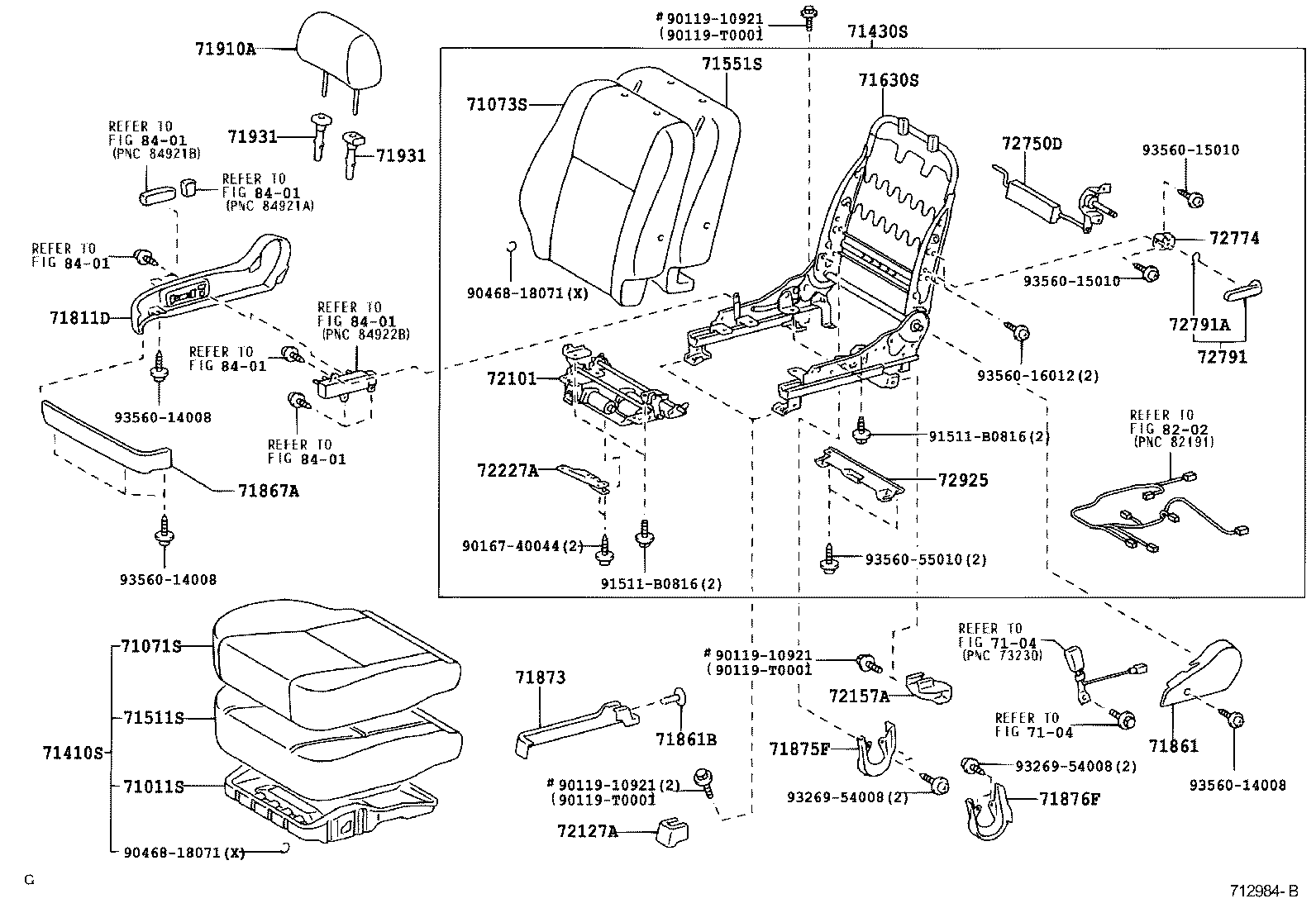

Click highlighted areas on diagram

NORMAL ADJUSTER

Part #	Description	Period	Qty
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02060A0	ZZE12#..MA TAIWAN SPEC,IVORY,TRIM0#	03/2001 - 01/2004	1
71811-06050A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 09/2007	1
71811-06050	ZZE122..MA	09/2007 - 01/2008	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02060A0	ZZE12#..MA IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 01/2004	1
71812-0A010A0	ZZE12#..MA IVORY,TRIM0#,THAILAND SPEC	03/2001 - 01/2004	1
71812-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
71812-0A010A0	ZZE12#..MA IVORY,TRIM0#,THAILAND SPEC	09/2007 - 01/2008	1
71812-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
71812-02060A0	ZZE122..IDN,MA;ZZE12#..RHD..ATM..(16E,18E) IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 12/2999	1
71812-02060	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
71861-02040	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
71861-02040A0	ZZE12#..ATM..MA IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 09/2007	1
71861-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
90467-07161A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-02030A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 08/2005	1
71862-0A010A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,THAILAND SPEC	03/2001 - 08/2005	1
71862-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
71862-02030A0	ZZE12#..ATM..MA IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 09/2007	1
71862-02030	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
71862-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
90467-07161A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02010A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
71873-02010A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02010A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
71874-02010A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71875-06060	ZZE12#..MA	09/2007 - 01/2008	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71875-06060	ZZE12#..MA	09/2007 - 01/2008	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71876-06060	ZZE12#..MA	09/2007 - 01/2008	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06060	ZZE12#..MA	09/2007 - 01/2008	1
71876-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-02020A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72127-02020A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-02020A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72127-02020A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02030A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72157-02030A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02030A0	ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH) IVORY,TRIM0#	03/2001 - 08/2005	1
72158-02030A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-02030	ZZE121..16J..TAIW;NZE120,ZZE12#..IDN,MA,PHL,TH,VN	03/2001 - 03/2004	1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-02030	ZZE121..MA,PHL,TH;ZZE121..16J..TAIW;NZE120,ZZE122..IDN,MA,TH,VN	03/2001 - 03/2004	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 08/2005	1
72526-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
72526-0A010A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,THAILAND SPEC	03/2001 - 08/2005	1
72526-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
72526-16010A0	ZZE12#..ATM..MA IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 09/2007	1
72526-16010	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
Common parts
90119-10921
90119-T0001
91511-B0816
91515-81025
93560-14008

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

Click highlighted areas on diagram

LH SEAT

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-02040	ZZE122..IND,MA;ZZE121..ATM..MA	11/2003 - 12/2999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-02B00A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 05/2006	1
71072-02721	ZZE12#..MA	09/2007 - 01/2008	1
71072-02721A1	ZZE12#..MA IVORY,TRIM0#	05/2006 - 09/2007	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-02B00A0	ZZE122..MA;ZZE122..18E..TH;ZZE122..MTM..18G..IDN IVORY,TRIM0#	11/2003 - 10/2004	1
71074-02A92A3	ZZE12#..MA IVORY,TRIM0#	05/2006 - 09/2007	1
71074-02B01A0	ZZE122..MA IVORY,TRIM0#	11/2004 - 05/2006	1
71074-02A92	ZZE12#..MA	09/2007 - 01/2008	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-02590A0	ZZE122..MA;ZZE122..18E..TH;ZZE122..MTM..18G..IDN ***,IVORY,TRIM0#	11/2003 - 11/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-02B70A0	ZZE122..MA;ZZE122..18E..TH;ZZE122..MTM..18G..IDN ***,IVORY,TRIM0#	11/2003 - 10/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-02090	ZZE12#..16E,18E,18G	03/2001 - 05/2001	1
71511-02100	ZZE122..IND,MA;ZZE121..ATM..MA	11/2003 - 12/2999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-02100	ZZE122..IND,MA;ZZE121..ATM..MA	11/2003 - 12/2999	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-02050	ZZE121..LHD..16J;ZZE12#..IDN,MA,TH	03/2001 - 01/2004	1
71640-02110	ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH;ZZE121..MTM..16J..PHL	11/2003 - 10/2004	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02060A0	ZZE12#..MA IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 01/2004	1
71812-0A010A0	ZZE12#..MA IVORY,TRIM0#,THAILAND SPEC	03/2001 - 01/2004	1
71812-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
71812-0A010A0	ZZE12#..MA IVORY,TRIM0#,THAILAND SPEC	09/2007 - 01/2008	1
71812-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
71812-02060A0	ZZE122..IDN,MA;ZZE12#..RHD..ATM..(16E,18E) IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 12/2999	1
71812-02060	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-02030A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 08/2005	1
71862-0A010A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,THAILAND SPEC	03/2001 - 08/2005	1
71862-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
71862-02030A0	ZZE12#..ATM..MA IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 09/2007	1
71862-02030	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
71862-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
90467-07161A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02010A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
71874-02010A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71875-06060	ZZE12#..MA	09/2007 - 01/2008	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06060	ZZE12#..MA	09/2007 - 01/2008	1
71876-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02730A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 05/2006	2
71910-02451A1	ZZE12#..MA IVORY,TRIM0#	05/2006 - 09/2007	2
71910-02451	ZZE12#..MA	09/2007 - 01/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	ZZE12#..ATM..MA W/O(LOCK),IVORY,TRIM0#	10/2003 - 09/2007	1
71930-02050A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH W(LOCK),TAIWAN SPEC,IVORY,TRIM0#	11/2003 - 12/2999	2
71931-12040A5	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W/O(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71930-20130A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	ZZE12#..ATM..MA W/O(LOCK),IVORY,TRIM0#	10/2003 - 09/2007	1
71930-02050A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH W(LOCK),TAIWAN SPEC,IVORY,TRIM0#	11/2003 - 12/2999	2
71931-12040A5	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W/O(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71930-20130A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-02020A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72127-02020A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02030A0	ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH) IVORY,TRIM0#	03/2001 - 08/2005	1
72158-02030A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-12030A0	ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,THAILAND SPEC	03/2001 - 08/2005	1
72457-18010A1	ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 08/2005	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 08/2005	1
72526-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
72526-0A010A0	ZZE12#..RHD..(16E,18E,18G,18J) IVORY,TRIM0#,THAILAND SPEC	03/2001 - 08/2005	1
72526-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
72526-16010A0	ZZE12#..ATM..MA IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 09/2007	1
72526-16010	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
72791 - LEVER, LUMBAR SUPPORT
72791-22020A2	ZZE122..(18E,18G)..(IND,MA) IVORY,TRIM0#	10/2003 - 12/2999	1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01274	ZZE122..(18E,18G)..(IND,MA,VN)	10/2003 - 12/2999	1
Common parts
90119-10921
90119-T0001
90468-18071
90520-01006
91511-B0816
93269-54008
93560-14008
93560-16012

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

Click highlighted areas on diagram

RH SEAT

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-06060	ZZE122..18G..(MA,TH)	11/2003 - 01/2008	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-02B20A0	ZZE122..MA IVORY,TRIM0#	01/2004 - 05/2006	1
71071-02N80A0	ZZE122..MA IVORY,TRIM0#	05/2006 - 01/2008	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-02A30A0	ZZE122..MA IVORY,TRIM0#	01/2004 - 10/2004	1
71073-02A31A0	ZZE122..MA IVORY,TRIM0#	11/2004 - 05/2006	1
71073-02Q00A0	ZZE122..MA IVORY,TRIM0#	05/2006 - 01/2008	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-02490A0	ZZE12#..16E,18E,18G IVORY,TRIM0#	03/2001 - 05/2001	1
71410-02A20A0	ZZE122..MA ***,IVORY,TRIM0#	01/2004 - 11/2004	1
71410-02490B1	ZZE12#..16E,18E,18G STONE,TRIM1#	03/2001 - 05/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-02550A1	ZZE122..MA IVORY,TRIM0#	07/2001 - 01/2004	1
71430-02E20A0	ZZE122..MA ***,IVORY,TRIM0#	01/2004 - 10/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02100	ZZE12#..16E,18E,18G	03/2001 - 05/2001	1
71511-02190	ZZE122..MA	01/2004 - 01/2008	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02080	ZZE12#..(16E,18G)..(IDN,MA)	07/2001 - 01/2004	1
71551-02320	ZZE122..MA	01/2004 - 01/2008	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02210	ZZE122..18G..(MA,TH)	11/2003 - 10/2004	1
71630-02211	ZZE122..18G..(MA,TH)	11/2004 - 01/2008	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02060A0	ZZE12#..MA TAIWAN SPEC,IVORY,TRIM0#	03/2001 - 01/2004	1
71811-06050A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 09/2007	1
71811-06050	ZZE122..MA	09/2007 - 01/2008	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
71861-02040	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
71861-02040A0	ZZE12#..ATM..MA IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 09/2007	1
71861-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
90467-07161A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02010A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
71873-02010A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71875-06060	ZZE12#..MA	09/2007 - 01/2008	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71876-06060	ZZE12#..MA	09/2007 - 01/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02730A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 05/2006	2
71910-02451A1	ZZE12#..MA IVORY,TRIM0#	05/2006 - 09/2007	2
71910-02451	ZZE12#..MA	09/2007 - 01/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	ZZE12#..ATM..MA W/O(LOCK),IVORY,TRIM0#	10/2003 - 09/2007	1
71930-02050A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH W(LOCK),TAIWAN SPEC,IVORY,TRIM0#	11/2003 - 12/2999	2
71931-12040A5	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W/O(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71930-20130A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	ZZE12#..ATM..MA W/O(LOCK),IVORY,TRIM0#	10/2003 - 09/2007	1
71930-02050A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH W(LOCK),TAIWAN SPEC,IVORY,TRIM0#	11/2003 - 12/2999	2
71931-12040A5	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W/O(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71930-20130A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-02020A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72127-02020A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02030A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72157-02030A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-12030A0	ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,THAILAND SPEC	03/2001 - 08/2005	1
72457-18010A1	ZZE122..18J..IDN;ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0#,TAIWAN SPEC	03/2001 - 08/2005	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-02010	ZZE122..(18E,18G)..(IND,MA)	11/2003 - 12/2999	1
72791 - LEVER, LUMBAR SUPPORT
72791-22020A2	ZZE122..(18E,18G)..(IND,MA) IVORY,TRIM0#	10/2003 - 12/2999	1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01274	ZZE122..(18E,18G)..(IND,MA,VN)	10/2003 - 12/2999	1
Common parts
90119-10921
90119-T0001
90468-18071
90520-01006
91511-B0816
93269-54008
93560-14008
93560-15010
93560-16012

(0311- )18G..MA,TH ; (0603- )18E..TH

Click highlighted areas on diagram

RH SEAT(POWER SEAT)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-06060	ZZE122..18G..(MA,TH)	11/2003 - 01/2008	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-02B20A0	ZZE122..MA IVORY,TRIM0#	01/2004 - 05/2006	1
71071-02N80A0	ZZE122..MA IVORY,TRIM0#	05/2006 - 01/2008	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-02A30A0	ZZE122..MA IVORY,TRIM0#	01/2004 - 10/2004	1
71073-02A31A0	ZZE122..MA IVORY,TRIM0#	11/2004 - 05/2006	1
71073-02Q00A0	ZZE122..MA IVORY,TRIM0#	05/2006 - 01/2008	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-02490A0	ZZE12#..16E,18E,18G IVORY,TRIM0#	03/2001 - 05/2001	1
71410-02A20A0	ZZE122..MA ***,IVORY,TRIM0#	01/2004 - 11/2004	1
71410-02490B1	ZZE12#..16E,18E,18G STONE,TRIM1#	03/2001 - 05/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-02550A1	ZZE122..MA IVORY,TRIM0#	07/2001 - 01/2004	1
71430-02E20A0	ZZE122..MA ***,IVORY,TRIM0#	01/2004 - 10/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02100	ZZE12#..16E,18E,18G	03/2001 - 05/2001	1
71511-02190	ZZE122..MA	01/2004 - 01/2008	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02080	ZZE12#..(16E,18G)..(IDN,MA)	07/2001 - 01/2004	1
71551-02320	ZZE122..MA	01/2004 - 01/2008	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02210	ZZE122..18G..(MA,TH)	11/2003 - 10/2004	1
71630-02211	ZZE122..18G..(MA,TH)	11/2004 - 01/2008	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02060A0	ZZE12#..MA TAIWAN SPEC,IVORY,TRIM0#	03/2001 - 01/2004	1
71811-06050A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 09/2007	1
71811-06050	ZZE122..MA	09/2007 - 01/2008	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0A010A0	ZZE12#..ATM..MA IVORY,TRIM0#,THAILAND SPEC	11/2003 - 09/2007	1
71861-02040	ZZE12#..MA TAIWAN SPEC	09/2007 - 01/2008	1
71861-02040A0	ZZE12#..ATM..MA IVORY,TRIM0#,TAIWAN SPEC	11/2003 - 09/2007	1
71861-0A010	ZZE12#..MA THAILAND SPEC	09/2007 - 01/2008	1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
90467-07161A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-06020A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 09/2007	1
71867-06020	ZZE122..MA	09/2007 - 01/2008	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02010A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
71873-02010A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71875-06060	ZZE12#..MA	09/2007 - 01/2008	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06060A0	ZZE12#..ATM..MA IVORY,TRIM0#	10/2003 - 09/2007	1
71876-06060	ZZE12#..MA	09/2007 - 01/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02730A0	ZZE122..MA IVORY,TRIM0#	11/2003 - 05/2006	2
71910-02451A1	ZZE12#..MA IVORY,TRIM0#	05/2006 - 09/2007	2
71910-02451	ZZE12#..MA	09/2007 - 01/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	ZZE12#..ATM..MA W/O(LOCK),IVORY,TRIM0#	10/2003 - 09/2007	1
71930-02050A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH W(LOCK),TAIWAN SPEC,IVORY,TRIM0#	11/2003 - 12/2999	2
71931-12040A5	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W/O(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71930-20130A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	ZZE12#..ATM..MA W/O(LOCK),IVORY,TRIM0#	10/2003 - 09/2007	1
71930-02050A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH W(LOCK),TAIWAN SPEC,IVORY,TRIM0#	11/2003 - 12/2999	2
71931-12040A5	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W/O(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
71930-20130A0	ZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TAIW,TH W(LOCK),THAILAND SPEC,IVORY,TRIM0#	10/2003 - 12/2999	2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-02020A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72127-02020A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02030A0	ZZE12#..MA IVORY,TRIM0#	03/2001 - 01/2004	1
72157-02030A0	ZZE122..IND,MA;ZZE121..ATM..MA IVORY,TRIM0#	10/2003 - 12/2999	1
72227A - BRACKET, SEAT TRACK, NO.2 RH
72227-02020	ZZE122..18G..(MA,TH)	11/2003 - 01/2008	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-02010	ZZE122..(18E,18G)..(IND,MA)	11/2003 - 12/2999	1
72791 - LEVER, LUMBAR SUPPORT
72791-22020A2	ZZE122..(18E,18G)..(IND,MA) IVORY,TRIM0#	10/2003 - 12/2999	1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01274	ZZE122..(18E,18G)..(IND,MA,VN)	10/2003 - 12/2999	1
Common parts
90119-10921
90119-T0001
90167-40044
90468-18071
91511-B0816
93269-54008
93560-14008
93560-15010
93560-16012
93560-55010
Linked diagrams
7104
8202
8401

ZZE122R-GEPEKE (2001)

ILLUST NO. 2 OF 2(0103-0301) ; (0301-0310)IDN,MA,PHL,TAIW,TH,VN ;(0310-0311)IDN,MA,PHL,TH,VN ; (031

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

(0311- )18G..MA,TH ; (0603- )18E..TH

Part Price Details
