ZZE122L-GEPGKR (2001)
Toyota Corolla (Asia/India)
(0103-0310)TAIW ; (0103- )IDN,IND,MA,PHL,TH,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-8C001 |
ZZE122..TAIW |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-8C001 |
ZZE122..TAIW |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-02340 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110-02450 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-02340 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110-02450 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13047 |
NZE120,ZZE12# 12V 51W,HALOGEN |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
ZZE12#..(16J,18E,18G)..TAIW 12V 65W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
ZZE12#..(16J,18E,18G)..TAIW 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20007 |
ZZE122..TAIW 85V 35W |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-8C003 |
ZZE12#..TAIW |
1 | ||
| 81130-8C006 |
ZZE12#..TAIW |
1 | ||
| 81140-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81145-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-8C001 |
ZZE122..TAIW |
1 | ||
| 81134-8C001 |
ZZE122..TAIW |
6 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-8C000 |
ZZE12#..(16J,18E,18G)..TAIW |
4 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-8C000 |
ZZE12#..(16J,18E,18G)..TAIW |
4 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-8C000 |
ZZE12#..(16J,18E,18G)..TAIW |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-02330 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81150-02440 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-02330 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81150-02440 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81185-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81070-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81170-8C003 |
ZZE12#..TAIW |
1 | ||
| 81170-8C006 |
ZZE12#..TAIW |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81139-8C001 |
ZZE122..TAIW |
2 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15009 |
ZZE12#..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15009 |
NZE120,ZZE12# 12V 21W,AMBER |
2 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15009 |
ZZE12#..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15009 |
NZE120,ZZE12# 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
ZZE12#..TAIW |
2 | ||
| 90075-60006 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
ZZE12#..TAIW |
2 | ||
| 90075-60006 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZZE12#..TAIW 12V 5W |
2 | ||
| 99132-12050 |
NZE120,ZZE12# 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZZE12#..TAIW 12V 5W |
2 | ||
| 99132-12050 |
NZE120,ZZE12# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 9008C-98004 |
ZZE122..TAIW W(DISCHARGE HEADLAMP) |
2 | ||
| 90980-11155 |
ZZE12#..TAIW |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 9008C-98004 |
ZZE122..TAIW W(DISCHARGE HEADLAMP) |
2 | ||
| 90980-11155 |
ZZE12#..TAIW |
2 | ||
| Common parts | ||||
| 90105-06246 | ||||
| 90109-06293 | ||||
| 90179-06127 | ||||

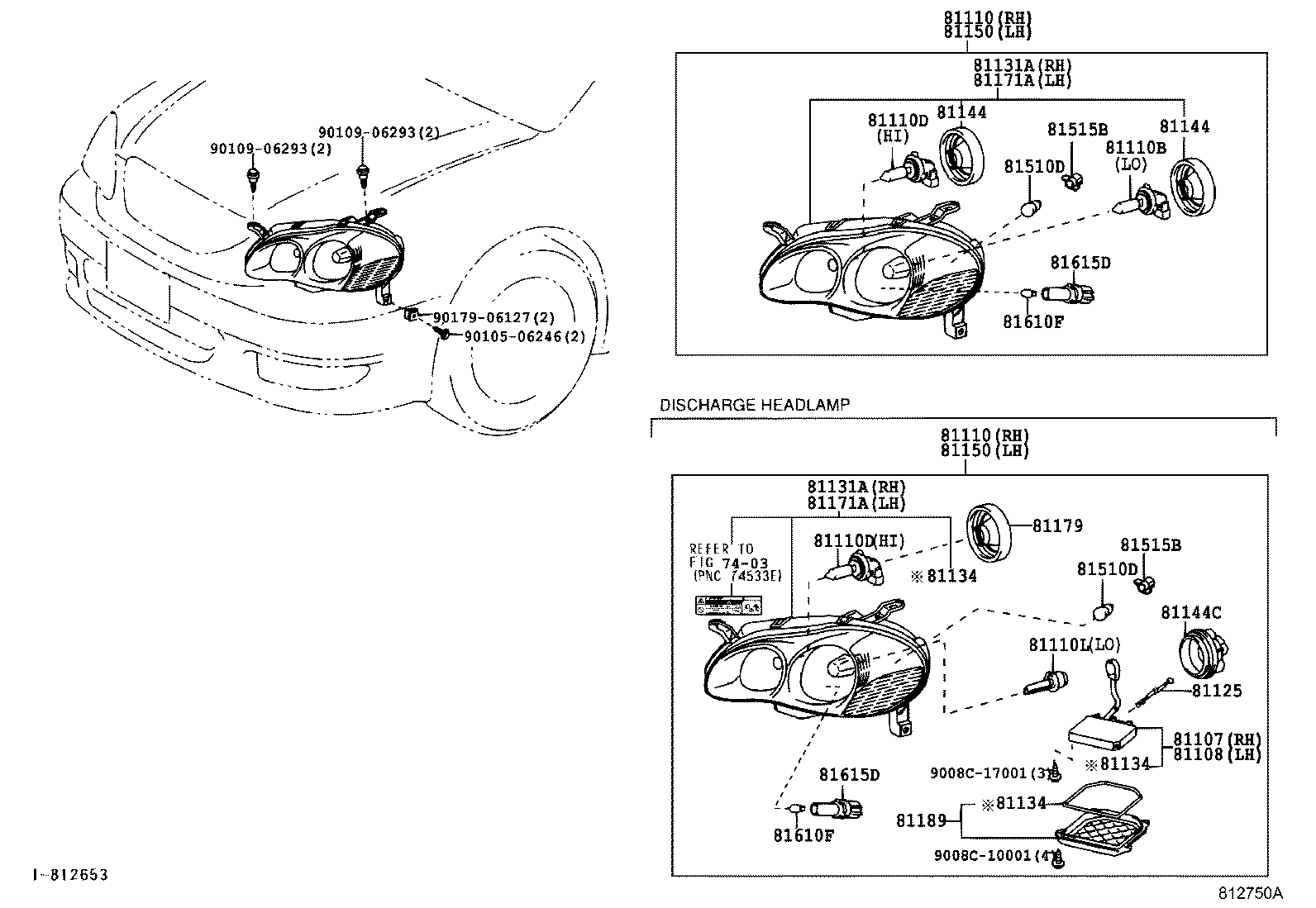

| Linked diagrams | ||||
| 7403 | ||||
(0310-0712)TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-8C001 |
ZZE122..TAIW |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-8C001 |
ZZE122..TAIW |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-02340 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110-02450 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-02340 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110-02450 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13047 |
NZE120,ZZE12# 12V 51W,HALOGEN |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
ZZE12#..(16J,18E,18G)..TAIW 12V 65W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
ZZE12#..(16J,18E,18G)..TAIW 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20007 |
ZZE122..TAIW 85V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-8C001 |
ZZE122..TAIW |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-8C003 |
ZZE12#..TAIW |
1 | ||
| 81130-8C006 |
ZZE12#..TAIW |
1 | ||
| 81140-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81145-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-8C003 |
ZZE12#..TAIW |
1 | ||
| 81130-8C006 |
ZZE12#..TAIW |
1 | ||
| 81140-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81145-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-8C001 |
ZZE122..TAIW |
1 | ||
| 81134-8C001 |
ZZE122..TAIW |
6 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-8C001 |
ZZE122..TAIW |
1 | ||
| 81134-8C001 |
ZZE122..TAIW |
6 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-8C001 |
ZZE122..TAIW |
1 | ||
| 81134-8C001 |
ZZE122..TAIW |
6 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-8C000 |
ZZE12#..(16J,18E,18G)..TAIW |
4 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-8C000 |
ZZE12#..(16J,18E,18G)..TAIW |
4 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81135-8C001 |
ZZE122..TAIW |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-02330 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81150-02440 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-02330 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81150-02440 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81185-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81070-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81170-8C003 |
ZZE12#..TAIW |
1 | ||
| 81170-8C006 |
ZZE12#..TAIW |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81185-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81070-8C001 |
ZZE122..TAIW DISCHARGE HEADLAMP |
1 | ||
| 81170-8C003 |
ZZE12#..TAIW |
1 | ||
| 81170-8C006 |
ZZE12#..TAIW |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-8C002 |
ZZE122..TAIW |
2 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81139-8C001 |
ZZE122..TAIW |
2 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15009 |
ZZE12#..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15009 |
NZE120,ZZE12# 12V 21W,AMBER |
2 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15009 |
ZZE12#..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15009 |
NZE120,ZZE12# 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
ZZE12#..TAIW |
2 | ||
| 90075-60006 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
ZZE12#..TAIW |
2 | ||
| 90075-60006 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZZE12#..TAIW 12V 5W |
2 | ||
| 99132-12050 |
NZE120,ZZE12# 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZZE12#..TAIW 12V 5W |
2 | ||
| 99132-12050 |
NZE120,ZZE12# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 9008C-98004 |
ZZE122..TAIW W(DISCHARGE HEADLAMP) |
2 | ||
| 90980-11155 |
ZZE12#..TAIW |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 9008C-98004 |
ZZE122..TAIW W(DISCHARGE HEADLAMP) |
2 | ||
| 90980-11155 |
ZZE12#..TAIW |
2 | ||
| Common parts | ||||
| 9008C-10001 | ||||
| 9008C-17001 | ||||
| 90105-06246 | ||||
| 90109-06293 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 7403 | ||||
