ZZE122L-GEPGKR (2001)

Toyota Corolla (Asia/India)

Production Mar 2001 - Dec 2007
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )1NZFE,1ZZFE..IDN,MA,PHL,TAIW,TH,VN

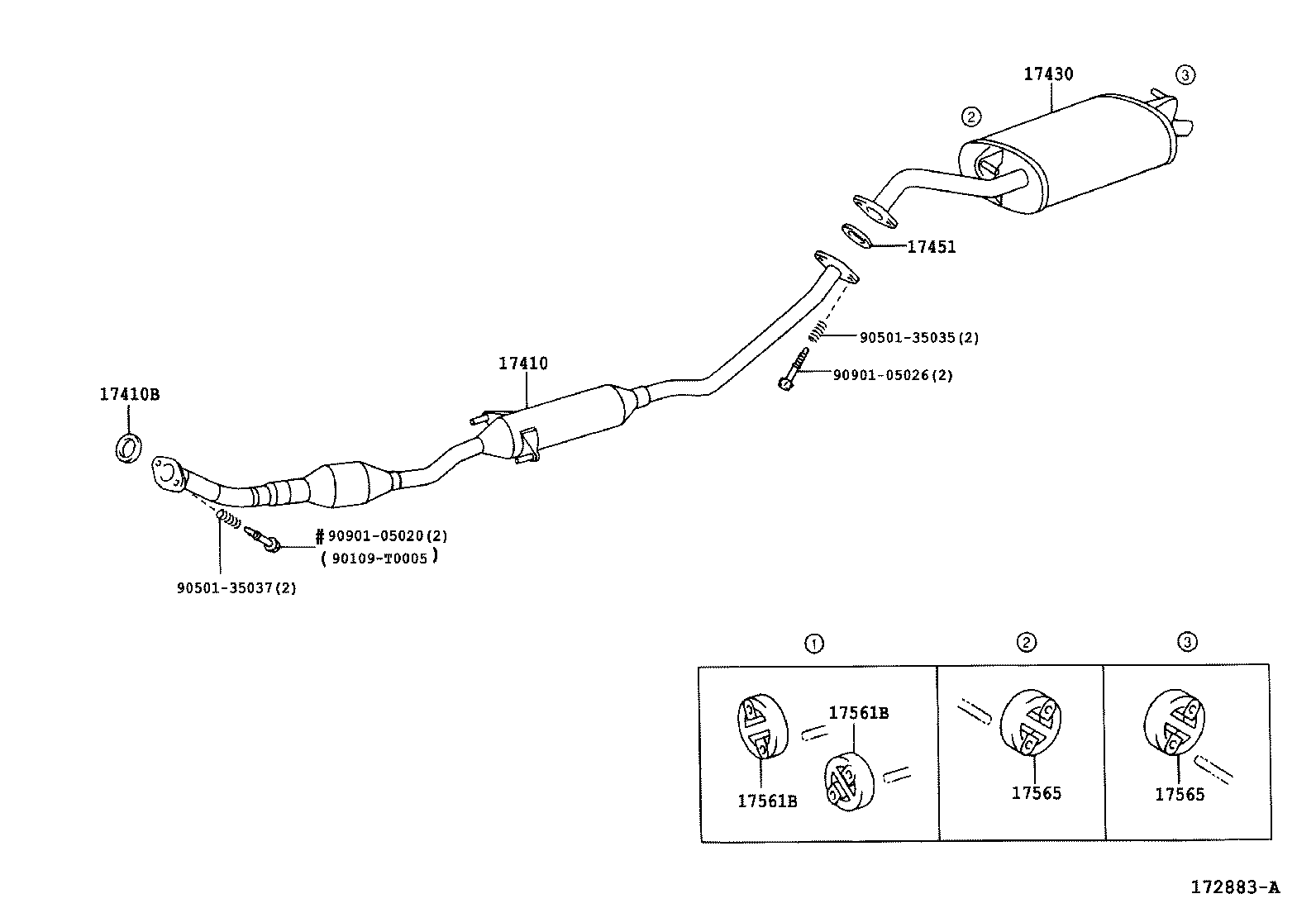

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17561B 17561B 17565 17565 90109T0005 9050135035 9050135037 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0D100

1ZZFE..ZZE122..TAIW

 1
17410-0D100

1ZZFE..ZZE122..LHD..ATM

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

1ZZFE,3ZZFE..ZZE12#..(16J,18E,18G)..TAIW

 1
17451-22070

1ZZFE,3ZZFE..ZZE12#..TAIW

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0D110

1ZZFE..ZZE122..TAIW

 1
17430-0D110

1ZZFE..ZZE122..TAIW

 1
17451 - GASKET, EXHAUST PIPE
17451-16030

1ZZFE..ZZE122..TAIW

 1
17451-16030

1ZZFE..ZZE122..TAIW

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030

1ZZFE,3ZZFE..ZZE12#..(16J,18E,18G)..TAIW

 2
17565-21030

1ZZFE,3ZZFE..ZZE12#..TAIW

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030

1ZZFE,3ZZFE..ZZE12#..(16J,18E,18G)..TAIW

 2
17565-21030

1ZZFE,3ZZFE..ZZE12#..TAIW

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040

1ZZFE,3ZZFE..ZZE12#..TAIW

 2
17565-21040

1ZZFE,3ZZFE..ZZE12#..(16J,18E,18G)..TAIW

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040

1ZZFE,3ZZFE..ZZE12#..TAIW

 2
17565-21040

1ZZFE,3ZZFE..ZZE12#..(16J,18E,18G)..TAIW

 2
Common parts
90109-T0005
90501-35035
90501-35037
90901-05020
90901-05026
