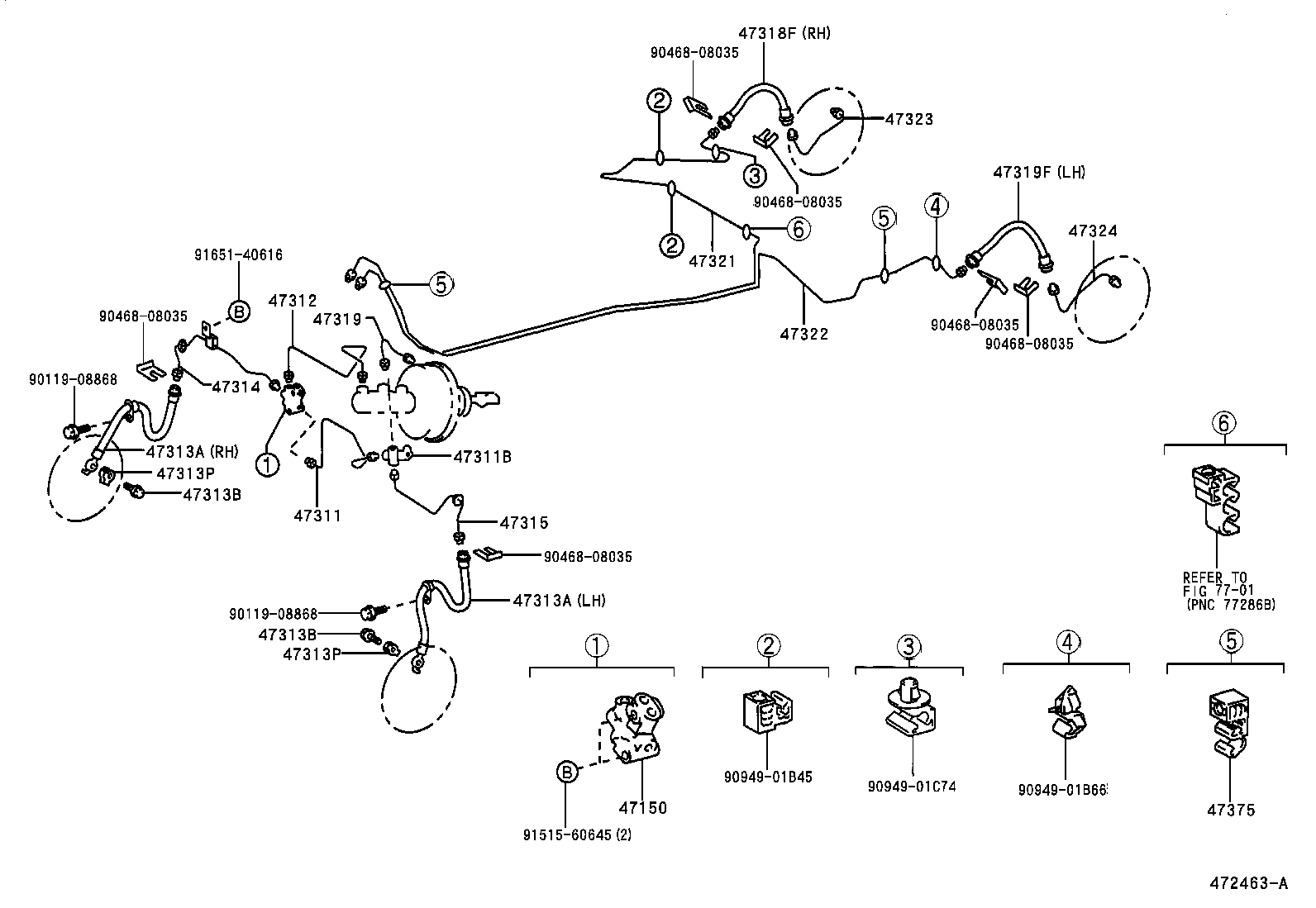

ZZE122L-GEPEKR (2001)
Toyota Corolla (Asia/India)
(0103- )16J..TAIW ; (0107- )16J,J..PHL,VN; (0211- )18E..TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12070 |
ZZE122..18E..TAIW |
1 | ||
| 47150-12070 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12810 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-13067 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90904-12051 |
ZZE122..18E..TAIW |
1 | ||
| 90904-13067 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90904-12051 |
ZZE122..18E..TAIW |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94107 |
ZZE12#..(16J,18E,18G)..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..(16J,18E,18G)..TAIW RH |
1 | ||
| 90080-94107 |
ZZE12#..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..TAIW RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94107 |
ZZE12#..(16J,18E,18G)..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..(16J,18E,18G)..TAIW RH |
1 | ||
| 90080-94107 |
ZZE12#..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..TAIW RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90401-10058 |
ZZE12#..TAIW |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90401-10058 |
ZZE12#..TAIW |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE12#..TAIW |
2 | ||
| 47389-50020 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 47389-50021 |
ZZE12#..TAIW |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE12#..TAIW |
2 | ||
| 47389-50020 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 47389-50021 |
ZZE12#..TAIW |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12440 |
ZZE122..18E..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47314-12440 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12510 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47315-12510 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-12160 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47319-12160 |
ZZE122..18E..TAIW |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12280 |
ZZE12#..(16J,18E,18G)..TAIW |
1 | ||
| 47321-12280 |
ZZE12#..TAIW |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12400 |
NZE120,ZZE12# |
1 | ||
| 47322-12400 |
ZZE12#..TAIW |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-63010 |
ZZE122..18E..TAIW |
1 | ||
| 47323-63010 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-63010 |
ZZE122..18E..TAIW |
1 | ||
| 47324-63010 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
ZZE12#..TAIW |
2 | ||
| 77299-32030 |
NZE120,ZZE12# |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

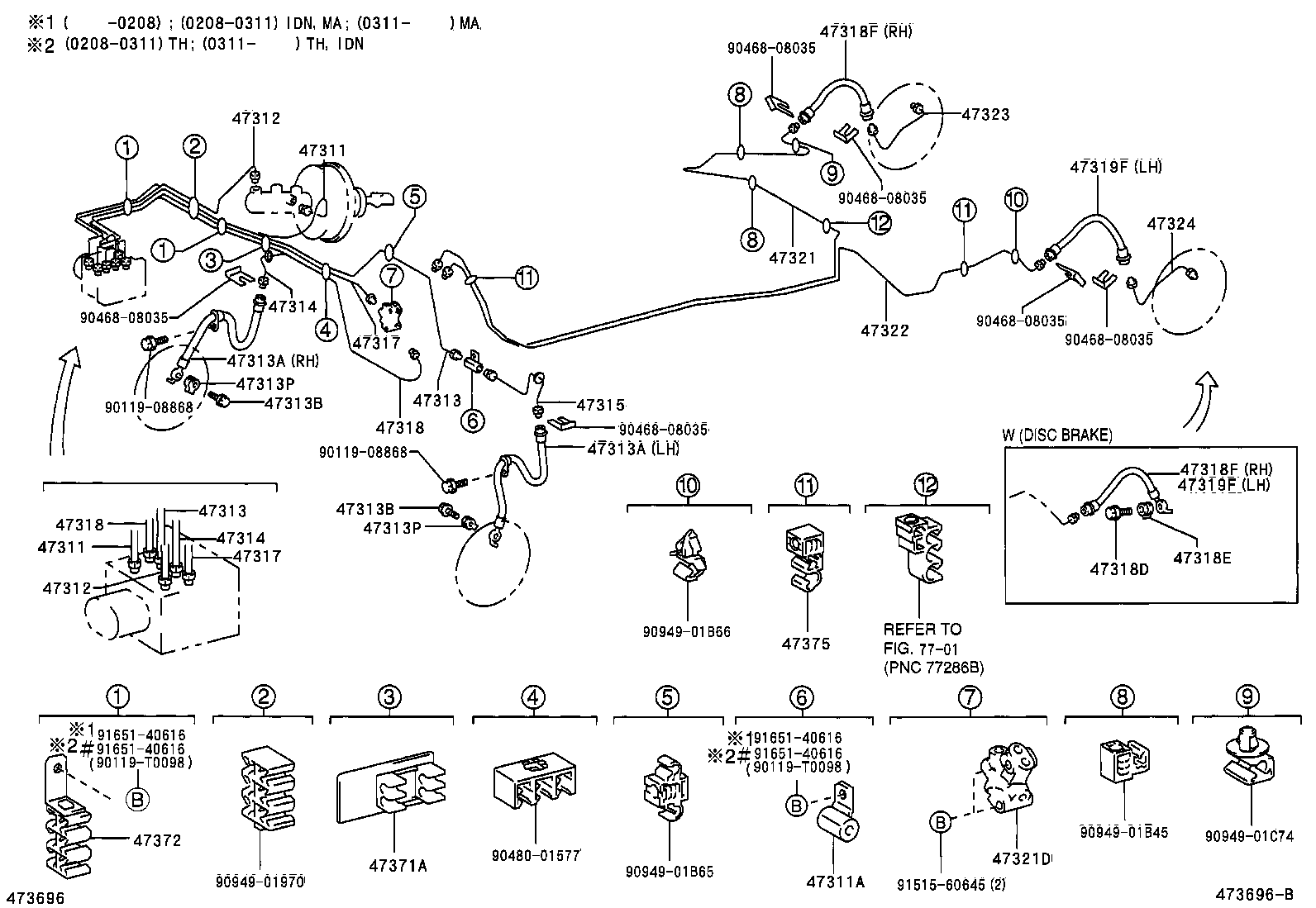

ILLUST NO. 1 OF 2(0103-0211)16E,18E..TAIW ; (0107- )16G,18G..PHL,VN ; (0211- )18E..TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12810 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12810 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-13067 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90904-12051 |
ZZE122..18E..TAIW |
1 | ||
| 90904-13067 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90904-12051 |
ZZE122..18E..TAIW |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94107 |
ZZE12#..(16J,18E,18G)..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..(16J,18E,18G)..TAIW RH |
1 | ||
| 90080-94107 |
ZZE12#..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..TAIW RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94107 |
ZZE12#..(16J,18E,18G)..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..(16J,18E,18G)..TAIW RH |
1 | ||
| 90080-94107 |
ZZE12#..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..TAIW RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90401-10058 |
ZZE12#..TAIW |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90401-10058 |
ZZE12#..TAIW |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE12#..TAIW |
2 | ||
| 47389-50020 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 47389-50021 |
ZZE12#..TAIW |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE12#..TAIW |
2 | ||
| 47389-50020 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 47389-50021 |
ZZE12#..TAIW |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12440 |
ZZE122..18E..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47314-12440 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12440 |
ZZE122..18E..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47314-12440 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12510 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47315-12510 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12400 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12400 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
ZZE122..TAIW |
2 | ||
| 90401-10045 |
ZZE122..TAIW |
2 | ||
| 90401-10058 |
ZZE122..TAIW |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
ZZE122..TAIW |
2 | ||
| 90401-10045 |
ZZE122..TAIW |
2 | ||
| 90401-10058 |
ZZE122..TAIW |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE122..TAIW |
2 | ||
| 47389-50021 |
ZZE122..TAIW |
2 | ||
| 47389-50020 |
ZZE122..TAIW |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE122..TAIW |
2 | ||
| 47389-50021 |
ZZE122..TAIW |
2 | ||
| 47389-50020 |
ZZE122..TAIW |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12280 |
ZZE12#..(16J,18E,18G)..TAIW |
1 | ||
| 47321-12280 |
ZZE12#..TAIW |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ZZE122..TAIW |
1 | ||
| 90412-10140 |
ZZE122..TAIW |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12400 |
NZE120,ZZE12# |
1 | ||
| 47322-12400 |
ZZE12#..TAIW |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12230 |
ZZE122..TAIW |
1 | ||
| 47371-12230 |
ZZE122..TAIW |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
ZZE122..TAIW |
2 | ||
| 47374-12050 |
ZZE122..TAIW |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-52010 |
ZZE122..TAIW |
1 | ||
| 47371-52010 |
ZZE122..TAIW |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-52010 |
ZZE122..TAIW |
1 | ||
| 47372-52010 |
ZZE122..TAIW |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
ZZE12#..TAIW |
2 | ||
| 77299-32030 |
NZE120,ZZE12# |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90949-01970 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C50 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(0105-0211)16E,16J,18E..TH ; (0107- )18G..IDN; (0107- )ZZE121..MA ; (0211-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12810 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12810 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-02320 |
ZZE122..18E..TAIW |
1 | ||
| 47311-12830 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12430 |
ZZE122..18E..TAIW |
1 | ||
| 47312-12450 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313-12620 |
ZZE122..18E..TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94107 |
ZZE12#..(16J,18E,18G)..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..(16J,18E,18G)..TAIW RH |
1 | ||
| 90080-94107 |
ZZE12#..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..TAIW RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94107 |
ZZE12#..(16J,18E,18G)..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..(16J,18E,18G)..TAIW RH |
1 | ||
| 90080-94107 |
ZZE12#..TAIW LH |
1 | ||
| 90080-94106 |
ZZE12#..TAIW RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90401-10058 |
ZZE12#..TAIW |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90401-10058 |
ZZE12#..TAIW |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE12#..TAIW |
2 | ||
| 47389-50020 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 47389-50021 |
ZZE12#..TAIW |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE12#..TAIW |
2 | ||
| 47389-50020 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 47389-50021 |
ZZE12#..TAIW |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12440 |
ZZE122..18E..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47314-12440 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12440 |
ZZE122..18E..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47314-12440 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47314-12480 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12510 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47315-12510 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47317-12220 |
ZZE122..18E..TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12400 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12400 |
ZZE12#..(16E,18E)..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318-02210 |
ZZE122..18E..TAIW |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
ZZE122..TAIW |
2 | ||
| 90401-10045 |
ZZE122..TAIW |
2 | ||
| 90401-10058 |
ZZE122..TAIW |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE122..TAIW |
2 | ||
| 47389-50021 |
ZZE122..TAIW |
2 | ||
| 47389-50020 |
ZZE122..TAIW |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94110 |
ZZE122..18E..TAIW W/O(ABS) |
1 | ||
| 90080-94112 |
ZZE122..TAIW |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12280 |
ZZE12#..(16J,18E,18G)..TAIW |
1 | ||
| 47321-12280 |
ZZE12#..TAIW |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ZZE122..TAIW |
1 | ||
| 90412-10140 |
ZZE122..TAIW |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12400 |
NZE120,ZZE12# |
1 | ||
| 47322-12400 |
ZZE12#..TAIW |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-63010 |
ZZE122..18E..TAIW |
1 | ||
| 47323-63010 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-63010 |
ZZE122..18E..TAIW |
1 | ||
| 47324-63010 |
ZZE12#..(16J,18E)..TAIW |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12230 |
ZZE122..TAIW |
1 | ||
| 47371-12230 |
ZZE122..TAIW |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
ZZE122..TAIW |
2 | ||
| 47374-12050 |
ZZE122..TAIW |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
ZZE12#..TAIW |
2 | ||
| 77299-32030 |
NZE120,ZZE12# |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0098 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01970 | ||||
| 90949-01B45 | ||||
| 90949-01B65 | ||||
| 90949-01B66 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(0103-0211)16E,18E..TAIW ; (0105-0211)16E,16J,18E..TH ; (0107- )16E,16G..MA,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
ZZE122..18E..TAIW |
1 | ||
| 31478-30010 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12130 |
ZZE12#..16E,18E |
1 | ||
| 44050-12131 |
ZZE122..18E;ZZE121..16E..TAIW;ZZE122..18G..(IDN,PHL,VN) |
1 | ||
| 44050-12133 |
ZZE122..18E..TAIW |
1 | ||
| 44050-12132 |
ZZE122..ATM..18E;ZZE121..16E..TAIW;ZZE122..18G..(IDN,PHL,VN) |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
3 | ||
| 44546-12100 |
ZZE122..18E..TAIW |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
3 | ||
| 44546-12100 |
ZZE122..18E..TAIW |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
3 | ||
| 44546-12100 |
ZZE122..18E..TAIW |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-12060 |
ZZE122..18E..TAIW |
1 | ||
| 44590-12060 |
ZZE122..18E..TAIW |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
ZZE122..18E..TAIW |
1 | ||
| 47547-22020 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08C24 | ||||
| 90179-08189 | ||||
| 90561-06013 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
