ZZE122L-GEPEKR (2001)
Toyota Corolla (Asia/India)
ILLUST NO. 2 OF 2(0103- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-02050 |
NZE120,ZZE12#..LHD |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-02020 |
ZZE12#..(16J,18E,18G)..TAIW |
1 | ||

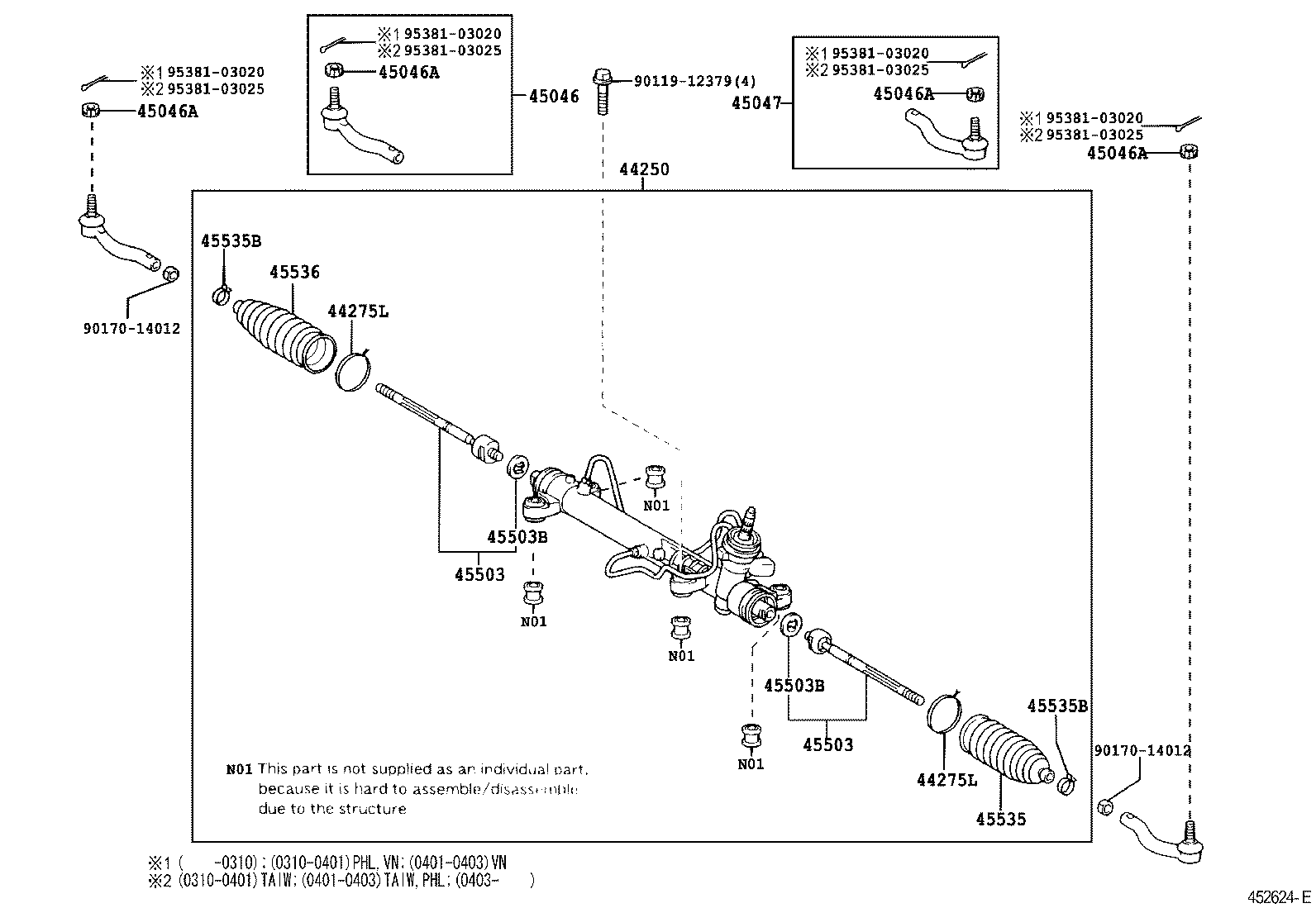

ILLUST NO. 1 OF 2(0103- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-02040 |
NZE120,ZZE12#..LHD |
1 | ||
| 44250-02040 |
ZZE12#..TAIW |
1 | ||
| 44275L - WIRE, BOOT | ||||
| 90580-14073 |
ZZE12#..TAIW |
2 | ||
| 90580-14073 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 44275L - WIRE, BOOT | ||||
| 90580-14073 |
ZZE12#..TAIW |
2 | ||
| 90580-14073 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09160 |
ZZE12#..(16J,18E,18G)..TAIW |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90171-12028 |
ZZE12#..TAIW |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90171-12028 |
ZZE12#..TAIW |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90171-12028 |
ZZE12#..TAIW |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 90171-12028 |
ZZE12#..TAIW |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-09050 |
ZZE12#..(16J,18E,18G)..TAIW |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09220 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09220 |
ZZE12#..(16J,18E,18G)..TAIW |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90080-21019 |
ZZE12#..(16J,18E,18G)..TAIW OD=35.2 |
2 | ||
| 90080-21019 |
ZZE12#..TAIW OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90080-21019 |
ZZE12#..(16J,18E,18G)..TAIW OD=35.2 |
2 | ||
| 90080-21019 |
ZZE12#..TAIW OD=35.2 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-02040 |
NZE120,ZZE12#..LHD (L) |
1 | ||
| 45535-32070 |
ZZE12#..TAIW (J) |
1 | ||
| 45535-32070 |
NZE120,ZZE12#..LHD (J) |
1 | ||
| 45535-02040 |
ZZE12#..TAIW (L) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NZE120,ZZE12#..IND,PHL,TAIW,VN |
2 | ||
| 90467-19019 |
ZZE12#..TAIW REFER TO ILLUSTRATION |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NZE120,ZZE12#..IND,PHL,TAIW,VN |
2 | ||
| 90467-19019 |
ZZE12#..TAIW REFER TO ILLUSTRATION |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-32070 |
NZE120,ZZE12#..LHD (J) |
1 | ||
| 45535-32070 |
ZZE12#..TAIW (J) |
1 | ||
| 45535-02040 |
NZE120,ZZE12#..LHD (L) |
1 | ||
| 45535-02040 |
ZZE12#..TAIW (L) |
1 | ||
| Common parts | ||||
| 90119-12379 | ||||
| 90170-14012 | ||||
| 95381-03020 | ||||
| 95381-03025 | ||||
