ZZE121R-GEPDKT (2001)
Toyota Corolla (Asia/India)
(0103- )ZZE121..ATM ; (0107-0311)ATM..IDN
A245E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-12040 |
ZZE121..ATM..TH N=35,MARK 35X29-31 |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12060 |
ZZE121..ATM..TH |
1 | ||
| 35105-12060 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
ZZE121..ATM..TH |
1 | ||
| 90210-13002 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-12010 |
ZZE121..ATM..TH |
1 | ||
| 41039-12010 |
ZZE121..ATM..16E..PHL;ZZE121..ATM..(MA,TAIW,TH) |
2 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41206-12030 |
ZZE121..ATM..TH |
1 | ||
| 41206-12030 |
ZZE121..ATM..TH |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30020 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 90366-30020 |
ZZE121..ATM..TH |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30019 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 90366-30019 |
ZZE121..ATM..TH |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-12190 |
ZZE121..ATM |
1 | ||
| 41221-12190 |
ZZE121..ATM..TH |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
ZZE121..ATM..TH |
8 | ||
| 90101-11353 |
ZZE121..ATM;ZZE122..ATM..IDN |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12050 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
4 | ||
| 41222-12050 |
ZZE121..ATM..TH |
4 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12030 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 41231-12030 |
ZZE121..ATM..TH |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-20150 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 41301-20150 |
ZZE121..ATM..TH |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38028 |
ZZE121..ATM..TH |
1 | ||
| 90366-38028 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42001 |
ZZE121..ATM..TH |
1 | ||
| 90366-42001 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-41028 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.50,MARK D |
1 | ||
| 90201-41027 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.45,MARK C |
1 | ||
| 90201-41031 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.65,MARK G |
1 | ||
| 90201-41025 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.35,MARK A |
1 | ||
| 90201-41029 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.55,MARK E |
1 | ||
| 90201-41026 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.40,MARK B |
1 | ||
| 90201-41035 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.85,MARK L |
1 | ||
| 90201-41034 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.80,MARK K |
1 | ||
| 90201-41042 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.25,MARK T |
1 | ||
| 90201-41024 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.00,MARK V |
1 | ||
| 90201-41039 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.10,MARK Q |
1 | ||
| 90201-41040 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.15,MARK R |
1 | ||
| 90201-41033 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.75,MARK J |
1 | ||
| 90201-41030 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.60,MARK F |
1 | ||
| 90201-41032 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.70,MARK H |
1 | ||
| 90201-41036 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.90,MARK M |
1 | ||
| 90201-41044 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.05,MARK W |
1 | ||
| 90201-41043 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.30,MARK U |
1 | ||
| 90201-41041 |
ZZE121..ATM;ZZE122..ATM..IDN T=2.20,MARK S |
1 | ||
| 90201-41030 |
ZZE121..ATM..TH T=2.60,MARK F |
1 | ||
| 90201-41025 |
ZZE121..ATM..TH T=2.35,MARK A |
1 | ||
| 90201-41028 |
ZZE121..ATM..TH T=2.50,MARK D |
1 | ||
| 90201-41032 |
ZZE121..ATM..TH T=2.70,MARK H |
1 | ||
| 90201-41031 |
ZZE121..ATM..TH T=2.65,MARK G |
1 | ||
| 90201-41029 |
ZZE121..ATM..TH T=2.55,MARK E |
1 | ||
| 90201-41026 |
ZZE121..ATM..TH T=2.40,MARK B |
1 | ||
| 90201-41035 |
ZZE121..ATM..TH T=2.85,MARK L |
1 | ||
| 90201-41034 |
ZZE121..ATM..TH T=2.80,MARK K |
1 | ||
| 90201-41027 |
ZZE121..ATM..TH T=2.45,MARK C |
1 | ||
| 90201-41041 |
ZZE121..ATM..TH T=2.20,MARK S |
1 | ||
| 90201-41040 |
ZZE121..ATM..TH T=2.15,MARK R |
1 | ||
| 90201-41036 |
ZZE121..ATM..TH T=2.90,MARK M |
1 | ||
| 90201-41024 |
ZZE121..ATM..TH T=2.00,MARK V |
1 | ||
| 90201-41042 |
ZZE121..ATM..TH T=2.25,MARK T |
1 | ||
| 90201-41044 |
ZZE121..ATM..TH T=2.05,MARK W |
1 | ||
| 90201-41039 |
ZZE121..ATM..TH T=2.10,MARK Q |
1 | ||
| 90201-41033 |
ZZE121..ATM..TH T=2.75,MARK J |
1 | ||
| 90201-41043 |
ZZE121..ATM..TH T=2.30,MARK U |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
ZZE121..ATM;ZZE122..ATM..IDN |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
ZZE121..ATM;ZZE122..ATM..IDN |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
ZZE121..ATM;ZZE122..ATM..IDN |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
ZZE121..ATM;ZZE122..ATM..IDN |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 90250-06058 |
ZZE12#..IDN,TH |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20060 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 41342-20060 |
ZZE121..ATM..TH |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
2 | ||
| 41351-12020 |
ZZE121..TH |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
2 | ||
| 41351-12020 |
ZZE121..TH |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17010 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=0.95 |
2 | ||
| 41361-17060 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.20 |
2 | ||
| 41361-17020 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.00 |
2 | ||
| 41361-17050 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.15 |
2 | ||
| 41361-17030 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.05 |
2 | ||
| 41361-17040 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.10 |
2 | ||
| 41361-17040 |
ZZE12#..ATM..(IDN,TH) T=1.10 |
2 | ||
| 41361-17010 |
ZZE12#..ATM..(IDN,TH) T=0.95 |
2 | ||
| 41361-17060 |
ZZE12#..ATM..(IDN,TH) T=1.20 |
2 | ||
| 41361-17020 |
ZZE12#..ATM..(IDN,TH) T=1.00 |
2 | ||
| 41361-17030 |
ZZE12#..ATM..(IDN,TH) T=1.05 |
2 | ||
| 41361-17050 |
ZZE12#..ATM..(IDN,TH) T=1.15 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17010 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=0.95 |
2 | ||
| 41361-17060 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.20 |
2 | ||
| 41361-17020 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.00 |
2 | ||
| 41361-17050 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.15 |
2 | ||
| 41361-17030 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.05 |
2 | ||
| 41361-17040 |
ZZE121..ATM;ZZE122..ATM..(IDN,IND) T=1.10 |
2 | ||
| 41361-17040 |
ZZE12#..ATM..(IDN,TH) T=1.10 |
2 | ||
| 41361-17010 |
ZZE12#..ATM..(IDN,TH) T=0.95 |
2 | ||
| 41361-17060 |
ZZE12#..ATM..(IDN,TH) T=1.20 |
2 | ||
| 41361-17020 |
ZZE12#..ATM..(IDN,TH) T=1.00 |
2 | ||
| 41361-17030 |
ZZE12#..ATM..(IDN,TH) T=1.05 |
2 | ||
| 41361-17050 |
ZZE12#..ATM..(IDN,TH) T=1.15 |
2 | ||
| Linked diagrams | ||||

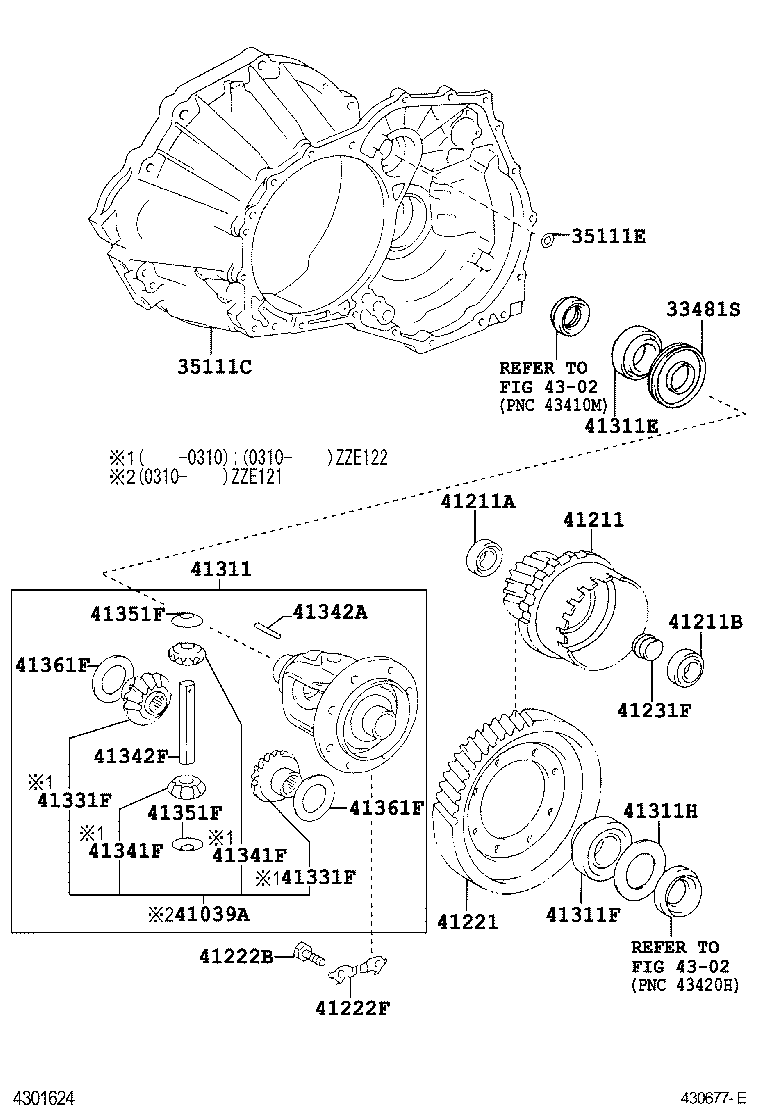

| 4302 | ||||
