ZZE121R-GEPDKT (2001)
Toyota Corolla (Asia/India)
ILLUST NO. 2 OF 2(0103- )ZZE121..ATM ; (0107-0311)ATM..IDN
A245E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
2 | ||
| 35195-12030 |
ZZE121..ATM..TH |
2 | ||
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
2 | ||
| 35195-12030 |
ZZE121..ATM..TH |
2 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-12030 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35196-12030 |
ZZE121..ATM..TH |
1 | ||
| 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 | ||||
| 35197-12030 |
ZZE121..ATM..TH |
1 | ||
| 35197-12030 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-12030 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35847-12030 |
ZZE121..ATM..TH |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12020 |
ZZE121..ATM..TH |
1 | ||
| 35882-12020 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35899 - TUBE, GOVERNOR PRESSURE | ||||
| 35899-12040 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35899-12040 |
ZZE121..ATM..TH |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 91611-G0612 | ||||

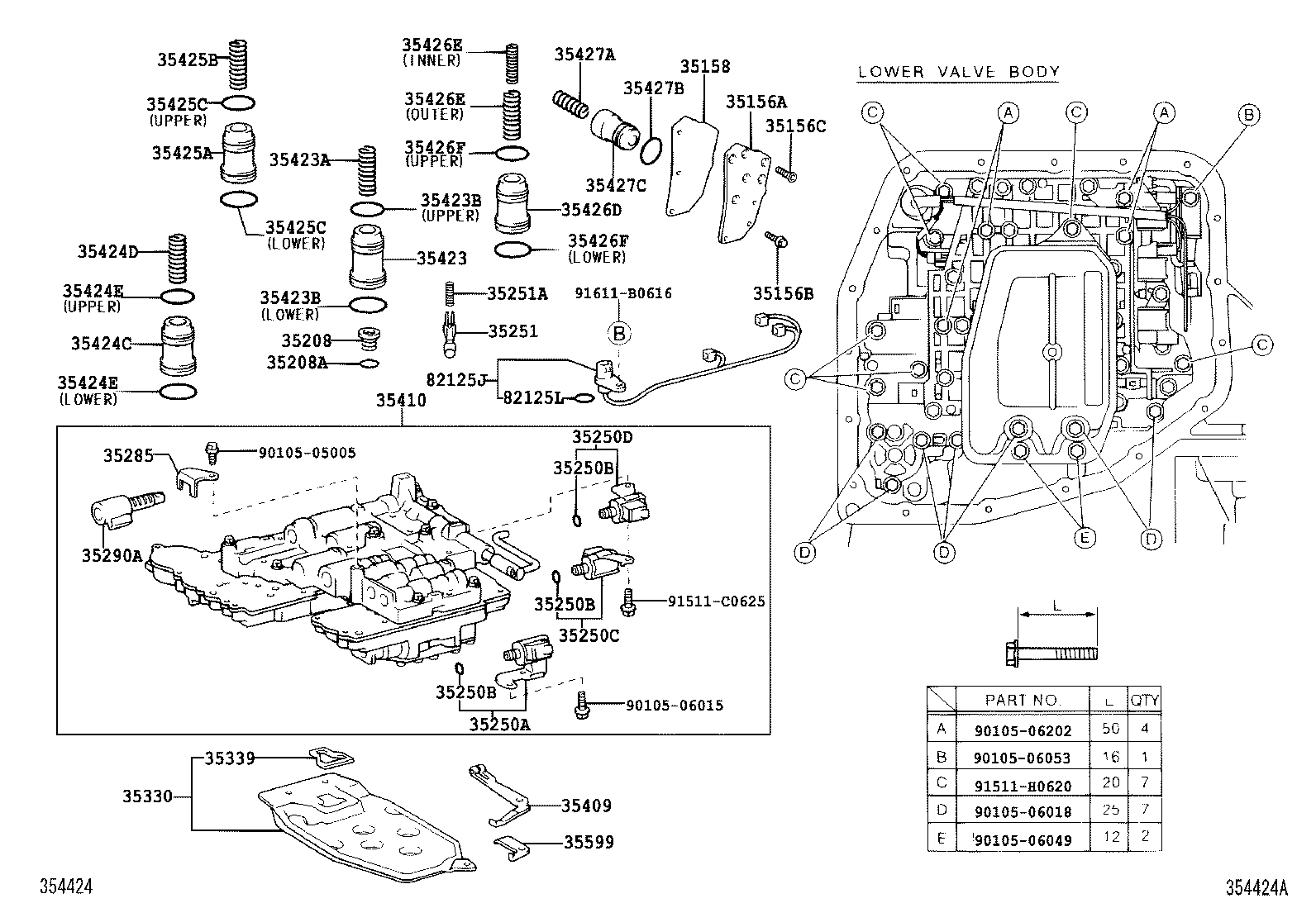

ILLUST NO. 1 OF 2(0103- )ZZE121..ATM ; (0107-0311)ATM..IDN
A245E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35108-12020 |
ZZE121..ATM..TH |
1 | ||
| 35108-12020 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
ZZE121..ATM;ZZE122..ATM..IDN |
2 | ||
| 90105-06049 |
ZZE121..ATM..TH |
2 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
7 | ||
| 90149-60041 |
ZZE121..ATM..TH |
7 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-12020 |
ZZE121..ATM..TH |
1 | ||
| 35158-12020 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35205-12010 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35205-12010 |
ZZE121..ATM..TH |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 90521-22004 |
ZZE121..ATM..TH |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-12030 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35250-12030 |
ZZE121..ATM..TH |
1 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
3 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
3 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
3 | ||
| 35250C - SOLENOID ASSY, TRANSMISSION NO.1 | ||||
| 35250-12010 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35250-12010 |
ZZE121..ATM..TH |
1 | ||
| 35250D - SOLENOID ASSY, TRANSMISSION NO.2 | ||||
| 35250-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35250-12020 |
ZZE121..ATM..TH |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35251-30020 |
ZZE121..ATM..TH |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ZZE121..ATM..TH |
1 | ||
| 90501-03005 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-12020 |
ZZE121..ATM..TH |
1 | ||
| 35285-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-12020 |
ZZE121..ATM..TH |
1 | ||
| 35290-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12040 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35330-12040 |
ZZE121..ATM..TH |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12020 |
ZZE121..ATM..TH |
1 | ||
| 35339-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-12030 |
ZZE121..ATM..16E..PHL;ZZE121..ATM..(MA,TAIW,TH) |
1 | ||
| 35409-12060 |
ZZE121..ATM..TH |
1 | ||
| 35409-12030 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12691 |
ZZE121..ATM..16E..PHL;ZZE121..ATM..(MA,TAIW,TH) |
1 | ||
| 35410-12690 |
ZZE121..ATM |
1 | ||
| 35410-12691 |
ZZE121..ATM |
1 | ||
| 35410-12840 |
ZZE121..ATM..TH |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-12020 |
ZZE121..ATM..TH |
1 | ||
| 35423-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-22034 |
ZZE121..ATM..TH |
1 | ||
| 90501-22034 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
ZZE121..ATM..TH UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-21012 |
ZZE121..ATM;ZZE122..ATM..IDN UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
ZZE121..ATM..TH UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-21012 |
ZZE121..ATM;ZZE122..ATM..IDN UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-12050 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35424-12050 |
ZZE121..ATM..TH |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22058 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 90501-22058 |
ZZE121..ATM..TH |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
ZZE121..ATM..TH;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-23010 |
ZZE121..ATM..TH UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 90301-23010 |
ZZE121..ATM..TH;ZZE122..ATM..IDN UPPER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
ZZE121..ATM..TH;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-23010 |
ZZE121..ATM..TH UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 90301-23010 |
ZZE121..ATM..TH;ZZE122..ATM..IDN UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12050 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35425-12050 |
ZZE121..ATM..TH |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24028 |
ZZE121..ATM |
1 | ||
| 90501-24028 |
ZZE121..ATM..TH |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
ZZE121..ATM;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 90301-26012 |
ZZE121..ATM..TH UPPER |
1 | ||
| 90301-26012 |
ZZE121..ATM;ZZE122..ATM..IDN UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
ZZE121..ATM;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 90301-26012 |
ZZE121..ATM..TH UPPER |
1 | ||
| 90301-26012 |
ZZE121..ATM;ZZE122..ATM..IDN UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35423-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 35423-12020 |
ZZE121..ATM..TH |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23129 |
ZZE121..ATM;ZZE122..ATM..IDN OUTER |
1 | ||
| 90501-20134 |
ZZE121..ATM;ZZE122..ATM..IDN INNER |
1 | ||
| 90501-23129 |
ZZE121..ATM..TH OUTER |
1 | ||
| 90501-20134 |
ZZE121..ATM..TH INNER |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23129 |
ZZE121..ATM;ZZE122..ATM..IDN OUTER |
1 | ||
| 90501-20134 |
ZZE121..ATM;ZZE122..ATM..IDN INNER |
1 | ||
| 90501-23129 |
ZZE121..ATM..TH OUTER |
1 | ||
| 90501-20134 |
ZZE121..ATM..TH INNER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
ZZE121..ATM;ZZE122..ATM..IDN UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 90301-21012 |
ZZE121..ATM..TH UPPER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
ZZE121..ATM;ZZE122..ATM..IDN UPPER |
1 | ||
| 90301-29011 |
ZZE121..ATM;ZZE122..ATM..IDN LOWER |
1 | ||
| 90301-29011 |
ZZE121..ATM..TH LOWER |
1 | ||
| 90301-21012 |
ZZE121..ATM..TH UPPER |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-23126 |
ZZE121..ATM..TH |
1 | ||
| 90501-26078 |
ZZE121..ATM |
1 | ||
| 90501-23126 |
ZZE121..ATM..TH |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 90301-21012 |
ZZE121..ATM..TH |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-12020 |
ZZE121..ATM..TH;ZZE122..ATM..IDN |
1 | ||
| 35427-12020 |
ZZE121..ATM..TH |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-12040 |
ZZE121..ATM..TH |
1 | ||
| 35599-12020 |
ZZE121..ATM..16E..PHL;ZZE121..ATM..(MA,TAIW,TH) |
1 | ||
| 35599-12020 |
ZZE121..ATM;ZZE122..ATM..IDN |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-12380 |
ZZE122..ATM..IDN;ZZE121..16J..TAIW;ZZE121..ATM..(MA,PHL,TH) |
1 | ||
| 82125-12380 |
ZZE121..ATM..TH |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ZZE12#..ATM..(IDN,TH) |
1 | ||
| 90301-21009 |
ZZE12#..ATM..(IDN,TH) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06015 | ||||
| 90105-06018 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06202 | ||||
| 91511-C0625 | ||||
| 91511-H0620 | ||||
| 91611-B0616 | ||||
