ZZE121R-GEMRKT (2001)
Toyota Corolla (Asia/India)

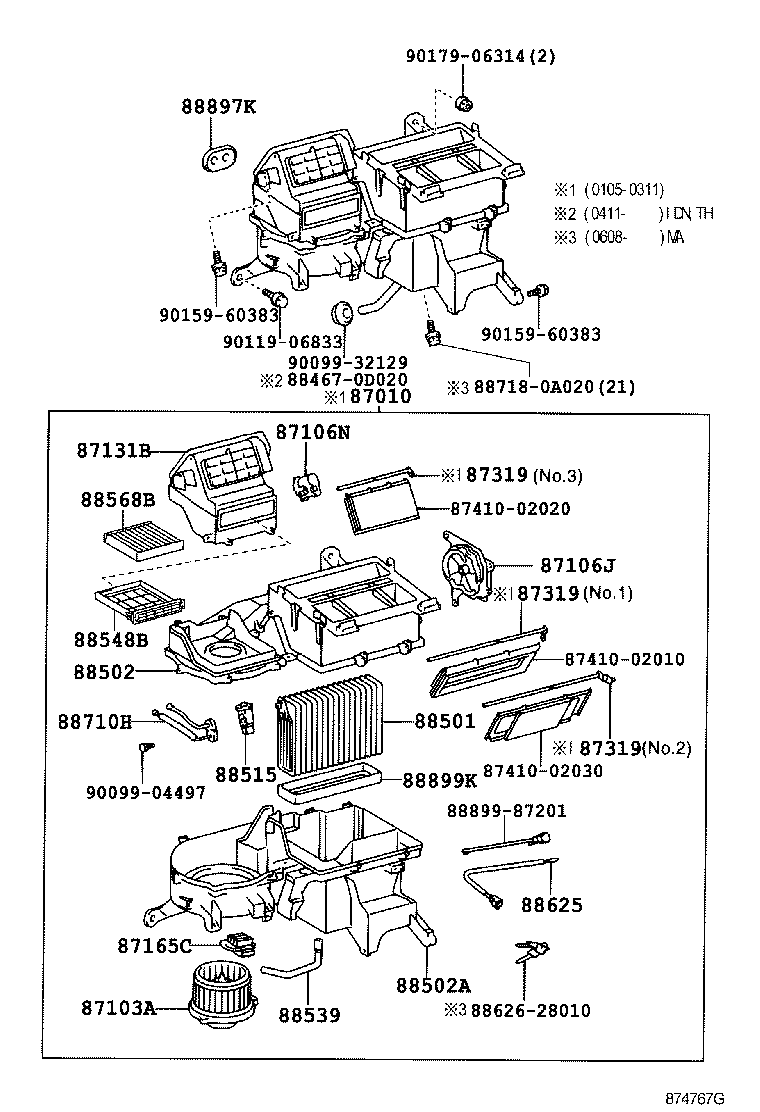

ILLUST NO. 1 OF 2(0105-0801)IDN,TH ; (0107- )MA
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-02100 |
ZZE121..16 |
1 | ||
| 87010-02100 |
ZZE121..16 |
1 | ||
| 87010-02120 |
ZZE12#..TH AUTO AIR CONDITIONER |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-02090 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 87103-02090 |
ZZE12#..IDN,MA,TH |
1 | ||
| 87131B - CASE, HEATER BLOWER | ||||
| 87131-02050 |
ZZE121..16 |
1 | ||
| 87131-02050 |
ZZE121..16 |
1 | ||
| 87319 - SHAFT SUB-ASSY, AIR CONDITIONER | ||||
| 87319-02040 |
ZZE121..16 NO.1 |
1 | ||
| 87319-02050 |
ZZE121..16 NO.3 |
1 | ||
| 87319 - SHAFT SUB-ASSY, AIR CONDITIONER | ||||
| 87319-02040 |
ZZE121..16 NO.1 |
1 | ||
| 87319-02050 |
ZZE121..16 NO.3 |
1 | ||
| 87319 - SHAFT SUB-ASSY, AIR CONDITIONER | ||||
| 87319-02040 |
ZZE121..16 NO.1 |
1 | ||
| 87319-02050 |
ZZE121..16 NO.3 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02070 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88501-02070 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 87111-02040 |
ZZE121..16 |
1 | ||
| 87111-02040 |
ZZE121..16 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 87111-02050 |
ZZE121..16 |
1 | ||
| 87111-02050 |
ZZE121..16 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02080 |
ZZE12#..TH |
1 | ||
| 88515-02080 |
ZZE12#..IDN,TH |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-02090 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88539-02090 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88568B - FILTER, AIR | ||||
| 87139-02100 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88568-52010 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60140 |
ZZE12#..IDN,TH |
1 | ||
| 88625-60140 |
ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-02330 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 88710-02330 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
ZZE12#..IDN,TH |
1 | ||
| 90480-01434 |
NZE120,ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-02130 |
ZZE12#..IDN,MA,TH |
1 | ||
| Common parts | ||||
| 87410-02010 | ||||
| 87410-02020 | ||||
| 87410-02030 | ||||
| 88467-0D020 | ||||
| 88626-28010 | ||||
| 88718-0A020 | ||||
| 88899-87201 | ||||
| 90099-04497 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||

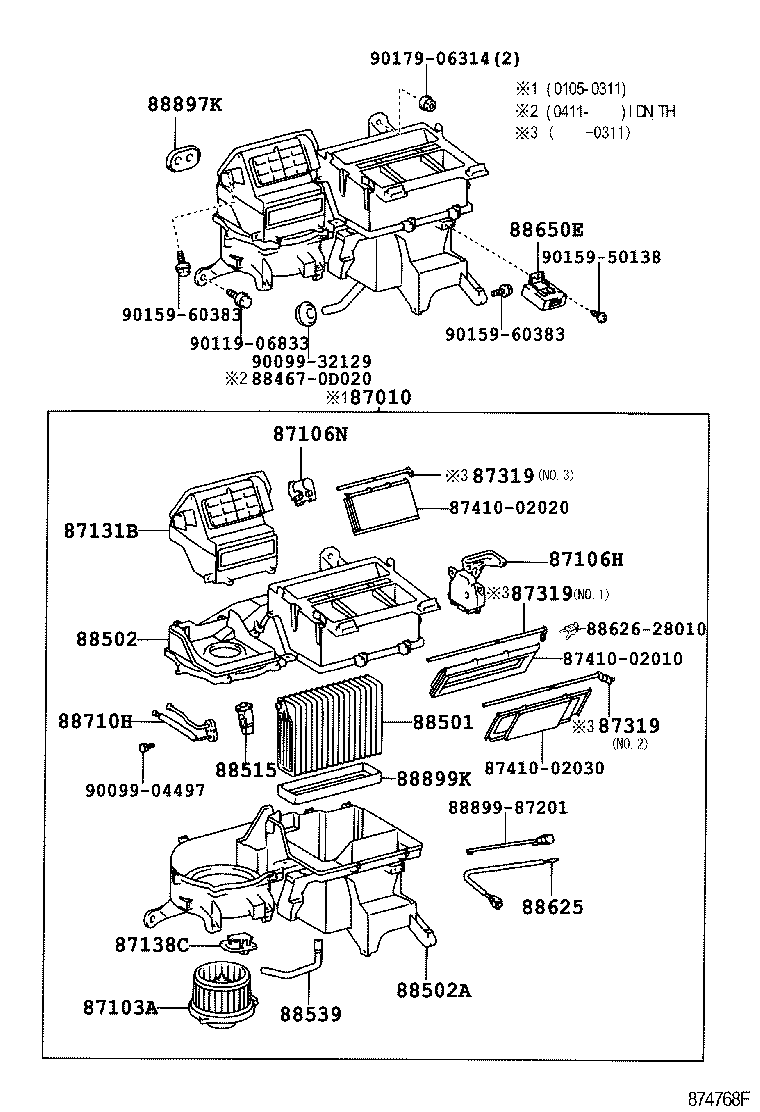

ILLUST NO. 1 OF 2(0105-0801)IDN,TH ; (0107- )MA
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-02100 |
ZZE121..16 |
1 | ||
| 87010-02100 |
ZZE121..16 |
1 | ||
| 87010-02120 |
ZZE12#..TH AUTO AIR CONDITIONER |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-02090 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 87103-02090 |
ZZE12#..IDN,MA,TH |
1 | ||
| 87131B - CASE, HEATER BLOWER | ||||
| 87131-02050 |
ZZE121..16 |
1 | ||
| 87131-02050 |
ZZE121..16 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20350 |
ZZE121..TH |
1 | ||
| 87138-20350 |
ZZE12#..(16,16E,16J,18J)..(IDN,TH) MANUAL AIR CONDITIONER |
1 | ||
| 87319 - SHAFT SUB-ASSY, AIR CONDITIONER | ||||
| 87319-02040 |
ZZE121..16 NO.1 |
1 | ||
| 87319-02050 |
ZZE121..16 NO.3 |
1 | ||
| 87319 - SHAFT SUB-ASSY, AIR CONDITIONER | ||||
| 87319-02040 |
ZZE121..16 NO.1 |
1 | ||
| 87319-02050 |
ZZE121..16 NO.3 |
1 | ||
| 87319 - SHAFT SUB-ASSY, AIR CONDITIONER | ||||
| 87319-02040 |
ZZE121..16 NO.1 |
1 | ||
| 87319-02050 |
ZZE121..16 NO.3 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02070 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88501-02070 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 87111-02040 |
ZZE121..16 |
1 | ||
| 87111-02040 |
ZZE121..16 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 87111-02050 |
ZZE121..16 |
1 | ||
| 87111-02050 |
ZZE121..16 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02080 |
ZZE12#..TH |
1 | ||
| 88515-02080 |
ZZE12#..IDN,TH |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-02090 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88539-02090 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60140 |
ZZE12#..IDN,TH |
1 | ||
| 88625-60140 |
ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-02300 |
ZZE12#..(16,16E,16J,18J)..(IDN,TH) |
1 | ||
| 88650-12A50 |
ZZE12#..(16,16E,16J,18J)..(IDN,TH) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-02330 |
ZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH |
1 | ||
| 88710-02330 |
ZZE12#..IDN,MA,TH |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
ZZE12#..IDN,TH |
1 | ||
| 90480-01434 |
NZE120,ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-02130 |
ZZE12#..IDN,MA,TH |
1 | ||
| Common parts | ||||
| 87410-02010 | ||||
| 87410-02020 | ||||
| 87410-02030 | ||||
| 88467-0D020 | ||||
| 88626-28010 | ||||
| 88899-87201 | ||||
| 90099-04497 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90159-50138 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
