ZZE121R-GEMDKT (2001)

Toyota Corolla (Asia/India)

Production May 2001 - Jan 2008
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0211)16,18J,J ; (0105-0211)MTM..16J..PHL ;(0211- )MTM..16J..PHL ; (0211-

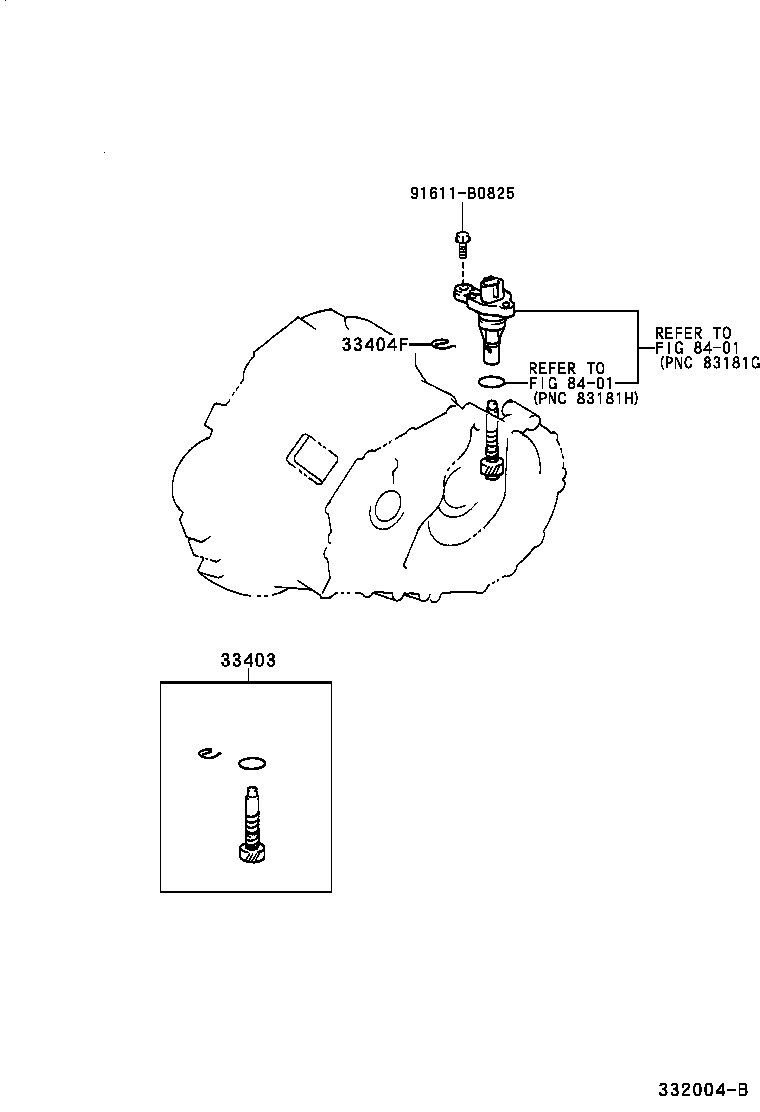

Click highlighted areas on diagram

C52,C150

diagram 33403 33404F 8401 8401 91611B0825
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29395

ZZE12#..MTM..(16,16E,16J,18J)..(IDN,TH)

N=29,MARK 29:35

 1
33403-29395

ZZE12#..16,18J;ZZE121..MTM..16J..PHL

N=29,MARK 29:35

 1
33403-29395

ZZE12#..MTM..(16,16E,16J,18J)..(IDN,TH)

N=29,MARK 29:35

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

ZZE121..MTM..16J..PHL;NZE120,ZZE12#..16,18J,J

 1
90468-12005

ZZE12#..MTM..(16,16E,16J,18J)..(IDN,TH)

 1
90468-12005

ZZE12#..MTM..(16,16E,16J,18J)..(IDN,TH)

 1
Common parts
91611-B0825
Linked diagrams
8401
