ZZE121L-GEPNKR (2001)

Toyota Corolla (Asia/India)

Production Mar 2001 - Nov 2002
Engine 3ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

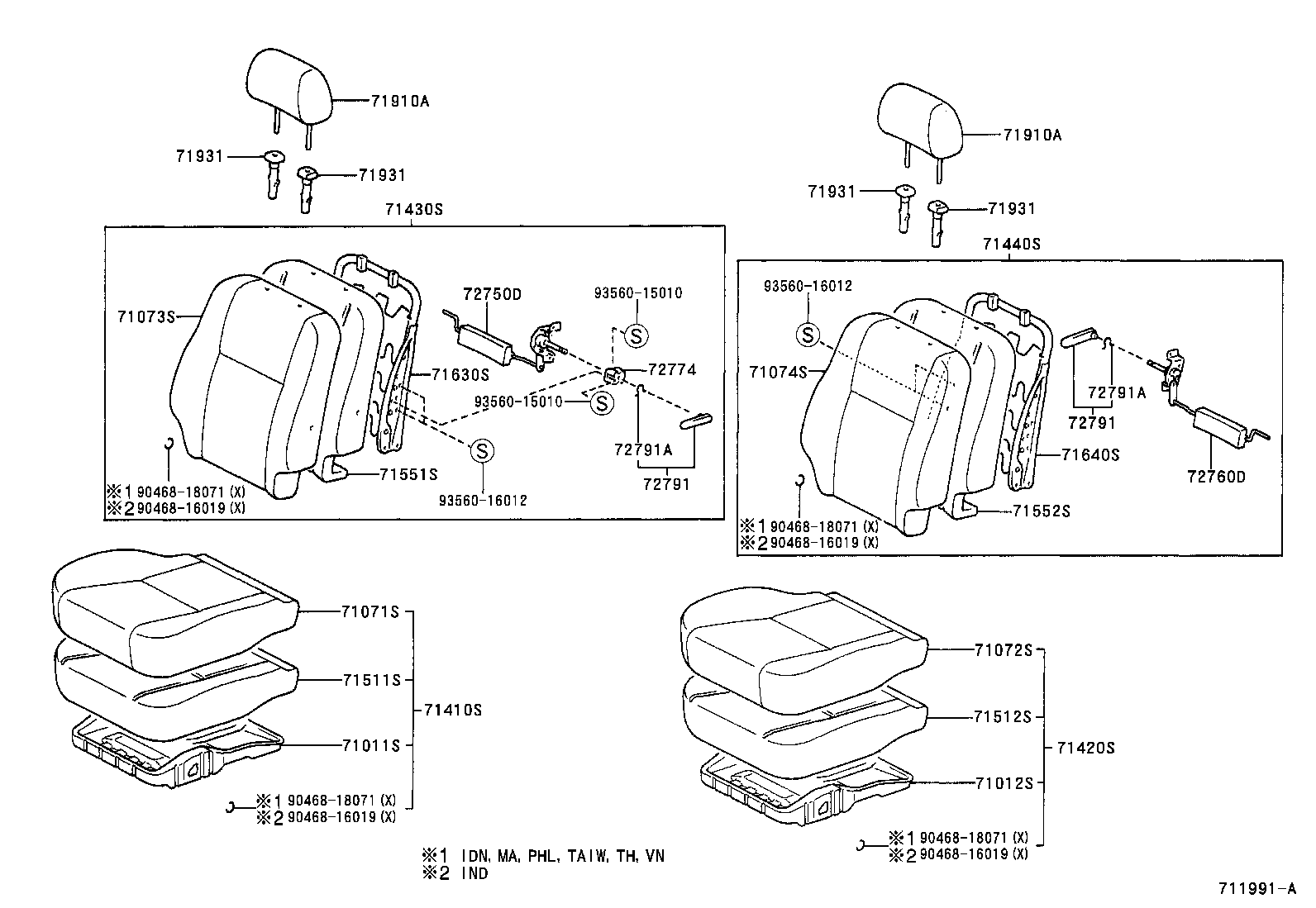

ILLUST NO. 1 OF 2(0103- )IDN,MA,PHL,TAIW,TH,VN

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71630S 71640S 71910A 71910A 71931 71931 71931 71931 72750D 72760D 72774 72791 72791 72791A 72791A 9046816019 9046816019 9046816019 9046816019 9046818071 9046818071 9046818071 9046818071 9356015010 9356015010 9356016012 9356016012
Part # Description Qty Price
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-02490A0

ZZE12#..16E,18E,18G

IVORY,TRIM0#

 1
71410-02490B1

ZZE12#..16E,18E,18G

STONE,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02100

ZZE12#..16E,18E,18G

 1
71511-02100

ZZE121..(16E,16G)..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE122..MTM..(18G,18J)..(IND,VN)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-02090

ZZE12#..16E,18E,18G

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02100

ZZE121..16E..PHL;ZZE122..(18E,18G)..(IND,VN);ZZE12#..(16,16G,16J,18J)..(IDN,PHL,TAIW,TH)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02050

ZZE12#..(16E,18G)..(PHL,VN);ZZE12#..(16,16G,16J,18J)..(IDN,PHL,TAIW,TH)

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02050A0

ZZE121..16E..TAIW

W(LOCK),IVORY,TRIM0#

 2
71930-02050B0

ZZE12#..(16E,18G)..TAIW

W(LOCK),STONE,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02050A0

ZZE121..16E..TAIW

W(LOCK),IVORY,TRIM0#

 2
71930-02050B0

ZZE12#..(16E,18G)..TAIW

W(LOCK),STONE,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02050A0

ZZE121..16E..TAIW

W(LOCK),IVORY,TRIM0#

 2
71930-02050B0

ZZE12#..(16E,18G)..TAIW

W(LOCK),STONE,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02050A0

ZZE121..16E..TAIW

W(LOCK),IVORY,TRIM0#

 2
71930-02050B0

ZZE12#..(16E,18G)..TAIW

W(LOCK),STONE,TRIM1#

 2
Common parts
90468-16019
90468-18071
93560-15010
93560-16012

ILLUST NO. 2 OF 2(0103-0301) ; (0301-0310)IDN,MA,PHL,TAIW,TH,VN ;(0310-0311)IDN,MA,PHL,TH,VN ; (031

Click highlighted areas on diagram

NORMAL ADJUSTER

diagram 71811D 71812D 71861 71861B 71862 71862B 71873 71874 71875F 71875G 71876F 71876G 72011 72012 72021 72022 72127A 72128A 72157A 72158 72211 72501D 72501E 72525B 72526 9011910921 9011910921 9011910921 90119T0001 90119T0001 90119T0001 91511B0816 9151581025 9151581025 9356014008
Part # Description Qty Price
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161B3

ZZE121..16E..TAIW

STONE,TRIM1#

 1
90467-07161A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010B2

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,THAILAND SPEC

 1
71862-02030B0

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,TAIWAN SPEC

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
90467-07161B3

ZZE121..16E..TAIW

STONE,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02010B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
71873-02010A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02010B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
71874-02010A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-02070

ZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-02070

ZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-02020B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
72127-02020A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-02020A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72127-02020B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02030A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72157-02030B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02030B0

ZZE12#..LHD..(16E,18G);NZE120,ZZE121..16,16G,16J,J

STONE,TRIM1#

 1
72158-02030A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010S0

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,TAIWAN SPEC

 1
72526-0A010B2

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,THAILAND SPEC

 1
Common parts
90119-10921
90119-T0001
91511-B0816
91515-81025
93560-14008

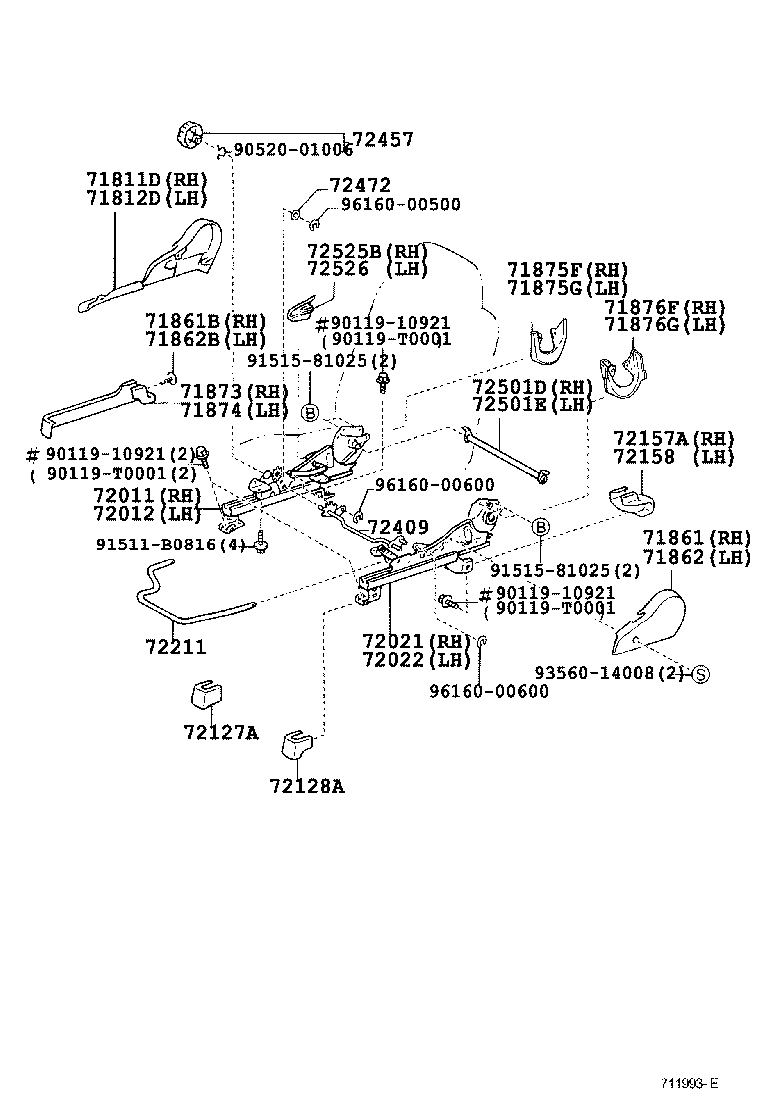

ILLUST NO. 2 OF 2(0103- )IDN,MA,PHL,TAIW,TH,VN

Click highlighted areas on diagram

VERTICAL ADJUSTER

diagram 71811D 71812D 71861 71861B 71862 71862B 71873 71874 71875F 71875G 71876F 71876G 72011 72012 72021 72022 72127A 72128A 72157A 72158 72211 72409 72457 72472 72501D 72501E 72525B 72526 9011910921 9011910921 9011910921 90119T0001 90119T0001 90119T0001 9052001006 91511B0816 9151581025 9151581025 9356014008 9616000500 9616000600 9616000600
Part # Description Qty Price
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161B3

ZZE121..16E..TAIW

STONE,TRIM1#

 1
90467-07161A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010B2

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,THAILAND SPEC

 1
71862-02030B0

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,TAIWAN SPEC

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
90467-07161B3

ZZE121..16E..TAIW

STONE,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02010B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
71873-02010A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02010B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
71874-02010A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-02070

ZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-02070

ZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-02020B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
72127-02020A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-02020A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72127-02020B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02030A0

ZZE121..16E..TAIW

IVORY,TRIM0#

 1
72157-02030B0

ZZE121..16E..TAIW

STONE,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02030B0

ZZE12#..LHD..(16E,18G);NZE120,ZZE121..16,16G,16J,J

STONE,TRIM1#

 1
72158-02030A0

ZZE12#..(16E,18E,18G,18J)..(IDN,IND,MA,TAIW,TH)

IVORY,TRIM0#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010S0

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,TAIWAN SPEC

 1
72526-0A010B2

ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J

STONE,TRIM1#,THAILAND SPEC

 1
Common parts
90119-10921
90119-T0001
90520-01006
91511-B0816
91515-81025
93560-14008
96160-00500
96160-00600
