ZZE121L-GEPEKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Jan 2004
Engine 3ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )ZZE121..ATM ; (0107-0311)ATM..IDN

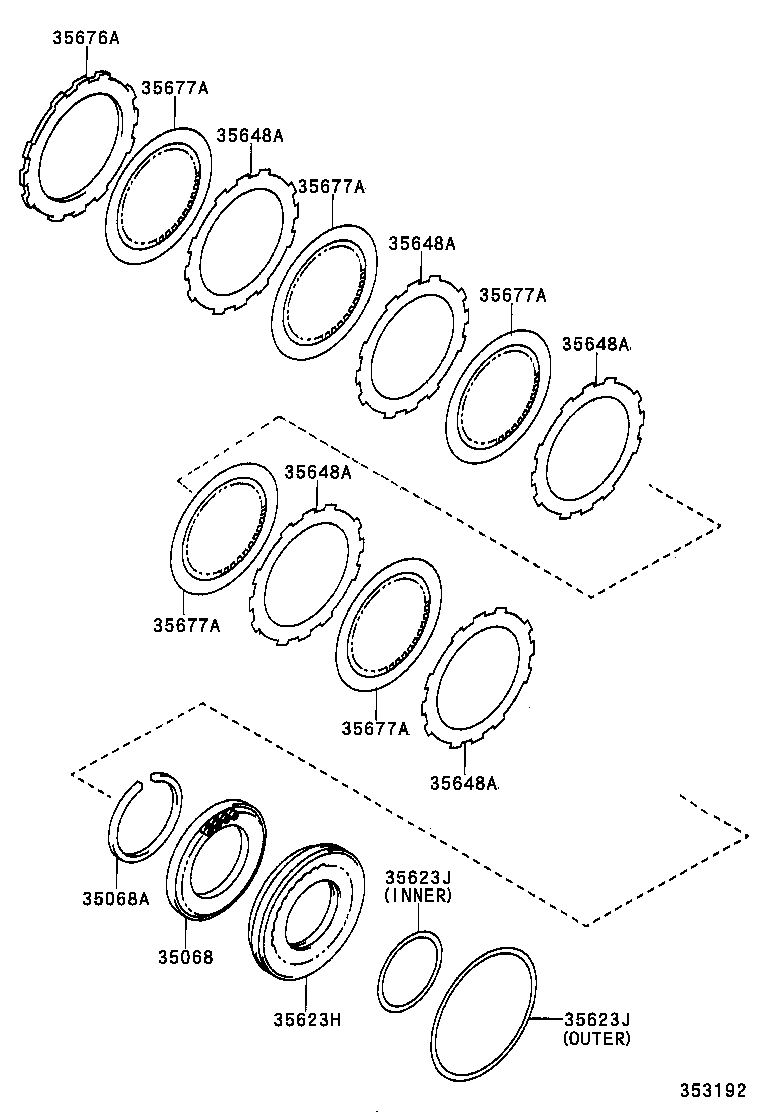

Click highlighted areas on diagram

A245E

diagram 35068 35068A 35623H 35623J 35623J 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-12010

ZZE121..ATM;ZZE122..ATM..IDN

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-90001

ZZE121..ATM..(MA,PHL)

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-20020

ZZE121..ATM..(MA,PHL)

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99131

ZZE121..ATM..(MA,PHL)

INNER

 1
90301-94004

ZZE121..ATM..(MA,PHL)

OUTER

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99131

ZZE121..ATM..(MA,PHL)

INNER

 1
90301-94004

ZZE121..ATM..(MA,PHL)

OUTER

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-12020

ZZE121..ATM..(MA,PHL)

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-12020

ZZE121..ATM..(MA,PHL)

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-12020

ZZE121..ATM..(MA,PHL)

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-12020

ZZE121..ATM..(MA,PHL)

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-12020

ZZE121..ATM..(MA,PHL)

 5
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-12030

ZZE121..ATM..(MA,PHL)

T=3.5

 1
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12080

ZZE121..ATM..(MA,PHL)

 5
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12080

ZZE121..ATM..(MA,PHL)

 5
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12080

ZZE121..ATM..(MA,PHL)

 5
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12080

ZZE121..ATM..(MA,PHL)

 5
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-12080

ZZE121..ATM..(MA,PHL)

 5
