ZZE121L-GEPEKM (2001)
Toyota Corolla (Asia/India)
Production
Jul 2001
-
Jan 2004
Engine
3ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

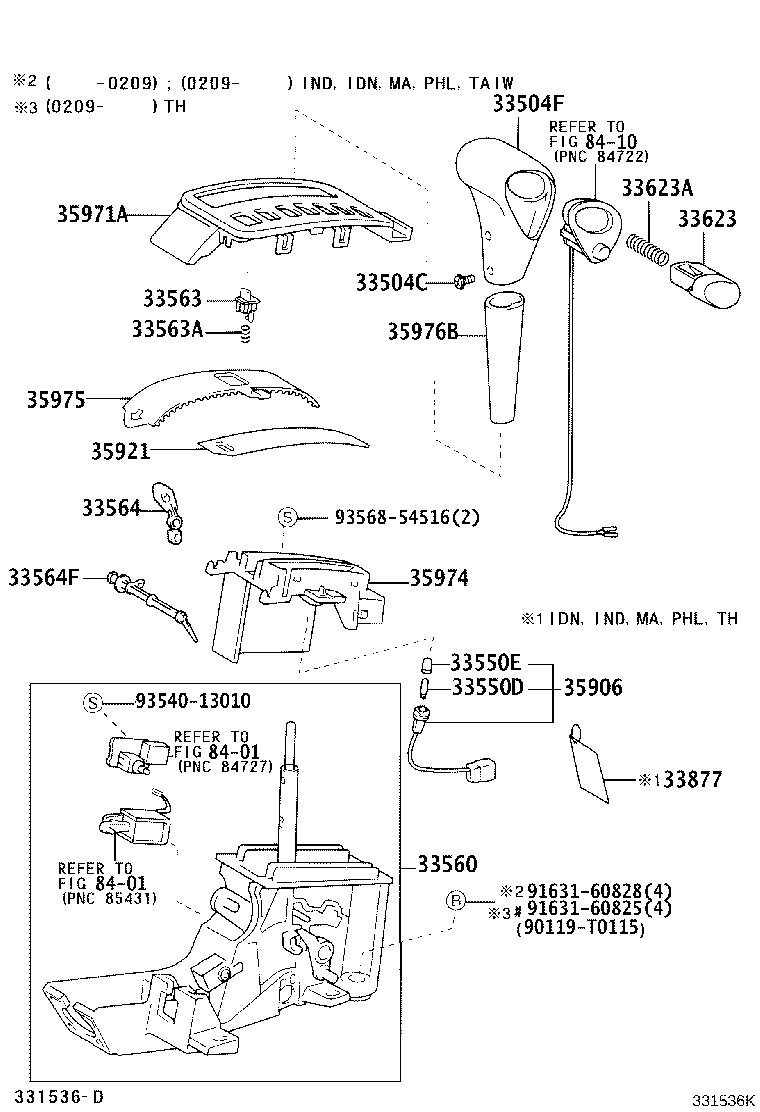

ILLUST NO. 1 OF 2(0103- )ZZE121..ATM ; (0107-0311)ATM..IDN,IND; (0311- )18G..IND
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
ZZE121..ATM..(MA,PHL) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12320B0 |
ZZE121..ATM..16E..PHL;ZZE121..LHD..ATM..(16G,16J) DK.GRAY,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-74010 |
ZZE121..LHD..ATM;ZZE122..18G..IND 12V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-52030 |
ZZE121..LHD..ATM;ZZE122..18G..IND |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-12110 |
ZZE121..ATM..PHL |
1 | ||
| 33560-12111 |
ZZE121..ATM..PHL |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-12210 |
ZZE121..ATM..PHL |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05055 |
ZZE121..ATM..PHL |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-12140 |
ZZE121..ATM..PHL |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12180B0 |
ZZE121..ATM..16E..PHL;ZZE121..LHD..ATM..(16G,16J) DK.GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06082 |
ZZE121..ATM..PHL |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
ZZE12#..ATM..(MA,PHL) |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12210 |
ZZE121..ATM..PHL |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12550 |
ZZE121..ATM..PHL |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12490 |
ZZE121..ATM..PHL |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12250 |
ZZE121..ATM..PHL |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12300 |
ZZE121..ATM..PHL |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-12130B0 |
ZZE121..ATM..16E..PHL;ZZE121..LHD..ATM..(16G,16J) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-T0115 | ||||
| 91631-60825 | ||||
| 91631-60828 | ||||
| 93540-13010 | ||||
| 93568-54516 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
